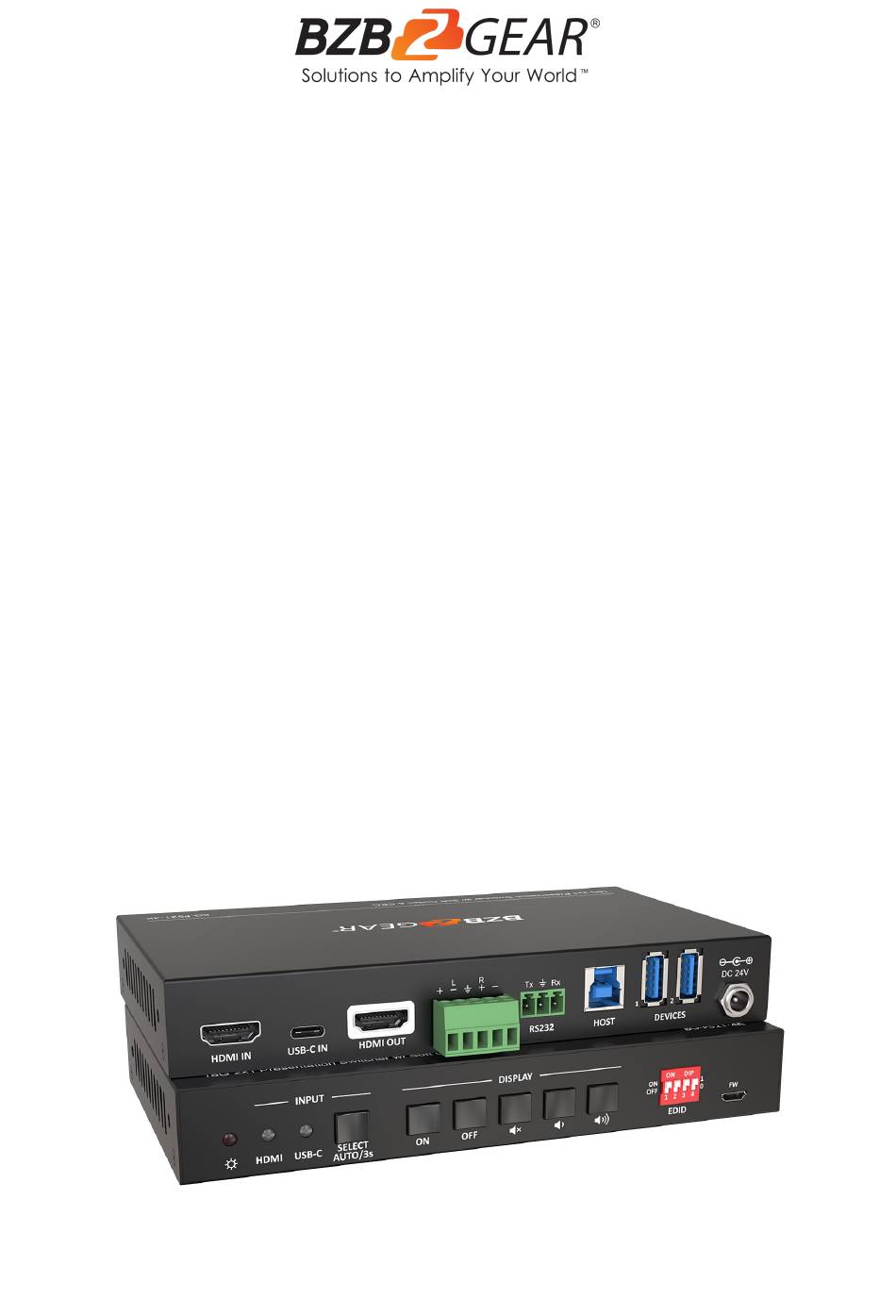

- Page 1 BG-PS21-4K 2-Port 4K 18Gbps UHD KVM Presentation Switcher with HDMI/USB-C Inputs and HDMI Output User Manual...
- Page 2 BZBGEAR BG-PS21-4K PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-PS21-4K PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Button Control RS232 Control Troubleshooting & Maintenance Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-PS21-4K is designed to switch an HDMI input or USB-C input to one HDMI output. It supports video resolutions up to 4K2K@60Hz 4:4:4 8bit, 1080p, and 3D. In addition, there are smart built-in EDID settings that can be selected by using the 4-pin DIP switch on the front panel. -
Page 6: Technical Specifications
BZBGEAR BG-PS21-4K PRODUCT MANUAL Technical Specifications Video Video Input (1) HDMI, (1) USB-C Video Input Connector (1) Type-A female HDMI, (1) Type-C USB HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit USB-C Input Resolution Up to 4Kx2K@30Hz 4:4:4 Video Output... -
Page 7: Operation Controls And Functions
BZBGEAR BG-PS21-4K PRODUCT MANUAL Operation Controls and Functions Front Panel 1. Power LED: LED will illuminate red when the device is connected to the power supply. 2. HDMI Input LED: This LED will illuminate green when the HDMI input is selected in AUTO mode, or will illuminate orange when the HDMI input is selected in MANUAL mode. - Page 8 BZBGEAR BG-PS21-4K PRODUCT MANUAL Rear Panel 12. HDMI IN: HDMI port to connect HDMI input source. 13. USB-C IN: USB Type-C input that provides 40 watts of charging for connected sources. 14. HDMI OUT: HDMI port to connect to an HDMI output video display.
-
Page 9: Button Control
BZBGEAR BG-PS21-4K PRODUCT MANUAL Button Control Manual-Switching When the switcher is in manual switching mode, press the SELECT AUTO/3s button repeatedly to cycle through the two video inputs, and the corresponding source LED illuminates orange immediately. Auto-Switching Press and hold the SELECT AUTO/3s button for at least three seconds to enable automatic switching. - Page 10 BZBGEAR BG-PS21-4K PRODUCT MANUAL within the setting time (default 10mins), automatically send RS232 and CEC commands to turn off the display device. The RS232 command can be set by sending commands, please refer to the Third-party Device Control for more details EDID Setting The Extended Display Identification Data (EDID) is used for the source device to match its...
-
Page 11: Rs232 Control
BZBGEAR BG-PS21-4K PRODUCT MANUAL RS232 Control Connect the RS232 port to a control device (e.g. PC) with a RS232 cable. The switcher can be controlled by sending RS232 commands. RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8... - Page 12 BZBGEAR BG-PS21-4K PRODUCT MANUAL User-defined EDID There are five EDID values that can be customized by sending the below command. Command: #UPLOAD_USER_EDID [PARAM] Function & Operation: [PARAM]=1~5, represents the EDID, its DIP switch status shows as below: [PARAM] DIP Switch Status...
- Page 13 BZBGEAR BG-PS21-4K PRODUCT MANUAL CEC/RS232 Function Setting The ending mark of command is “<CR><LF>”. Command Function Command & Feedback Example #SET_SYNCACT_CEC 1 Enable the function of automatically sending CEC @SYNCACT_CEC 1 commands. When detecting a video input signal or not detecting...
- Page 14 BZBGEAR BG-PS21-4K PRODUCT MANUAL Third-party Device Control Connect a third-party device (e.g. projector) to the RS232 port of switcher, the third-party device can be controlled simultaneously by the below RS232 commands while press the front panel button (ON, OFF, MUTE, VOLUME + or VOLUME -).
- Page 15 BZBGEAR BG-PS21-4K PRODUCT MANUAL Command Description Command & Feedback Example 03 - 19200 04 - 9600 05 - 4800 06 - 2400 ● [PARAM2] = 00~99. The delay time of sending command. XXXX: Any HEX code (0-9, A-F; up to 20 bytes. It must have a blank between 2 different XX).
-
Page 16: Troubleshooting & Maintenance
BZBGEAR BG-PS21-4K PRODUCT MANUAL Command Description Command & Feedback Example #SET_H_AD_[PARAM1]_ Set the HEX RS232 command XX XX to be sent to #SET_H_AD_05_30:41 42 [PARAM2]:XX XX control the third-party device when the VOLUME 43 44 45 DOWN button is pressed. -
Page 17: Application Example
BZBGEAR BG-PS21-4K PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 18: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 19: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 20: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
