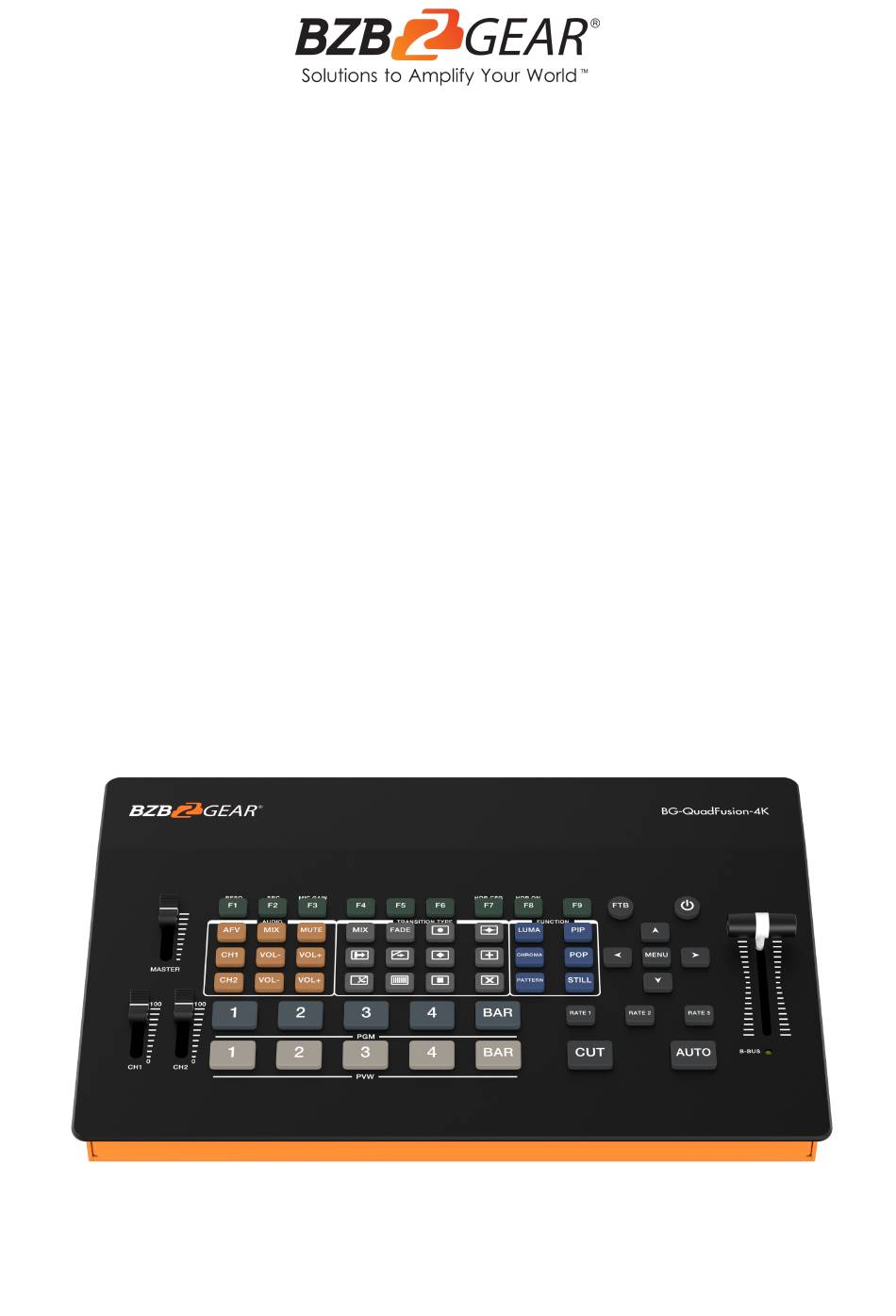

- Page 1 BG-QuadFusion-4K 4-Channel 4K UHD HDMI & DisplayPort Production Switcher with Built-in Audio Mixer & USB 3.0 Capture Card User Manual...
- Page 2 BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Package Contents Specifications Panel Descriptions Tally/GPI Pinout Multiview Window Button Descriptions Main Menu / System Settings PC QuadFusion Control Application Application Example Tech Support Warranty Mission Statement Copyright ·... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PC control application for remote network control ensure ease of use. With the BG-QuadFusion-4K at hand, users can make the most out of their video productions in studios or mobile, on-location, video production environments. -
Page 6: Package Contents
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Package Contents ● 1 x BG-QuadFusion-4K ● 1 x User Manual ● 1 x Power Adapter (12V DC) ● 1x 3ft USB 3.0 Type-B to Type-A cable Specifications Technical Specifications Input Connections 4x HDMI 1x DisplayPort... - Page 7 BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Line In / Out 3.5mm stereo mini Audio 2x 3.5mm stereo mini Mechanical Specifications Dimensions(W x D x H) 284mm x 175mm x 60mm Working Humidity 20%-70%RH Operating Temperature 32°F to 122°F (0°C to 50°C) Storage Temperature -4°F to 167°F (-20°C to 75°C)
-
Page 8: Panel Descriptions
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Panel Descriptions Name Description Line Out 3.5mm stereo line level output for audio extraction. Line In 3.5mm stereo line level input for audio embedding. MIC Inputs 1/2 2x 3.5mm stereo mini microphone inputs for audio embedding. -
Page 9: Tally/Gpi Pinout
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Tally/GPI Pinout Tally Function GPI Function PGM-IN 1 GPI-IN 1 PGM-IN 2 GPI-IN 2 PGM-IN 3 GPI-IN 3 PGM-IN 4 GPI-IN 4 PVW-IN 1 GPI-IN 5 PVW-IN 2 GPI-IN 6 PVW-IN 3 PVW-IN 4 GPI Optional Feature List:... -
Page 10: Multiview Window
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Multiview Window ● The selected preview (PVW) window is shown on the top left and highlighted in green. ● The select program (PGM) window is shown on the top right and highlighted in red. ● The 4 windows below correspond to the input sources 1 - 4. Sources can be toggled between the HDMI and DisplayPort connections for each input. -
Page 11: Button Descriptions
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Button Descriptions Menu and Directional Arrows MENU: Press the Menu button to open / enter / select a highlighted on screen menu item in the multiview window. Directional Arrows: Use the Directional Arrows to navigate the menu or to change values. - Page 12 BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Audio Mixer The BG-QuadFusion-4K supports analog balanced audio input and output, HDMI audio extraction, as well as audio matrixing using the Audio Follow Video (AFV) and MIX functions. ● Volume Sliders ○ Master: Overall system volume can be controlled by moving the Master slider up and down and it affects all audio channels.
- Page 13 BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Transition Types ● The transition mode section contains the following options: ○ MIX: Superimposes the PVW image over the current PGM image. ○ Fade: Dissolve the images in and out ● The other shape options each have several variations.
- Page 14 BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Transition Controls ● CUT: Immediately switches the PVW and PGM outputs with no transition. ● AUTO: Automatically transition between PVW and PGM selections using the selected transition type. ● Rate 1 - Rate 3: Set the speed at which the AUTO transition button functions. Rate 1 is the highest speed while Rate 3 is the slowest speed.
- Page 15 BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Function Keys ● LUMA: Removes the color black from the background of the PVW image and overlays the remaining imager on top of the PGM output. Typically used to place a watermark, logo, text, or subtitles on the PGM output ●...
- Page 16 BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL ● PATTERN: Allows users to change the BAR key test pattern. Users can select from the following options: all red, all green, all blue, all white, black & white checkerboard, or color bars. ● PIP: Picture-in-Picture (PIP) overlays a smaller image of the currently selected preview (PVW) source on top of the current program (PGM) output.
-
Page 17: Main Menu / System Settings
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL F1 - F9, FTB, and Power F1: Press F1 to change the output resolution F2: Press F2 to change the source port of Input 1 (HDMI or DisplayPort) F3: Press F3 to adjust the Mic Gain, F7 to open the HDR configuration F8: Press F8 to turn HDR On or Off. -
Page 18: Pc Quadfusion Control Application
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL PC QuadFusion Control Application A free Windows PC control software is provided for both of the QuadFusion production switches and allows for full remote control of the connected device. Software can be found and downloaded from the device product page on www.BZBGEAR.com. - Page 19 BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL The virtual software functions exactly the same as if you were pressing the buttons on the unit itself and it will cause the physical unit to mirror your actions. NOTE: T-Bar and volume sliders will re-adjust when they are physically moved on the unit.
-
Page 20: Application Example
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 21: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 22: Warranty
BZBGEAR BG-QuadFusion-4K PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 23: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 24: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
