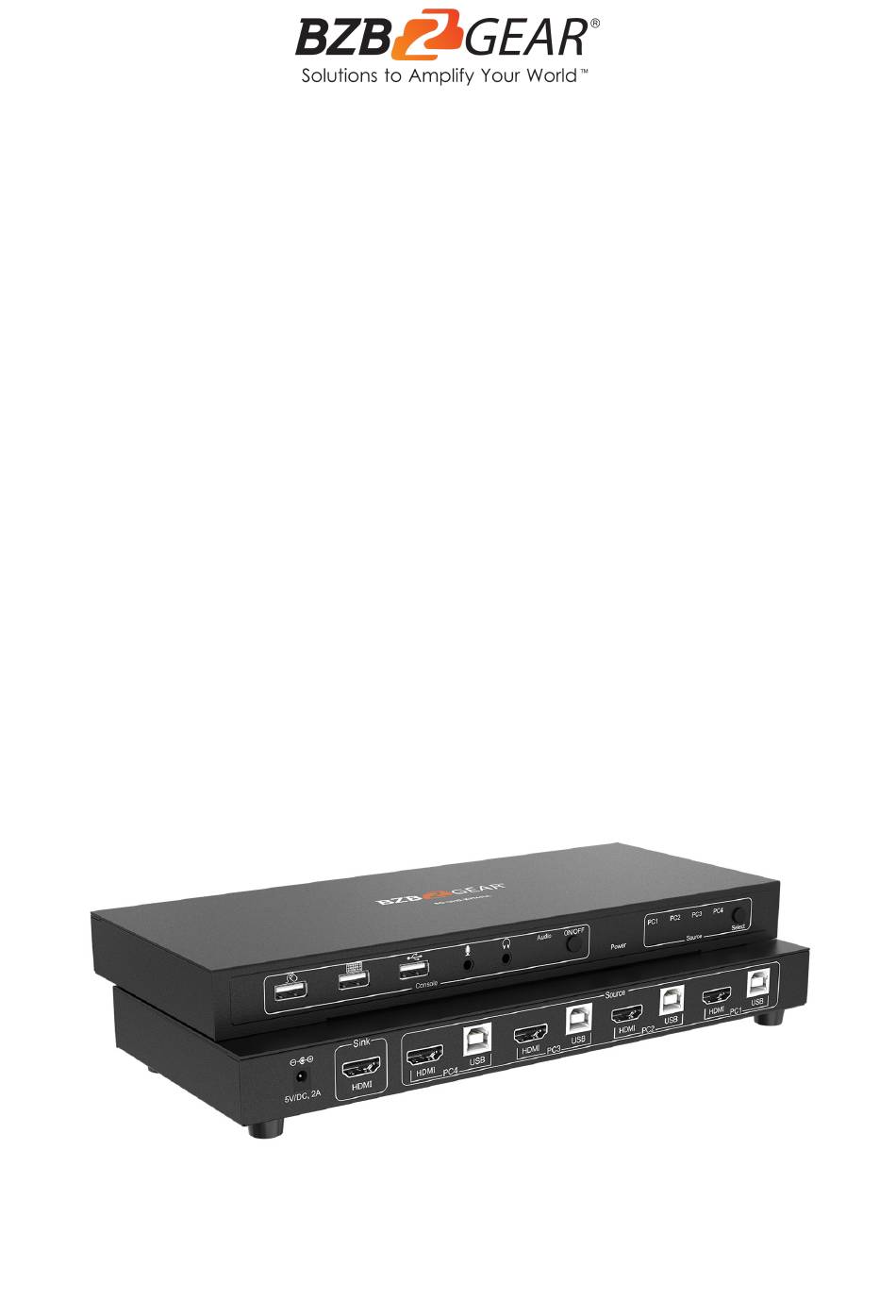

- Page 1 BG-UHD-KVM41A 4X1 KVM Switch with USB 2.0 & Audio Support User Manual...
- Page 2 BZBGEAR BG-UHD-KVM41A PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-KVM41A PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Hardware Installation Hotkey Commands Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction

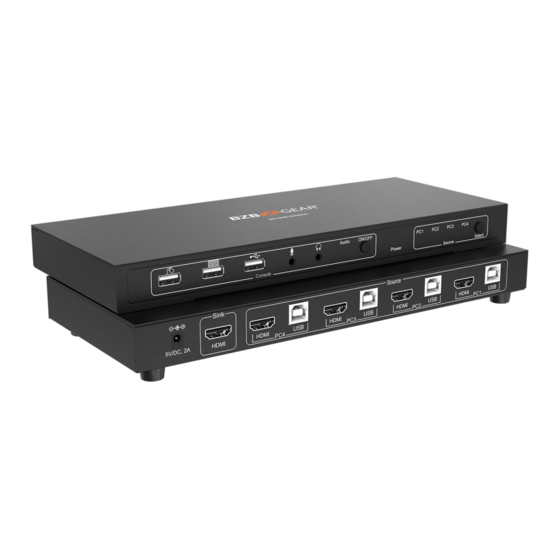

PRODUCT MANUAL Introduction The BG-UHD-KVM41A is a 4K HDMI USB 2.0 KVM switch. With support for resolutions up to 4K@30Hz, this device allows users to control four computers and share USB peripherals from a single workstation. Perfect for offices, software programmers, and technical support desks, users can easily switch between multiple operating systems without leaving their seat. -
Page 6: Operation Controls And Functions
BZBGEAR BG-UHD-KVM41A PRODUCT MANUAL Operation Controls and Functions Front Panel 1. USB Mouse Port: Connect to a USB mouse. 2. USB Keyboard Port: Connect to a USB keyboard. 3. USB Port: Connect to other USB devices. 4. MIC: Connect to a microphone. - Page 7 BZBGEAR BG-UHD-KVM41A PRODUCT MANUAL Rear Panel 10. Power Jack: Connect to the included power adapter. 11. HDMI Sink: Connect to local HDMI Display. 12. PC1-4 HDMI Inputs: Connect to the source/remote device's HDMI output. 13. PC1-4 USB Type-B Port: Connect to the source/remote PC's USB port for USB control.
-
Page 8: Hardware Installation
BZBGEAR BG-UHD-KVM41A PRODUCT MANUAL Hardware Installation 1. Power off all devices you plan to connect to the 4×1 USB HDMI KVM Switch 4K2K. 2. Connect a monitor/display to HDMI OUTPUT of the switch by an HDMI cable. 3. Connect a USB keyboard and a USB mouse to the USB keyboard and Mouse ports of the switch. -
Page 9: Hotkey Commands
BZBGEAR BG-UHD-KVM41A PRODUCT MANUAL Hotkey Commands Command Function Scroll Lock + Scroll Lock Start Hotkey mode Scroll Lock + Scroll Lock+[Enter] Port switch to next active port Scroll Lock + Scroll Lock+ [N] Port switch to desired port N (1~4) Scroll Lock + Scroll Lock+ P + W + [0/1] Port switch with host USB power detected. -
Page 10: Application Example
BZBGEAR BG-UHD-KVM41A PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
