BZBGEAR BG-UMV-HA41 User Manual

4x1 4k uhd hdmi seamless multiviewer/switcher/scaler with audio and rs-232 support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

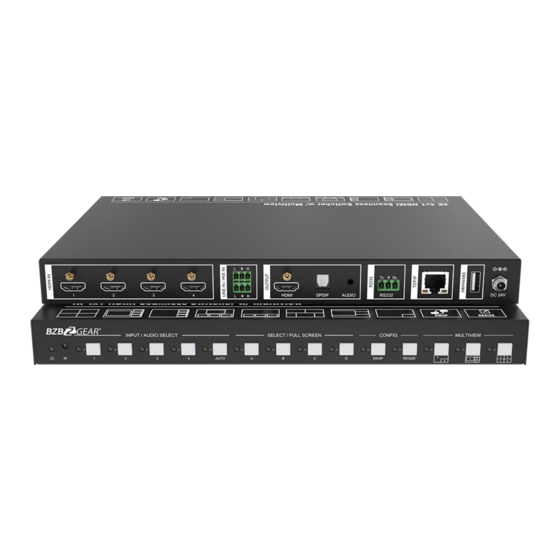

BG-UMV-HA41
4X1 4K UHD HDMI Seamless Multiviewer/Switcher/Scaler with
Audio and RS-232 Support
User Manual

Advertisement

Table of Contents
loading

Related Manuals for BZBGEAR BG-UMV-HA41

Summary of Contents for BZBGEAR BG-UMV-HA41

  • Page 1 BG-UMV-HA41 4X1 4K UHD HDMI Seamless Multiviewer/Switcher/Scaler with Audio and RS-232 Support User Manual...
  • Page 2 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-UMV-HA41 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions System Connection Front Panel Control IR Remote GUI Control RS-232 Control Firmware Upgrade Tech Support Warranty Mission Statement Copyright · ·...

  • Page 4: Safety Precaution

    ● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards.

  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BG-UMV-HA41 is a 4K multiviewer and seamless video switcher with scaling functionality designed to be compatible with 4K displays. The switcher features four HDMI inputs and one HDMI output which allows you to display four video sources on one display simultaneously.

  • Page 6: Specifications

    BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Specifications Video Video Input (4) HDMI IN (1~4) Video Input Connector (4) Type-A female HDMI HDMI Input Resolution Up to 4K@30Hz 4:4:4 Video Output (1) HDMI Video Output Connector (1) Type-A female HDMI HDMI Output Resolution...

  • Page 7: Operation Controls And Functions

    BZBGEAR BG-UMV-HA41 PRODUCT MANUAL General Operation Temperature -5℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃ Relative Humidity 10% ~ 90% External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A. Power Consumption 13w(Max) Dimension (W*H*D) 285mm x 27mm x 172.5mm Net Weight 1.24Kg...
  • Page 8 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Rear Panel Name Function Description HDMI IN Four type-A female HDMI input ports to connect HDMI source devices 3-pin terminal block to connect audio source devices to embed into HDMI LINE IN audio sources. MIX IN 3-pin terminal block to connect audio source to mix HDMI audio sources.

  • Page 9: System Connection

    BZBGEAR BG-UMV-HA41 PRODUCT MANUAL System Connection · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 10: Front Panel Control

    BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Front Panel Control Multiview Selection Factory default is four quarter views and default input and output is as follows: input1 -> window A, input2 -> window B, input3 -> window C, input 4-> window D. Press one of the other two multi-view buttons to change the layout and the selected multiview mode LED will illuminate blue.
  • Page 11 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Video Switching Status Inquiry In the Multi-view mode (Window A, B, C or D LED can illuminate blue). Operation: Window# Example: Long press Window B button for more than 3s (Window A, C and D LEDs will turn off...

  • Page 12: Ir Remote

    BZBGEAR BG-UMV-HA41 PRODUCT MANUAL IR Remote 1. INPUTS: Press buttons 1-4 to select an input source. Press the AUTO button to automatically detect the input source. 2. SELECT / FULL SCREEN: Press the A-D buttons to display the corresponding input in full-screen mode.

  • Page 13: Gui Control

    192.168.0.178 Subnet Mask: 255.255.255.0 The computer must be on the same subnet as the BG-UMV-HA41 to connect successfully. Therefore, the computer must be connected to the 192.168.0.# subnet where # is any number from 2-254 except 178. To adjust your computer's network, open the Local Area Connection Properties on the computer.
  • Page 14 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Click on the bubble for “Use the following IP address” In the IP address field enter a non-conflicting IP address on the same subnet as the unit. If there is another device with the same IP address you will not be able to connect.
  • Page 15 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Multiview Tab Once logged in the unit will enter the Multiview Tab shown below: 1. Pre-defined: ➢ Click the corresponding layout (layout 1~16) to select a display mode. ➢ Click Layout 2 and Layout 5~12 to enable the Resize function.
  • Page 16 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL ➢ Click Settings gear in the bottom left to enter Window Select to modify the input for a window. 2. User-defined ➢ Click 1, 2, 3, or 4 buttons to choose User Layout. ➢ Select the corresponding input to set the size and position for each window that you want to display on the layout.
  • Page 17 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Audio Tab ➢ Click the On button to enter Mix mode, Click the Off button to exit Mix mode. ➢ Click the Unmute or Mute button to enable/disable audio output. ➢ Select one audio input from inputs 1-4 or line audio to set as the audio source.
  • Page 18 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL RS232 Tab ➢ ASCII or HEX command formats can be selected. ➢ Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. ➢ Command Ending: NULL, CR, LF or CR+LF can be chosen. ➢ Command: Type a command in this box to control a third-party device which is connected to the RS232 port of the switcher.
  • Page 19 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL 2. Display ➢ Click a display function button to control connected display devices. 3. User-defined ➢ Select a corresponding input source device and display devices to control via CEC commands. NOTE: Not all devices are compatible with CEC or every function show may not be available.
  • Page 20 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL EDID Tab 1. Upload User-defined EDID can be customized using the following steps: ● Step 1: Click the User-defined box and a file explorer will pop up. ● Step 2: Select the EDID file (.bin) and click Open.
  • Page 21 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Network Tab ➢ Static IP or Dynamic Host Configuration Protocol (DHCP). ➢ Modify the static IP Address, Subnet Mask, and Gateway. Tags Tab ➢ Modify the Layout names in the multiview tab. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 22: Rs-232 Control

    BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Security Tab ➢ Modify the login password. ➢ Lock or unlock the front panel buttons. RS-232 Control Connect to the RS-232 port to control the unit via a RS-232 cable. The below command lists are used to control the switcher. The RS-232 control software (e.g.
  • Page 23 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL System Control Note: ● In the commands below “[”and “]” are symbols for ease of reading and are not typed in actual operation. ● Commands are case-sensitive. The ending mark of a command is “<CR><LF>” (in docklite “r” and “n” are the shortcut keys for the ending commands for ASCII or “0D 0A”...
  • Page 24 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Audio Switching The ending mark of a command is “<CR><LF>” (in docklite “r” and “n” are the shortcut keys for the ending commands for ASCII or “0D 0A” for HEX) Command Description Command & Feedback Example #SET_AUDIO_MUTE Mute/Unmute audio.
  • Page 25 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Command Function Command & Feedback Example #GET_OUTPUT_RES Get the output resolution @OUTPUT_RES 4 #GET_INPUT_RES [PARAM] Get the input resolution. @INPUT_RES: 1920x1080 60HZ [PARAM]=1 ~ 4 1 - HDMI 1 2 - HDMI 2 3 - HDMI 3...
  • Page 26 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Command Function Command & Feedback Example #SET_MV_MODE [PARAM] Set multiview mode. #SET_MV_MODE 1 [PARAM]=1 ~ 20 @MV_MODE 1 1 - 1 WINDOWS Full 2 - 2 WINDOWS PBP 3 - 3 WINDOWS 2U1D 4 - 4 WINDOWS SAME SIZE...
  • Page 27 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Command Function Command & Feedback Example #GET_DTIME Get the delay time of auto sending @DTIME 1:30 Display OFF command when no signal is detected. #SET_AUTO_POWER [PARAM] Enable/Disable auto standby function. #SET_AUTO_POWER 1 [PARAM]=0 ~ 1 @AUTO_POWER 1...
  • Page 28 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Command Function Command & Feedback Example #SET_SRC_BACK [PARAM] Send CEC BACK command to source #SET_SRC_BACK 1 device. @SRC_BACK 1 [PARAM]=1 ~ 4 1 - HDMI 1 2 - HDMI 2 3 - HDMI 3 4 - HDMI 4...
  • Page 29 BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Command Function Command & Feedback Example #SET_SRC_NEXT [PARAM] Send CEC NEXT command to source #SET_SRC_NEXT 1 device. @SRC_NEXT 1 [PARAM]=1 ~ 4 1 - HDMI 1 2 - HDMI 2 3 - HDMI 3 4 - HDMI 4...

  • Page 30: Firmware Upgrade

    BZBGEAR BG-UMV-HA41 PRODUCT MANUAL Command Description Command & Feedback Example #SET_H_ON_[PARAM]:XX Set the HEX command to be sent to #SET_H_ON_05:30 31 32 display device when power on the 33 34 switcher. @BAUDRATE: 9600 [PARAM]= 01~07 @DISPLAY ON HEX TO 01 - 115200...

  • Page 31: Tech Support

    1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com.

  • Page 32: Mission Statement

    Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
