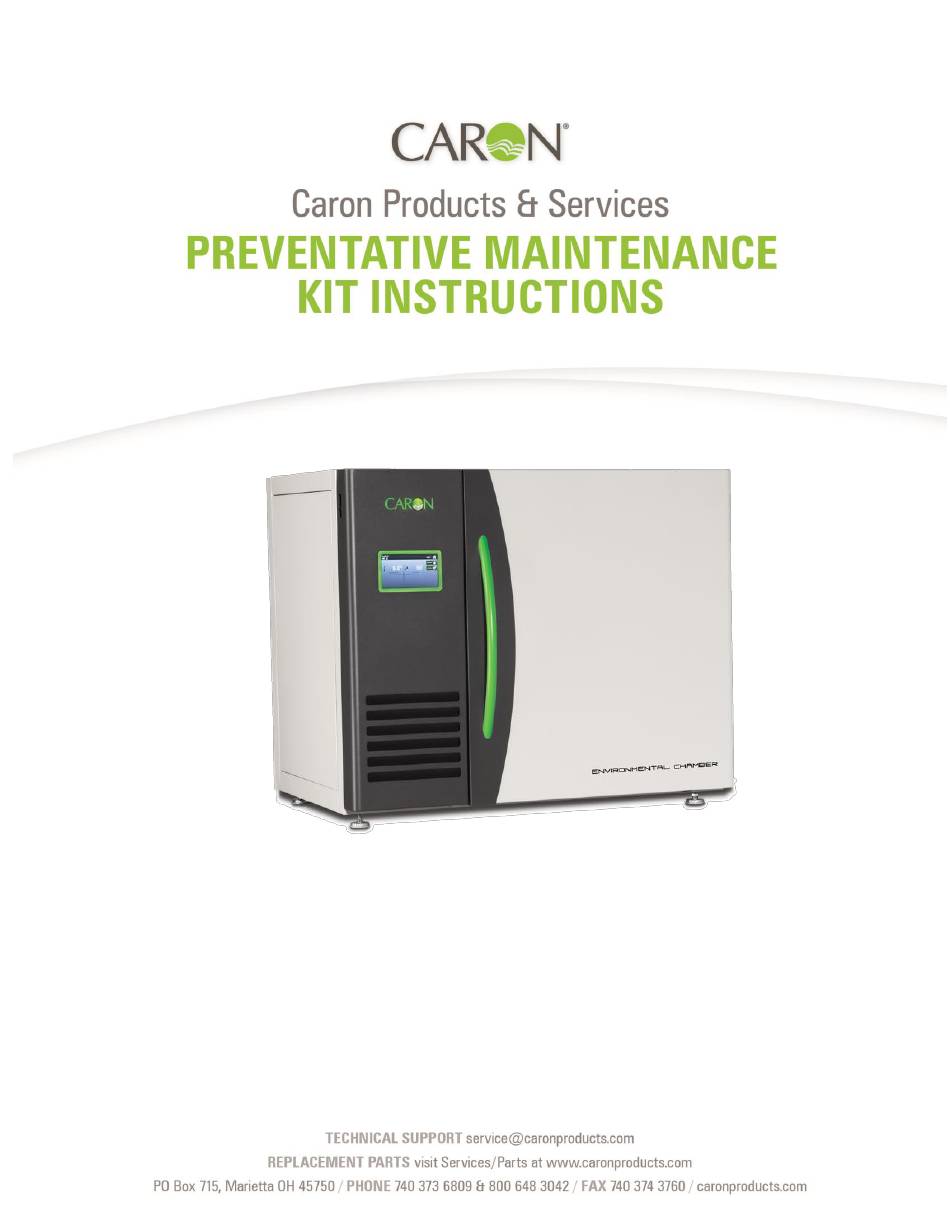

- Page 1 MODEL 7000-10 INST-PM-7000-10...
- Page 2 Revision Log Revisions Description Letter Date 10-11-2016 Initial release. New cover. 04-02-2018 02-06-2019 Deleted drain tube reference. Replaced NOZ-105 with NOZ-110, Added new air filter 02-01-2020 instructions for tab design, new parts pics.
- Page 3 Parts Required: (1) Air Filter, (1) Atomizer Tools Required: Phillips Screwdriver, Flatblade Screwdriver (may be required), Ratchet with 5/8″ Socket and 6″ Extension Parts included in Preventative Maintenance Kit for Model 7000-10 are shown below. (1) Air Filter (1) Atomizer...
- Page 4 Remove air filter cover by turning screw no more than ¼ turn. Air Filter Cover Screw 4. Remove old air filter as shown below and follow instructions for Trimming Air Filter included with PM Kit to prepare new air filter for installation. Air Filter INST-PM-7000-10 Rev D 01/30/2020 Page 4...
- Page 5 REPLACING AIR FILTER - TAB DESIGN Note: Photos may have a different appearance depending on chamber options. 1. Turn off chamber and unplug power cord. Disconnect electrical power before opening control panel bezel. 2. Open chamber outer door. INST-PM-7000-10 Rev D 01/30/2020 Page 5...
- Page 6 Control Panel Bezel Screws 4. Open control panel bezel, remove old air filter as shown below and follow instructions for Trimming Air Filter included with PM Kit to prepare new air filter for installation. Air Filter INST-PM-7000-10 Rev D 01/30/2020 Page 6...
- Page 7 Note: Photos may have a different appearance depending on chamber options. 1. Remove shelves from chamber. 2. Remove left shelf channels. 3. Remove false floor by pulling upward on access ports as shown below. False Floor Access Ports INST-PM-7000-10 Rev D 01/30/2020 Page 7...
- Page 8 5. Remove (2) screws securing left interior wall using Phillips screwdriver as shown below. Note: Retain screws. Left Interior Wall Screws 6. Tilt top of left interior wall down towards bottom of chamber, remove and set aside. INST-PM-7000-10 Rev D 01/30/2020 Page 8...
- Page 9 8. Remove and discard old atomizer using ratchet with 5/8″ socket and 6″ extension as shown below. Atomizer 9. Install new atomizer. 10. Reinstall left side interior false wall. 11. Secure (2) latches on left side interior false wall. INST-PM-7000-10 Rev D 01/30/2020 Page 9...
- Page 10 17. Reinstall shelves. 18. Plug in power cord and turn on chamber. 19. Reset air filter and atomizer alerts by pressing Settings button on right side of Home screen as shown below. Settings Button INST-PM-7000-10 Rev D 01/30/2020 Page 10...
- Page 11 21. Press Reset buttons for Replace air filter and Replace atomizers as shown below. Reset Button 22. Press Home button as shown below. Home Button 23. Continue to instructions for replacing additional accessory preventative maintenance items if applicable. INST-PM-7000-10 Rev D 01/30/2020 Page 11...
