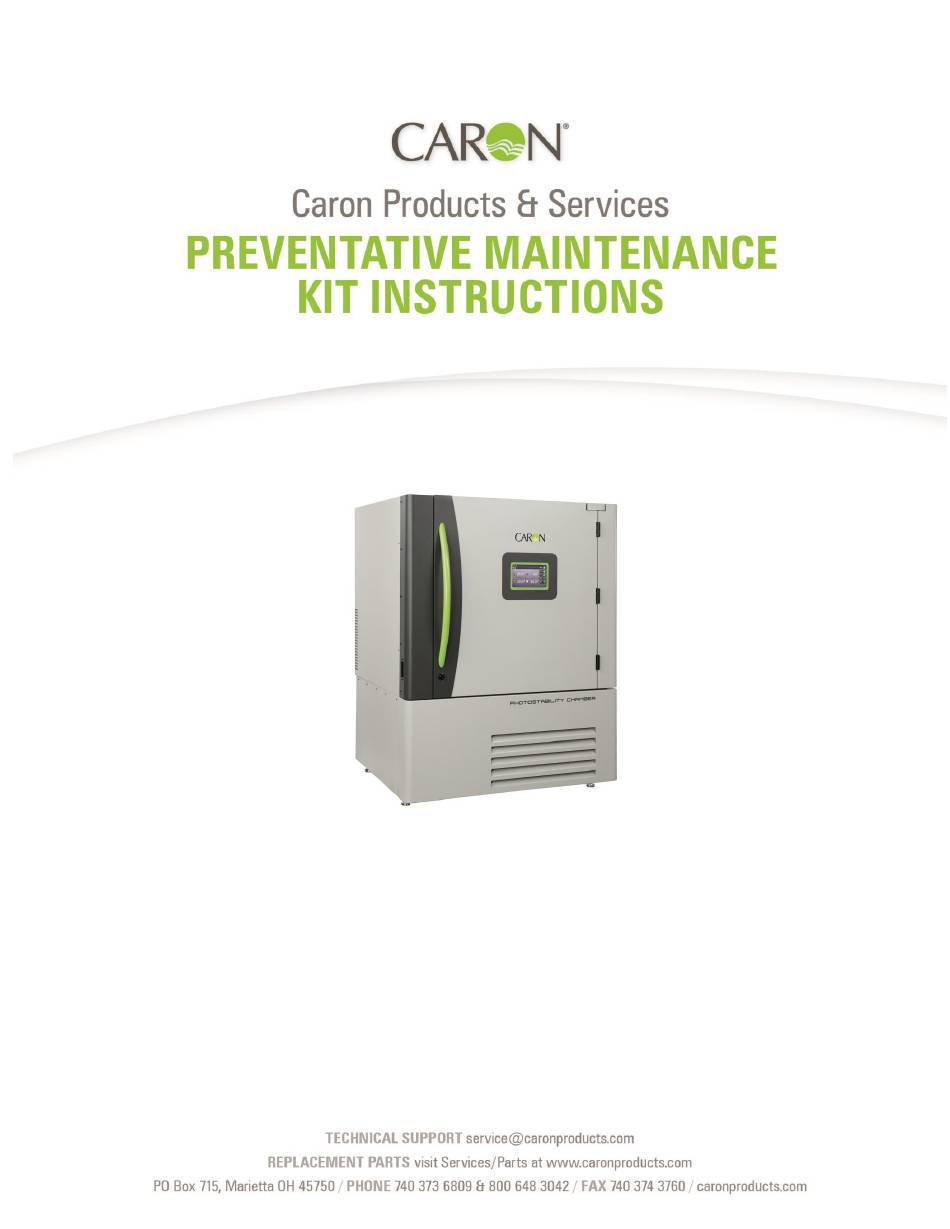

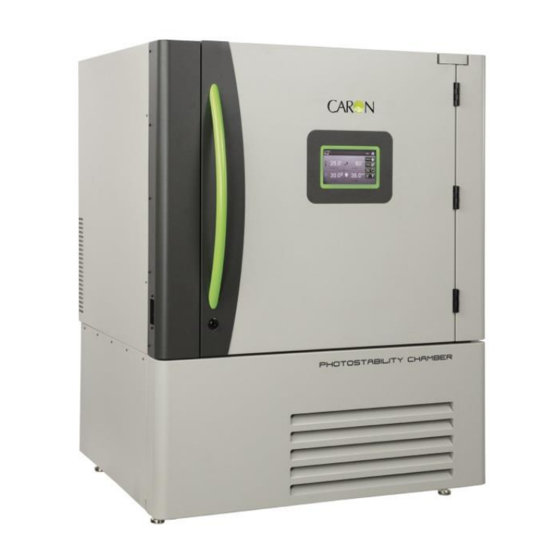

- Page 1 MODEL 7540-3 INST-PM-7540-3-VIS...
- Page 2 Revision Log Revisions Description Letter Date 04-16-2018 Initial release.
-
Page 3: Replacing Air Filter
INSTRUCTIONS FOR REPLACING AIR FILTER AND VIS LAMPS IN MODEL 7540-3 Parts Required: (1) Air Filter, (4) Velcro Discs, (14) Lamps Tools Required: Drill, Phillips Screwdriver Bit Parts included in Preventative Maintenance Kit for Model 7540-3-VIS are shown below. Air Filter Lamps Velcro Discs REPLACING AIR FILTER Note: Photos may have a different appearance depending on chamber options. - Page 4 4. Unfasten (4) Velcro connections on air filter and discard filter as shown below. Note: Remove and discard any Velcro discs with loops that may still be attached to hook discs located on condenser and replace hook discs as needed. Velcro Connection Locations Air Filter INST-PM-7540-3-VIS Rev A 04/16/2018...
- Page 5 Note: Once adhesive has touched air filter it cannot be adjusted. Air Filter 7. Reinstall lower grill assembly by engaging (2) bottom latches. 8. Secure lower grill assembly with retained (2) screws using Phillips screwdriver bit. INST-PM-7540-3-VIS Rev A 04/16/2018...
-
Page 6: Replacing Lamps
1. Slide bottom light bank shelf out of chamber as shown below. Bottom Light Bank Shelf 2. Remove light bank shelf and place lamp side up on flat surface as shown below. Bottom Light Bank Shelf INST-PM-7540-3-VIS Rev A 04/16/2018... - Page 7 5. Slide light bank shelf into chamber and press firmly to seat rear connector as shown below. Light Bank Shelf Press Here 6. Continue to instructions for replacing additional accessory preventative maintenance items if applicable or plug in power cord and turn on chamber. INST-PM-7540-3-VIS Rev A 04/16/2018...
- Page 8 Settings Button 8. Press Maint. button as shown below. Maint. Button 9. Press Reset buttons for Replace air filter and Replace VIS lamps as shown below. Reset Buttons 10. Press Home button as shown below. Home Button INST-PM-7540-3-VIS Rev A 04/16/2018...
