- Page 1 CARON 6000 SERIES ENVIRONMENTAL TEST CHAMBERS MODELS 6010, 6011, 6012, 6030, 6031, & 6032 OPERATIONS MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SE CTION P AG E S INTRODUCTION .............. Symbols and Warnings............3 SPECIFICATIONS ............INSTALLATION ............... Chamber Location ..............7 Drain Connection ..............8 Power ................... 8 OPERATION ..............CONTROLLERS ..............12 Temperature Deviation Alarm ..........12 OPTIONS . -
Page 3: Introduction
INTRODUCTION The CARON 6010 & 6030 series Environmental Test Chambers provide multiple capabilities to create repeatable environmental conditions for numerous applications including: • Product shelf life • Stability and package testing • Light exposure and temperature evaluation studies • Electronic component burn-in •... - Page 4 SAFETIES The CARON 6000 Series has a triple redundancy safety system. A temperature alarm in the temperature controller sounds an alarm to alert the end user to the condition. A thermal snap disk, high limit and a thermal fuse are provided to prevent run-away heating of the unit. The compressor and blower motors are both protected by thermal overloads.
-
Page 5: Specifications

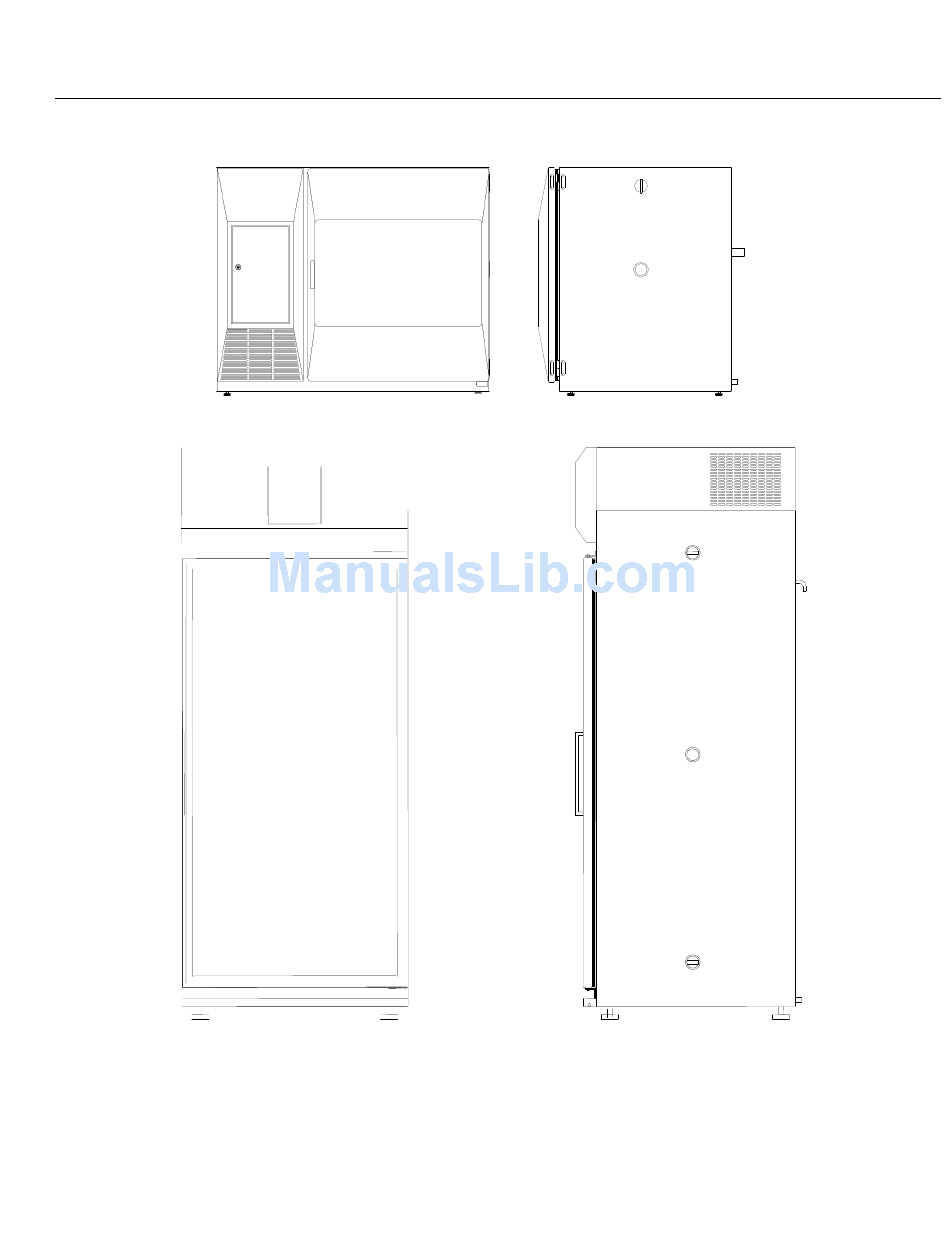

MODEL 6010 SPECIFICATIONS Temperature Range without lights 5°C to 70°C Temperature Range with lights 10°C to 70°C Temperature Control ± 0.1°C Temperature Uniformity ± 0.3°C Relative ∗ Humidity 20 to 98% RH Humidity Control ± 3% Interior Dimensions 23”W x 25.8”D x 29.8”H (58cm x 65.5cm x 75.7cm) - Page 6 MODEL 6030 SPECIFICATIONS Temperature Range without lights 5°C to 70°C Temperature Range with lights* 10°C to 70°C Temperature Control ± 0.1°C Temperature Uniformity ± 0.3°C Relative Humidity* 20 to 98% RH Humidity Control* ± 2% Interior Dimensions 30”W x 27.5”D x 63.5”H (76.2cm x 69.9cm x 161.3cm) Exterior Dimensions 36”W x 39”D x 90”H...
-
Page 7: Installation
Locate the chamber in an area out of direct sunlight and away from heating and cooling ducts. The 6010 & 6030 chambers can exhaust 2500 BTU/hr (730 W) and 4000 BTU/hr (1170 W) respectively into the surroundings. -
Page 8: Drain Connection
For personal safety, this chamber must be properly grounded. The Power Cord of this chamber is equipped with a grounded plug which mates with a corresponding outlet to minimize the possibility of electrical shock from the chamber. CARON recommends that the chamber have a dedicated wall outlet. - Page 9 INSTALLATION cont. Control System The control system is comprised of a 1/16 DIN temperature controller. The drawing below shows the control panel (exact controller may vary). The display panel consists of a power switch, refrigeration switch, and a temperature controller. The temperature controller’s unit is degrees Celsius (°C).
-
Page 10: Operation
OPERATION 1. Connect the drain lines, and power cord as instructed in the INSTALLATION section of this manual. (See Appendix C for additional drain connections. 6030 only) 2. Insert all shelf clips, and shelves. Check to see if they are properly installed. 3. - Page 11 Between shelves Model Ceiling Back wall Side walls Front / door 6010, 6011, 6012 2 in (5 cm) 2 in (5 cm) 4.5 in (11 cm) 2 in (5 cm) 2 in (5 cm) 6030, 6031, 6032 6 in (15 cm) 6 in (15 cm) 3.5 in (9 cm)
-
Page 12: Controllers
CONTROLLERS The temperature control system is comprised of a single channel, dual output controller. On/off outputs are used to drive heaters and cooling solenoids. An additional controller is used to control the humidity (if that option is ordered). Both controllers are configured and tested at the factory to ensure proper performance. -
Page 13: Options
6010 & 6030 Humidity System A bi-modal humidification system allows for independent humidification and dehumidification. This design provides control over both the humidity injection system and the dehumidification system. This system permits the chamber to respond faster as well as controlling the chamber more efficiently at a constant relative humidity. -
Page 14: Humidity Controller Calibration
MPT fitting can be used to connect to water supply. Model 6010: Facing the back is a water connection in the lower right hand corner. The ¼ FPT fitting is attached to a filter/strainer and pressure regulator that is set at 40 PSI. Any type of ¼... -
Page 15: Diurnal Lighting System
Model 6030: The two atomizing heads are located in the interior ceiling area which inject the humidity into the chamber. Model 6010: The atomizing head is located on the left side interior wall. It is also important to check and clean the humidity water inlet filter/strainer every 6 months. After... -
Page 16: Heatless Dryer Package
HEATLESS DRYER PACKAGE The Heatless Dryer Package is designed to extend the operational limits of CARON’s Series 6000 Environmental Test Chamber to its minimum humidity control point of 2% RH and improve the dehumidification rate of the chamber. -
Page 17: Dryer Package Testing & Adjustments
b) Attach the 3/8” ID clear tubing to the outlet of the flow meter. Secure tubing with the hose clamp provided. c) Connect compressed air (either from house air or other compressed air source) to the fitting labeled “air supply inlet”. NOTE: THE AIR SOURCE MUST BE OIL-FREE AND WATER-FREE AND FILTERED TO 10 MICRONS MINIMUM. -
Page 18: Circular Chart Recorder
1. Set the flow meter on the dryer assembly to approximately 300 SCFH. Watch the humidity display to see that the % RH is moving down to the specified setpoint. Allow sufficient time for the chamber to stabilize when setting up and making adjustments, especially if the chamber has been running with high humidity levels. - Page 19 There are three factory drilled holes located on the right side of chamber facing the front of chamber. Using the factory supplied screws, screw the recorder to the side of the chamber. Model 6030, 6031, 6032 Model 6010, 6011, 6012 Right side Right side NOTE: Before applying power to the recorder, complete these preliminary preparation tasks to prepare the recorder for operation.
- Page 20 a) Locate the wires fastened to the side of the chamber, these are the temperature and humidity sensor wires. b) Push the button on the recorder door and swing the door open. c) Loosen the captive screw in the chart plate and swing the plate out. Run the sensor wires into the chart recorder through the knock out hole on the recorder.
- Page 21 f) Insert connector with the red and black wires from the humidity sensor to the connector labeled red and black. g) Insert connector with the white, red and red wires from the temperature sensor to the connector labeled white, red and red. h) Close the chart plate and replace the captive screw.
-
Page 22: Routine Maintenance
(j) Slip the new chart under the pen lifter, pen and time index, and press the chart into place over the chart hub and locating pin. (k) Grasp the chart hub and locating pin and turn the chart until the desired time line on the chart is aligned with the time index on the chart plate and Pen #1. -
Page 23: Condensate Recirculating System
SP2, and the second setpoint will be displayed on the controllers. CONDENSATE RECIRCULATING SYSTEM: CRSY102 The Condensate Recirculating System is used in conjunction with CARON’s Series 6000 Test Chambers, as a water delivery system. This system is typically used in facilities where a floor drain or in-house source of distilled or deionized water are not available. - Page 24 Model 6030, Back view with CRSY102 6000 SERIES MANUAL_U.doc 12-12-07...
-
Page 25: Remote Alarm Contact
RS-485 to RS-232 converter for their PC and set up the system to accept data from the controllers. CARON can provide information about the type of RS-485 board and/or converter for your system. Terminations 11(R/T -), 12 (R/T +) and 13 (GND) located on the back of the chamber are used to connect for communications. -
Page 26: Defrost Package
DEFROST PACKAGE – DEFR201 The optional defrost timer allows the chamber to operate at low temperatures down to 0°C. When operating the chamber with this option, it is recommended to utilize the defrost system to prevent ice build-up on the condensing coil. The defrost time is pre-set to provide four defrost cycles every 24 hours (once every 6 hours) with the defrost duration at 16 minutes. -
Page 27: Maintenance
In order to access the electrical and refrigeration components, remove the sheet metal screws that are holding the top cover in position. CONTROL PANEL ACCESS MODEL 6010, 6011, 6012 WARNING: Before removing control panel, disconnect all power! To access all control panel, electrical parts, and refrigeration parts this can be done by removing the (2) screws located at the top of the service panel, and pulling the panel out of it’s slot. - Page 28 Check air filter (Model 6010, 6011, 6012), replacement filters can be ordered through Caron Service Dept. 740-373-6809. (Monthly) g) Check condensate drip pan located inside of 6010, 6011, 6012 (Every 3 Months), remove service door, lower right hand corner...
-
Page 29: Troubleshooting Guide
PROBLEM: Inconsistent temperature control and then over-temp safety energizes POSSIBLE CAUSES: 1. Circulation fan defective 2. Temperature sensors out of position or defective 3. Controller not programmed properly For further troubleshooting procedures, refer to the individual manuals for the controllers, recorder, or contact CARON at 740-373-6809. -
Page 30: Appendix A - Watlow 96 Controller
APPENDIX A - WATLOW 96 CONTROLLER ® This appendix describes the operating instructions and default controller the Watlow 96 temperature & humidity controllers. A 96 controller can be identified by either an “96” in the upper right corner or with an upper green/lower green led display. Controller Layout Temperature 1 - Output 1, indicates heating system... -
Page 31: Light & Contact Timer, Communications
Controller parameters are factory set and should not be changed. Incorrect controller parameters will result in poor performance and are not covered under warrantee. If parameter re-setting to factory default values is needed, consult CARON service. Diural Lighting & Contact Closure System With the diural lighting and contact closure systems, different temperature and humidity set points maybe selected for lights ‘on’... -
Page 32: Appendix B - Watlow Sd Controller
F. Press the Infinity key to return to the home page Controller Parameters Controller parameters are factory set and should not be changed. Incorrect controller parameters will result in poor performance and are not covered under warrantee. If parameter re-setting to factory default values is needed, consult CARON service. -
Page 33: Appendix C - 230 V Optional Unit
APPENDIX C – 230 V (Optional) Unit The Caron Model 6030, 6031, 6032 230 V unit is the same as the 115 V with minor modifications they are as follows: Power PLEASE READ CAREFULLY! The power specifications of this unit are 230V 15A 50/60 Hz. -
Page 34: Appendix D - Declaration Of Conformance
Marietta, OH 45750 USA Declares that the following product: Designation: 6000 Series (when noted) Model Number: 6010, 6030 (may have digits or numbers following) Classification: Electrical equipment intended for residential, commercial and lighting industrial environments Rated Voltage: 220-240 ~ (ac) - Page 35 INFORMATION SHEET CARON MODEL NO. SERIAL NO. CUSTOMER NAME SHIP DATE...
