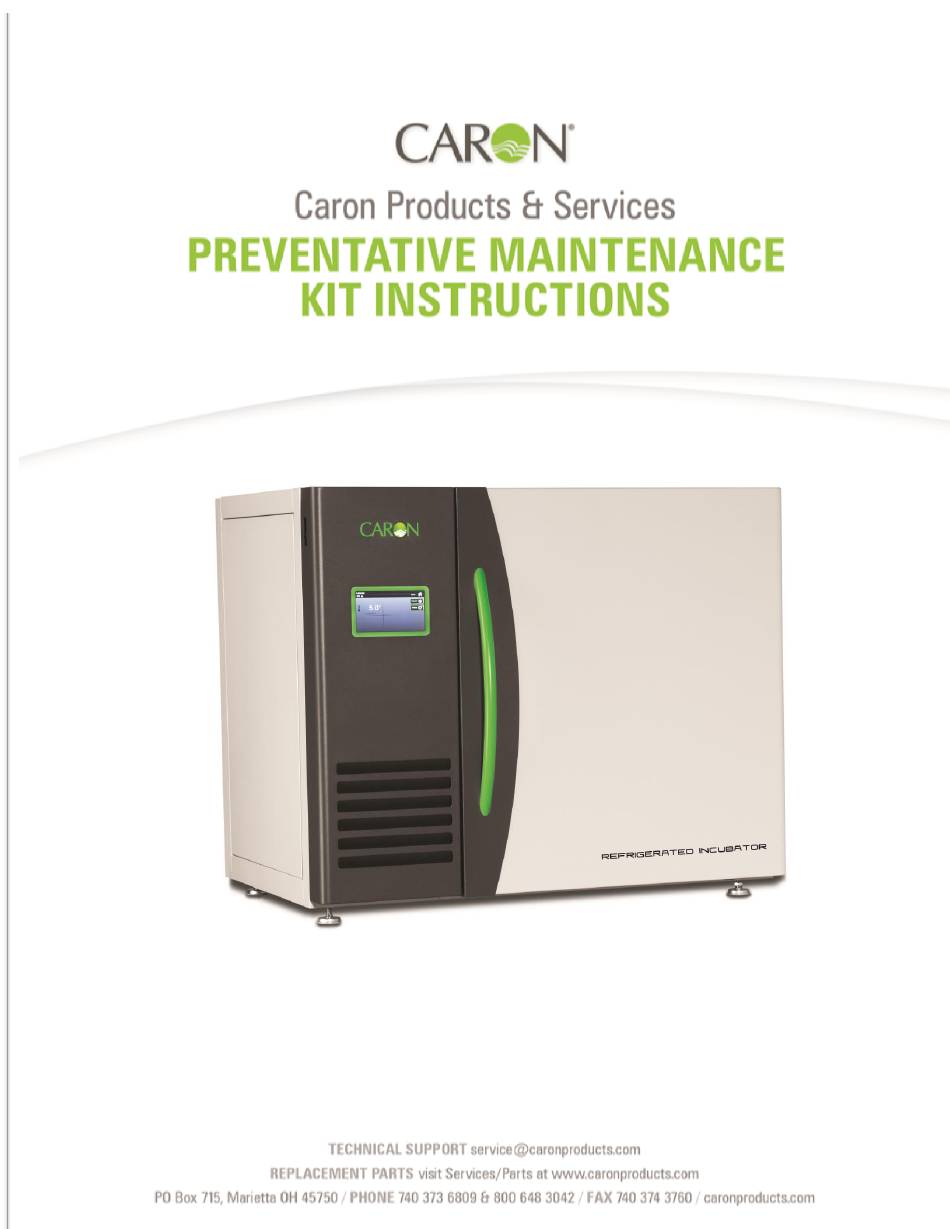

- Page 1 MODEL 7001-10 INST-PM-7001-10...
- Page 2 Revision Log Revisions Description Letter Date 10-11-2016 Initial release. New cover. 04-02-2018 Added new air filter instructions for tab design, new 02-10-2020 parts pics.
- Page 3 INSTRUCTIONS FOR REPLACING AIR FILTER IN MODEL 7001-10 Parts Required: (1) Air Filter Tools Required: Flatblade Screwdriver Parts included in Preventative Maintenance Kit for Model 7001-10 are shown below. (1) Air Filter Note: If chamber control panel bezel has air filter cover as shown below continue to REPLACING AIR FILTER –...
- Page 4 Remove air filter cover by turning screw no more than ¼ turn. Air Filter Cover Screw 3. Remove old air filter as shown below and follow instructions for Trimming Air Filter included with PM Kit to prepare new air filter for installation. Air Filter INST-PM-7001-10 Rev C 02/10/2020 Page 4...
- Page 5 REPLACING AIR FILTER – TAB DESIGN Note: Photos may have a different appearance depending on chamber options. 1. Turn off chamber and unplug power cord. Disconnect electrical power before opening control panel bezel. 2. Open chamber outer door. INST-PM-7001-10 Rev C 02/10/2020 Page 5...
- Page 6 Control Panel Bezel Screws 4. Open control panel bezel, remove old air filter as shown below and follow instructions for Trimming Air Filter included with PM Kit to prepare new air filter for installation. Air Filter INST-PM-7001-10 Rev C 02/10/2020 Page 6...
- Page 7 RESETTING AIR FILTER ALERT 1. Reset air filter alert by pressing Settings button on right side of Home screen as shown below. Settings Button 2. Press Maint. button as shown below. Maint. Button INST-PM-7001-10 Rev C 02/10/2020 Page 7...
- Page 8 3. Press Reset button for Replace air filter as shown below. Reset Button 4. Press Home button as shown below. Home Button 5. Continue to instructions for replacing additional accessory preventative maintenance items if applicable. INST-PM-7001-10 Rev C 02/10/2020 Page 8...
