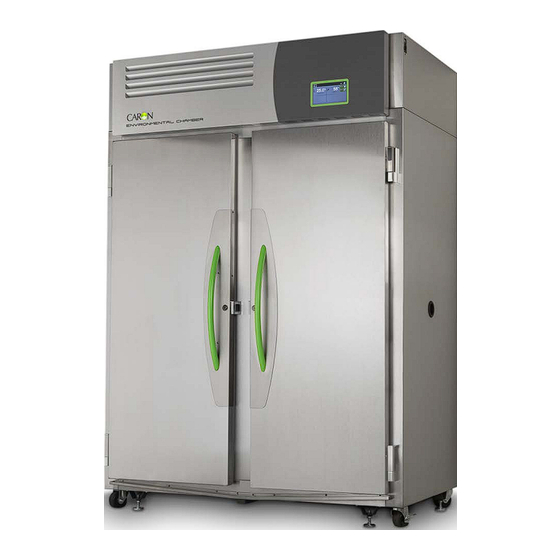

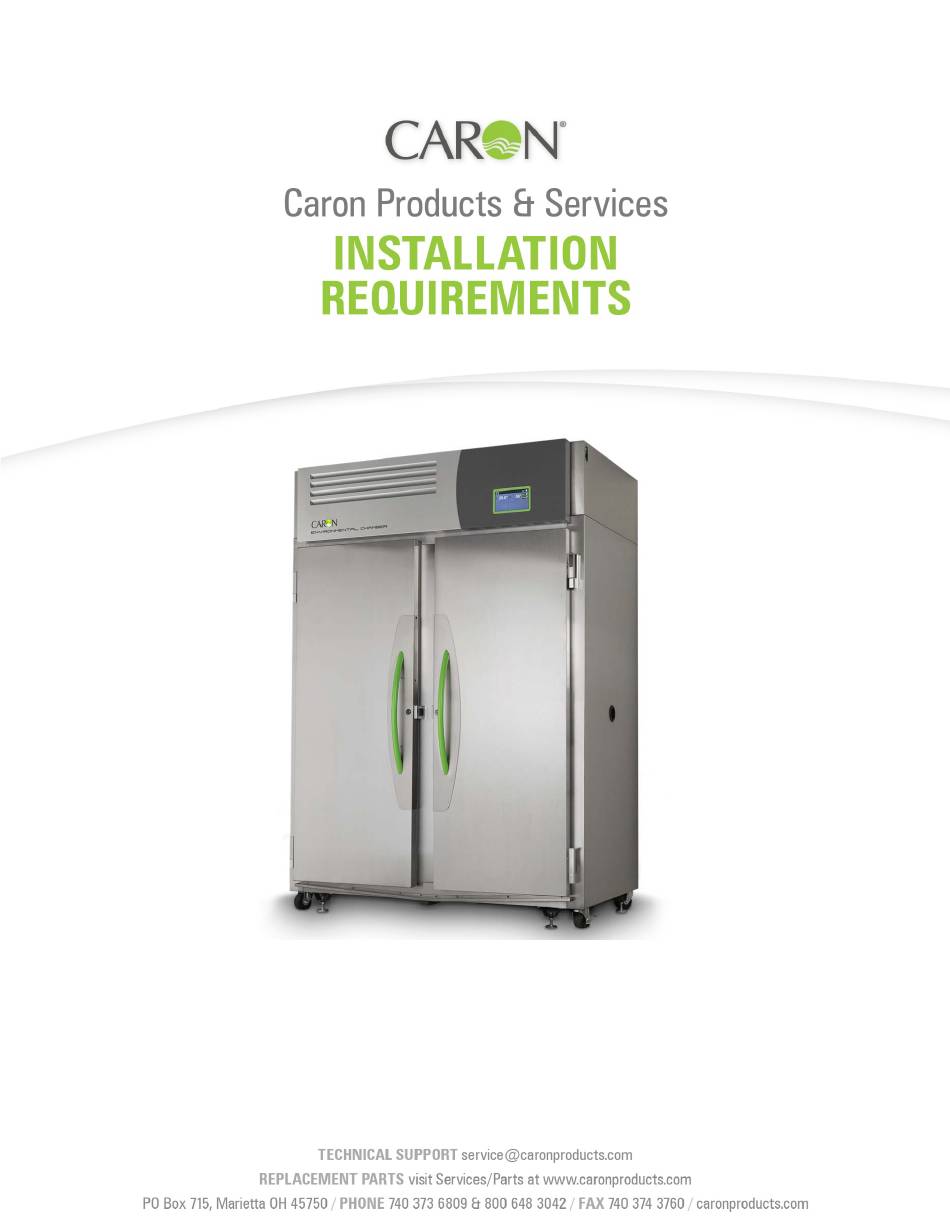

- Page 1 ENVIRONMENTAL CHAMBERS Models: 7000-50 / 7000-75 7001-50 / 7001-75...
-
Page 2: Revision Log
Revision Log Revisions Description Letter Date 06-24-2020 Release using Operations Manual Rev P. - Page 3 For prolonged periods of inactivity leave the unit unplugged and securely stored. Caron provides full on-site installation services for all models. Our installation services guarantees the proper set-up and startup of all equipment. Please contact the Service Department at 740-373-6809 or www.caronproducts.com...
- Page 4 Contact Caron if there is any doubt of the compatibility of the cleaning agent being used with the chamber. After cleaning, dry all interior components with a sterile cloth as necessary.
- Page 5 • Do not use electrical appliances within the unit, other than those recommended by the manufacturer. Installing the Shelves Each new 7000-50 Series environmental chamber includes eight perforated stainless steel shelves. Each new 7000-75 Series environmental chamber includes twelve perforated stainless steel shelves. Each shelf requires two shelf channels for installation.
- Page 6 A 3/8” tube fitting, tubing and wire ties are supplied in the unit parts kit. Insert the tube fitting into the tubing, secure tubing to fitting with provided wire tie. Insert fitting into drain connection. Pull on the tubing after installation to make sure INST-INSTALL-7000-50/75 Series Rev B 06/24/2020 Page 6...
- Page 7 Kinks or elevations in the drain line above the cabinet drain will not allow the chamber to drain. If a local floor drain is not available, a variety of accessories are available through CARON customer service. These accessories can also be viewed at www.caronproducts.com.
- Page 8 Incoming line pressure should be regulated to not exceed 80 psi. If a Condensate Recirculator water recycling system was purchased as a water supply, refer to its user’s manual for proper installation. INST-INSTALL-7000-50/75 Series Rev B 06/24/2020 Page 8...
- Page 9 The use of an inadequate mains power supply cord could result in equipment failure or personal harm to the user. In the event of a power outage the unit will automatically restart when the power is restored. INST-INSTALL-7000-50/75 Series Rev B 06/24/2020 Page 9...
-
Page 10: Optional Accessory Installation
Insert the appropriate wire into the terminal and tighten down the screw terminal on top of the connector. Terminal Connection Unit off Normal Alarm N/O to C Closed Open Closed N/C to C Open Close Open Alarm Contact Connections INST-INSTALL-7000-50/75 Series Rev B 06/24/2020 Page 10... - Page 11 10 microns minimum. Dryer Panel Tower Clamps (optional) Power Cord Air Tube Mounting Brackets Flow Meter Outlet Air Supply Inlet Pressure Regulator Flow Meter Adjustment Coalescent Filter With Drain Pressure Regulator Dial INST-INSTALL-7000-50/75 Series Rev B 06/24/2020 Page 11...
- Page 12 Incoming compressed air must not exceed 100 psig. CARON recommends installing a pressure gauge, filter, and shutoff prior to the dryer to monitor incoming air pressure. The air supply (either house air or other compressed air source) must be 90 to 100psig at the air supply inlet. An oil-less compressor may be used.
- Page 13 3. Attach 3/8” orange tubing from the chamber to the flow meter outlet. Flow Meter Outlet 4. Connect compressed air to dryer package inlet fitting (1/4 NPT) Dryer Inlet See Operations section of the manual for instructions on setting the pressure regulator and flow meter. INST-INSTALL-7000-50/75 Series Rev B 06/24/2020 Page 13...
- Page 14 (and humidity) values. These options can be used for connection to in-house data acquisition, recorder, or alarm system. The temperature parameter (only) is adjustable in its scaling and is accessible at the Analog Output screen. INST-INSTALL-7000-50/75 Series Rev B 06/24/2020 Page 14...
- Page 15 Internal Level Switch In applications where a floor drain is not available and a CARON water recycling system is not being used, a drain pump can be purchased to pump any excess condensate from the chamber to a local sink or drain. The pump is located near the middle of the back of the chamber.
- Page 16 Turn power to the chamber back Standard factory set up for chart speed is 7 day operation. Refer to the Chart Recorder’s User’s Manual provided with the recorder to change the chart speed settings for various chart speeds. INST-INSTALL-7000-50/75 Series Rev B 06/24/2020 Page 16...
