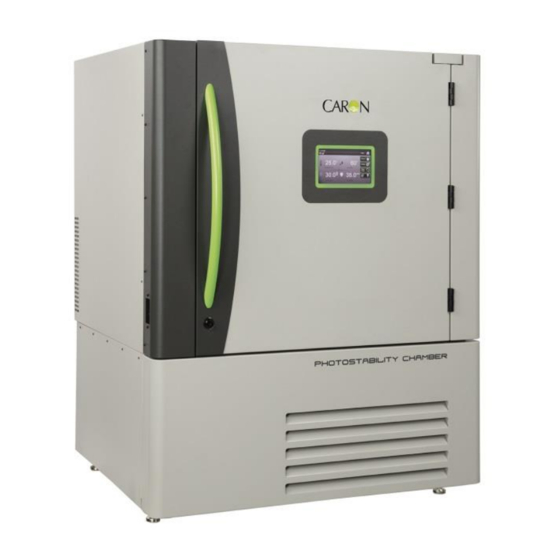

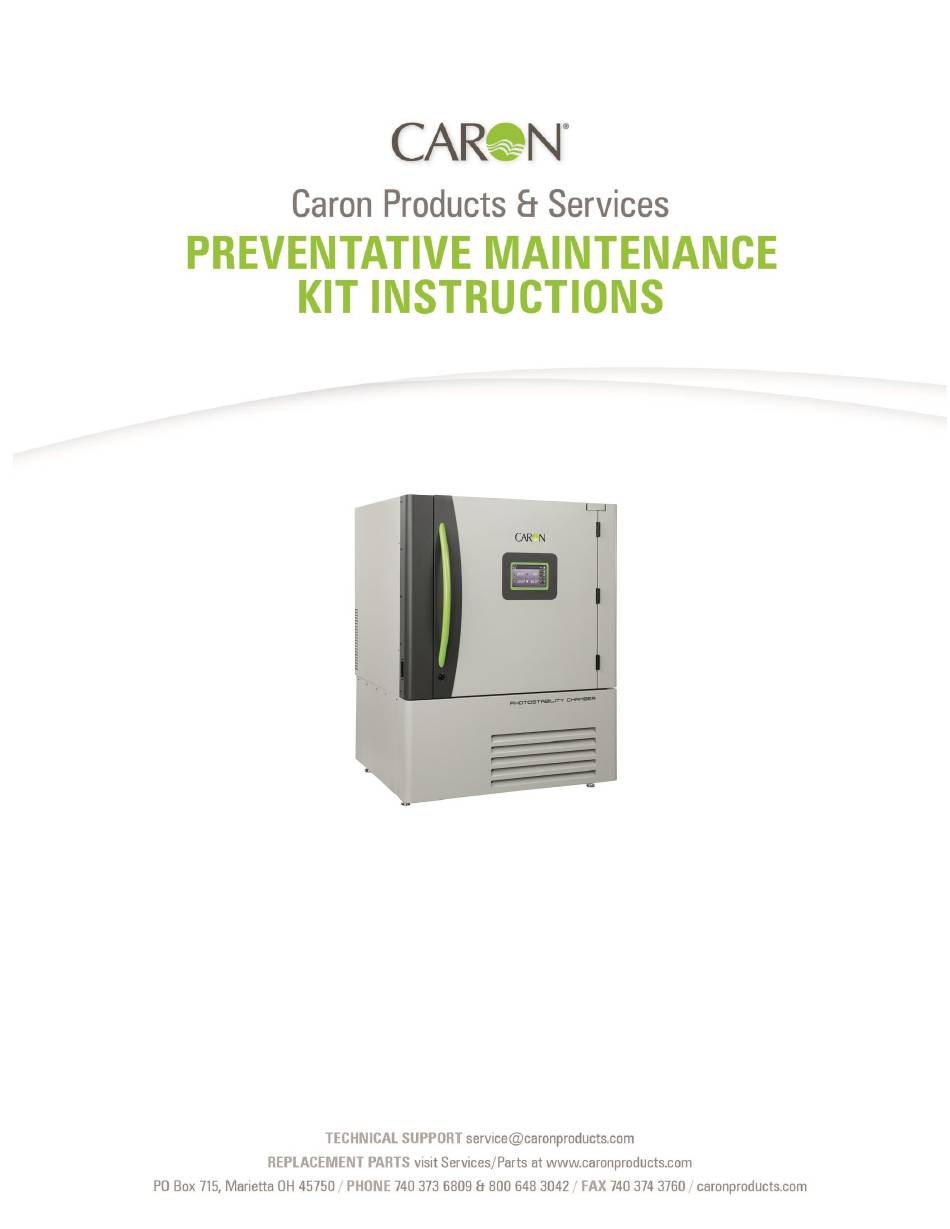

- Page 1 MODEL 7545-1 INST-PM-7545-1-UVA...
- Page 2 Revision Log Revisions Description Letter Date 04-16-2018 Initial release.
-
Page 3: Replacing Air Filter
COPPER ROD AND UVA LAMPS IN MODEL 7545-1 Parts Required: (1) Air Filter, (4) Velcro Discs, (6) Lamps, (1) Antimicrobial Copper Rod Tools Required: Drill, Phillips Screwdriver Bit Parts included in Preventative Maintenance Kit for Model 7545-1-UVA are shown below. Lamps Air Filter Antimicrobial Copper Rod... - Page 4 4. Unfasten (4) Velcro connections on air filter and discard filter as shown below. Note: Remove and discard any Velcro discs with loops that may still be attached to hook discs located on condenser and replace hook discs as needed. Velcro Connection Locations Air Filter INST-PM-7545-1-UVA Rev A 04/16/2018...
- Page 5 Note: Once adhesive has touched air filter it cannot be adjusted. Air Filter 7. Reinstall lower grill assembly by engaging (2) bottom latches. 8. Secure lower grill assembly with retained (2) screws using Phillips screwdriver bit. INST-PM-7545-1-UVA Rev A 04/16/2018...
- Page 6 1. Remove bottom shelf as shown below. Bottom Shelf 2. Remove (6) screws securing access panel using Phillips screwdriver bit as shown below. Note: Retain Screws. Access Panel Screw Locations 3. Remove access panel as shown below. Access Panel INST-PM-7545-1-UVA Rev A 04/16/2018...
- Page 7 Spring Clip Bend Flush with Humidity Diffuser 7. Reinstall humidity diffuser with antimicrobial copper rod towards front of chamber. 8. Reinstall access panel. 9. Secure access panel with retained (6) screws using Phillips screwdriver bit. 10. Reinstall bottom shelf. INST-PM-7545-1-UVA Rev A 04/16/2018...
-
Page 8: Replacing Lamps
2. Remove light bank shelf and place lamp side up on flat surface as shown below. Top Light Bank Shelf 3. Remove and discard old lamp by rotating lamp ¼ turn and lifting out of lamp sockets. Repeat for each lamp to be replaced. INST-PM-7545-1-UVA Rev A 04/16/2018... - Page 9 6. Continue to instructions for replacing additional accessory preventative maintenance items if applicable or plug in power cord and turn on chamber. 7. Reset air filter and lamp alerts by pressing Settings button on right side of Home screen as shown below. Settings Button INST-PM-7545-1-UVA Rev A 04/16/2018...
- Page 10 8. Press Maint. button as shown below. Maint. Button 9. Press Reset buttons for Replace air filter and Replace UVA lamps as shown below. Reset Buttons 10. Press Home button as shown below. Home Button INST-PM-7545-1-UVA Rev A 04/16/2018...
