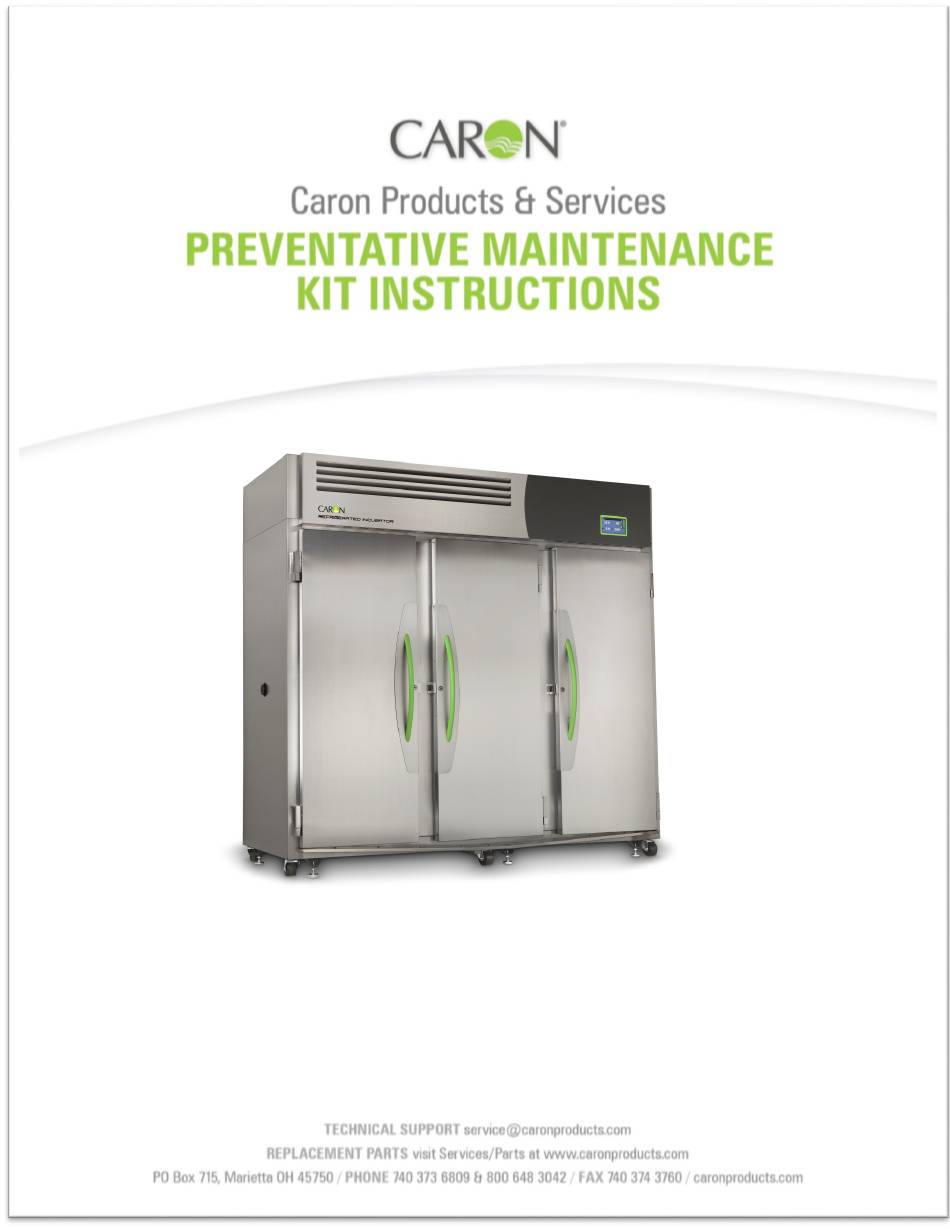

- Page 1 MODEL 7001-75 INST-PM-7001-75...
-
Page 2: Revision Log
Revision Log Revisions Description Letter Date 12-22-2016 Initial release. New cover. 04-03-2018 Added new air filter instructions for template, new 02-27-2020 parts pics. 08-28-2021 Added new air filter instructions for tab design. - Page 3 INSTRUCTIONS FOR REPLACING AIR FILTER IN MODEL 7001-75 Parts Required: (1) Air Filter, (4) Velcro Discs Tools Required: Phillips Screwdriver Parts included in Preventative Maintenance Kit for Model 7001-75 are shown below. (1) Air Filter (4) Velcro Discs REPLACING AIR FILTER Note: Photos may have a different appearance depending on chamber options.
- Page 4 Trimming Air Filter included with PM Kit to prepare new air filter for installation. Note: Remove and discard any Velcro discs with loops that may still be attached to hook discs located on condenser and replace hook discs as needed. Velcro Disc Locations Air Filter INST-PM-7001-75 Rev D 08/28/2021 Page 4...
- Page 5 5. Secure control panel bezel with retained (2) screws using Phillips screwdriver bit. Note: Silver screw fastens left side of control panel bezel and black screw fastens right side. Continue to RESETTING AIR FILTER ALERT on page INST-PM-7001-75 Rev D 08/28/2021 Page 5...
- Page 6 4. Secure control panel bezel with retained (2) screws using Phillips screwdriver. Note: Silver screw fastens left side of control panel bezel and black screw fastens right side. 5. Discard (4) Velcro discs included in PM Kit. INST-PM-7001-75 Rev D 08/28/2021 Page 6...
- Page 7 2. Reset air filter and atomizer alerts by pressing Settings button on right side of Home screen as shown below. Settings Button 3. Press Maint. button as shown below. Maint. Button 4. Press Reset buttons for Replace air filter as shown below. Reset Buttons INST-PM-7001-75 Rev D 08/28/2021 Page 7...
- Page 8 5. Press Home button as shown below. Home Button 6. Continue to instructions for replacing additional accessory preventative maintenance items if applicable. INST-PM-7001-75 Rev D 08/28/2021 Page 8...
