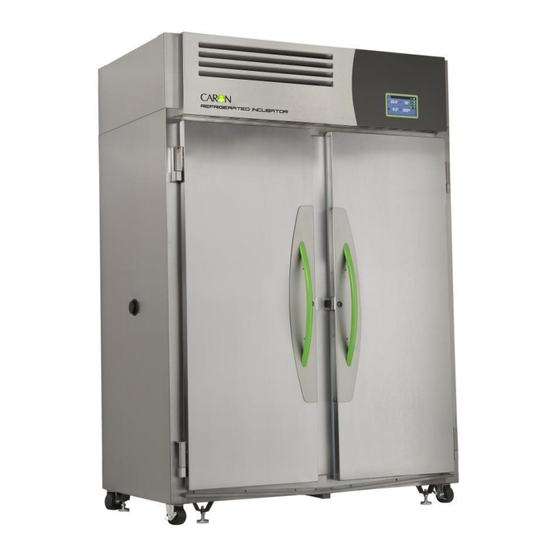

caron 7001-50 Quick Start Manual

Download this manual

MODEL 7001-50

INST-PM-7001-50

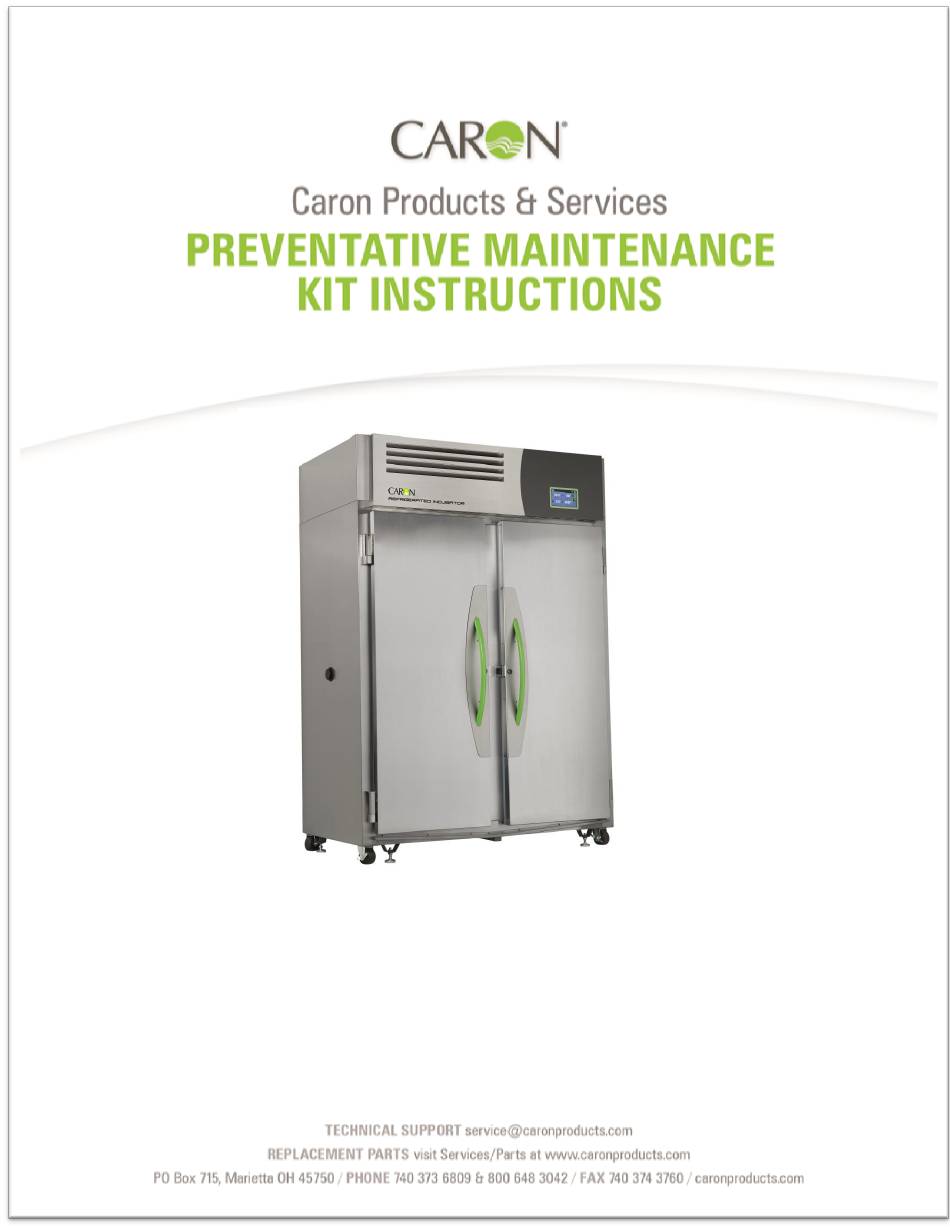

Page 1 MODEL 7001-50 INST-PM-7001-50...
Page 2 Revision Log Revisions Description Letter Date 10-14-2016 Initial release. New cover. 04-03-2018...
Page 3: Replacing Air Filter
INSTRUCTIONS FOR REPLACING AIR FILTER IN MODEL 7001-50 Parts Required: (1) Air Filter, (4) Velcro Discs Tools Required: Phillips Screwdriver Parts included in Preventative Maintenance Kit for Model 7001-50 are shown below. Velcro Discs Air Filter REPLACING AIR FILTER Note: Photos may have a different appearance depending on chamber options.
Page 4 Air Filter 5. Attach new Velcro discs with loops to hook discs condenser corners with adhesive facing outwards as shown below. Velcro Disc Locations INST-PM-7001-50 Rev B 04/03/2018...
Page 5 9. Continue to instructions for replacing additional accessory preventative maintenance items if applicable or plug in power cord and turn on chamber. 10. Reset air filter alert by pressing Settings button on right side of Home screen as shown below. Settings Button INST-PM-7001-50 Rev B 04/03/2018...
Page 6 11. Press Maint. button as shown below. Maint. Button 12. Press Reset button for Replace air filter as shown below. Reset Button 13. Press Home button as shown below. Home Button INST-PM-7001-50 Rev B 04/03/2018...
