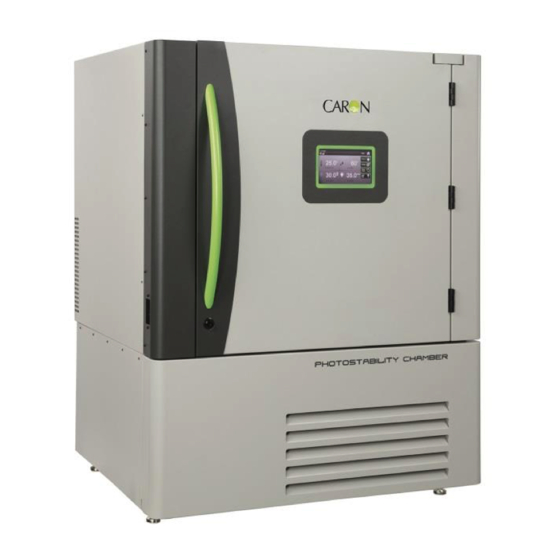

Summary of Contents for caron 7545-2

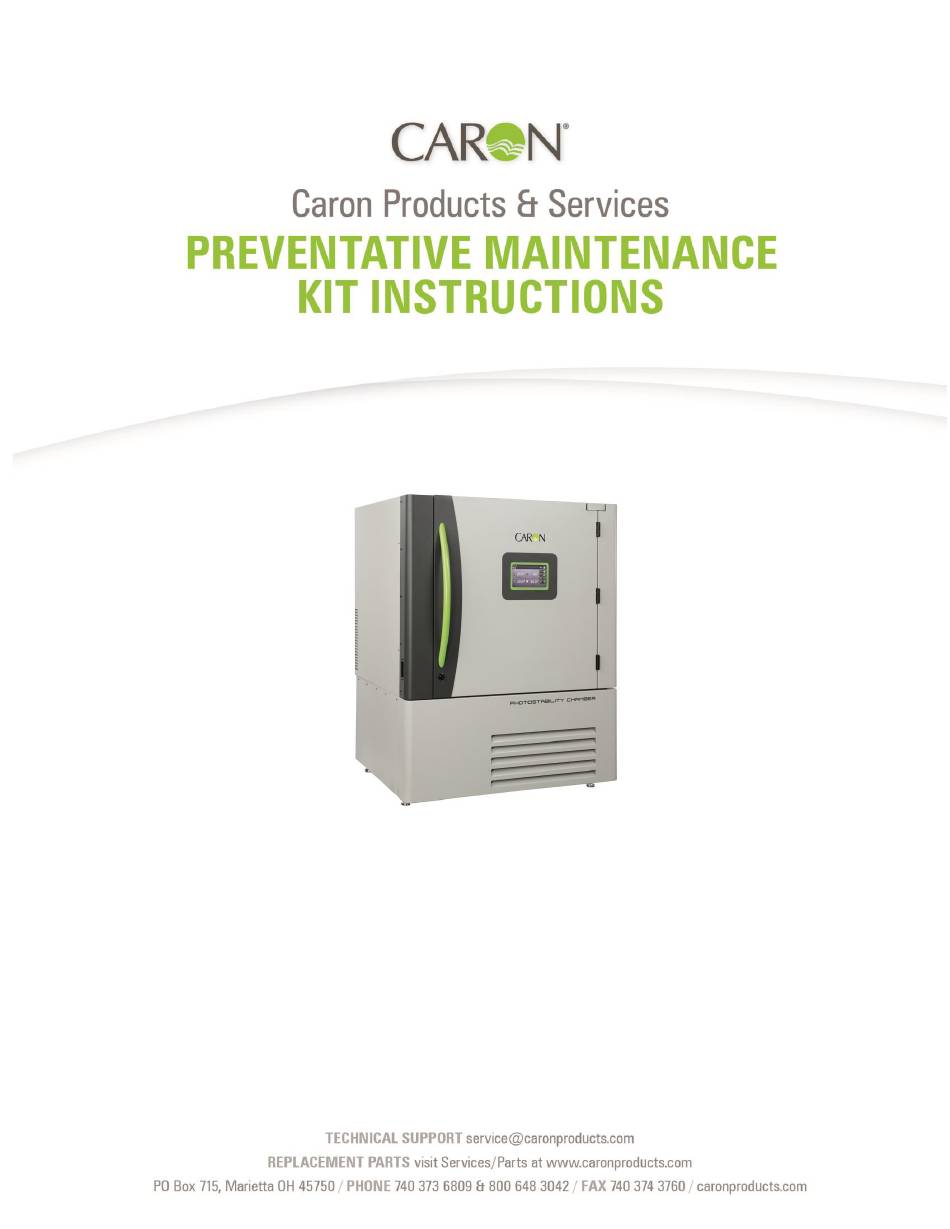

- Page 1 MODEL 7545-2 INST-PM-7545-2-UVA...
- Page 2 Revision Log Revisions Description Letter Date 04-16-2018 Initial release.
-
Page 3: Replacing Air Filter
COPPER ROD AND UVA LAMPS IN MODEL 7545-2 Parts Required: (1) Air Filter, (4) Velcro Discs, (6) Lamps, (1) Antimicrobial Copper Rod Tools Required: Drill, Phillips Screwdriver Bit Parts included in Preventative Maintenance Kit for Model 7545-2-UVA are shown below. Antimicrobial Copper Rod Air Filter Velcro Discs... - Page 4 4. Unfasten (4) Velcro connections on air filter and discard filter as shown below. Note: Remove and discard any Velcro discs with loops that may still be attached to hook discs located on condenser and replace hook discs as needed. Velcro Connection Locations Air Filter INST-PM-7545-2-UVA Rev A 04/16/2018...
- Page 5 Note: Once adhesive has touched air filter it cannot be adjusted. Air Filter 7. Reinstall lower grill assembly by engaging (2) bottom latches. 8. Secure lower grill assembly with retained (2) screws using Phillips screwdriver bit. INST-PM-7545-2-UVA Rev A 04/16/2018...
-
Page 6: Replacing Lamps
1. Slide top light bank shelf out of chamber as shown below. Top Light Bank Shelf 3. Remove light bank shelf and place lamp side up on flat surface as shown below. Top Light Bank Shelf INST-PM-7545-2-UVA Rev A 04/16/2018... - Page 7 5. Insert new lamp ends into lamp sockets and rotate ¼ turn. Repeat for each lamp to be replaced. 6. Slide light bank shelf into chamber and press firmly to seat rear connector as shown below. Light Bank Shelf Press Here INST-PM-7545-2-UVA Rev A 04/16/2018...
- Page 8 1. Remove bottom shelf as shown below. Bottom Shelf 2. Remove (6) screws securing access panel using Phillips screwdriver bit as shown below. Note: Retain Screws. Access Panel Screw Locations 3. Remove access panel as shown below. Access Panel INST-PM-7545-2-UVA Rev A 04/16/2018...
- Page 9 9. Secure access panel with retained (6) screws using Phillips screwdriver bit. 10. Reinstall bottom shelf. 11. Continue to instructions for replacing additional accessory preventative maintenance items if applicable or plug in power cord and turn on chamber. INST-PM-7545-2-UVA Rev A 04/16/2018...
- Page 10 Settings Button 13. Press Maint. button as shown below. Maint. Button 14. Press Reset buttons for Replace air filter and Replace UVA lamps as shown below. Reset Buttons 15. Press Home button as shown below. Home Button INST-PM-7545-2-UVA Rev A 04/16/2018...
