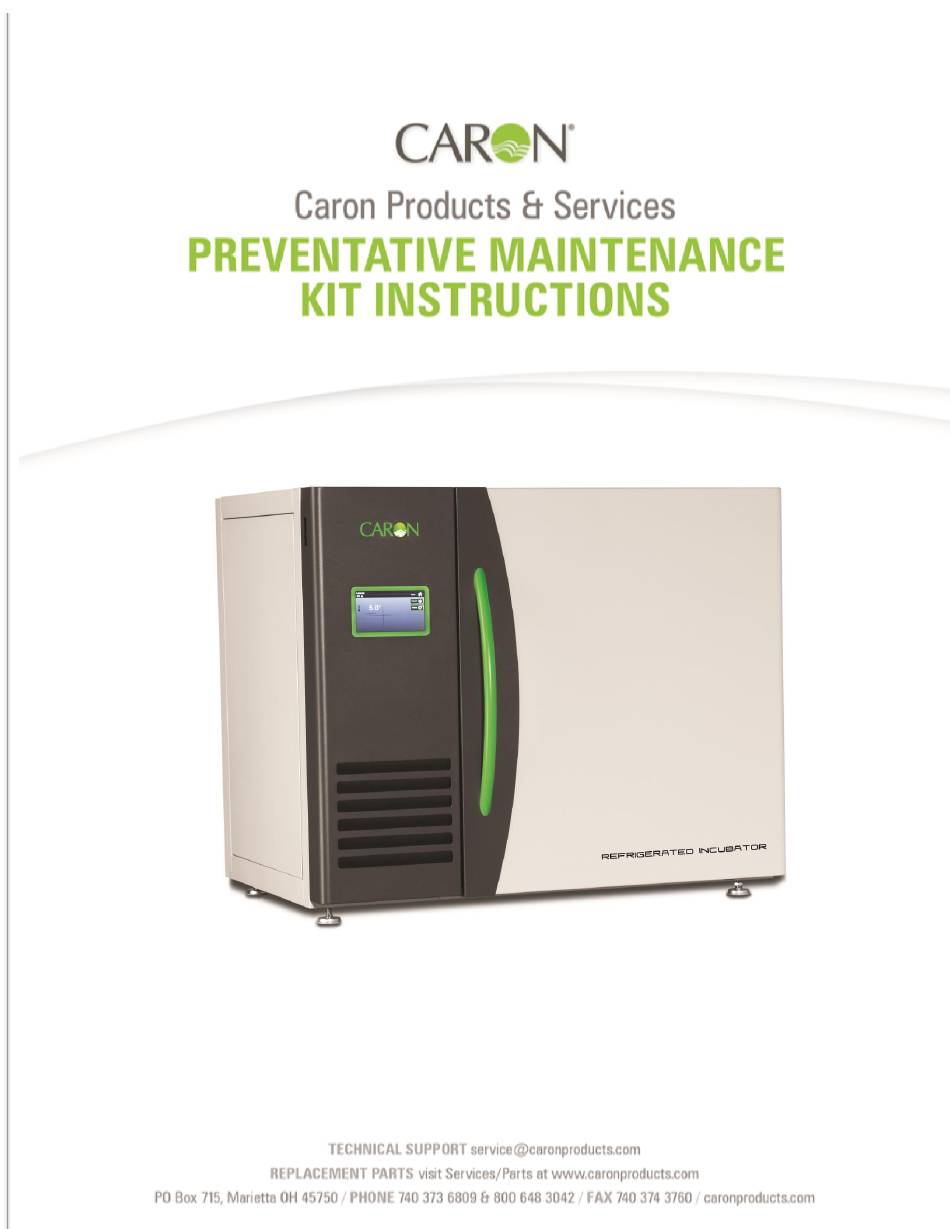

- Page 1 MODEL 7001-10 INST-PM-7001-10...
- Page 2 Revision Log Revisions Description Letter Date 10-11-2016 Initial release. New cover. 04-02-2018...
-
Page 3: Replacing Air Filter
INSTRUCTIONS FOR REPLACING AIR FILTER IN MODEL 7001-10 Parts Required: (1) Air Filter Tools Required: Flatblade Screwdriver Parts included in Preventative Maintenance Kit for Model 7001-10 are shown below. Air Filter REPLACING AIR FILTER Note: Photos may have a different appearance depending on chamber options. - Page 4 Air Filter with Cardboard towards Chamber 5. Reinstall air filter cover using flatblade screwdriver. Note: Fasten air filter cover by turning screw no more than ¼ turn. 6. Continue to instructions for replacing additional accessory preventative maintenance items if applicable. INST-PM-7001-10 Rev B 04/02/2018...
- Page 5 7. Reset air filter alert by pressing Settings button on right side of Home screen as shown below. Settings Button 8. Press Maint. button as shown below. Maint. Button 9. Press Reset button for Replace air filter as shown below. Reset Button 10. Press Home button as shown below. Home Button INST-PM-7001-10 Rev B 04/02/2018...
