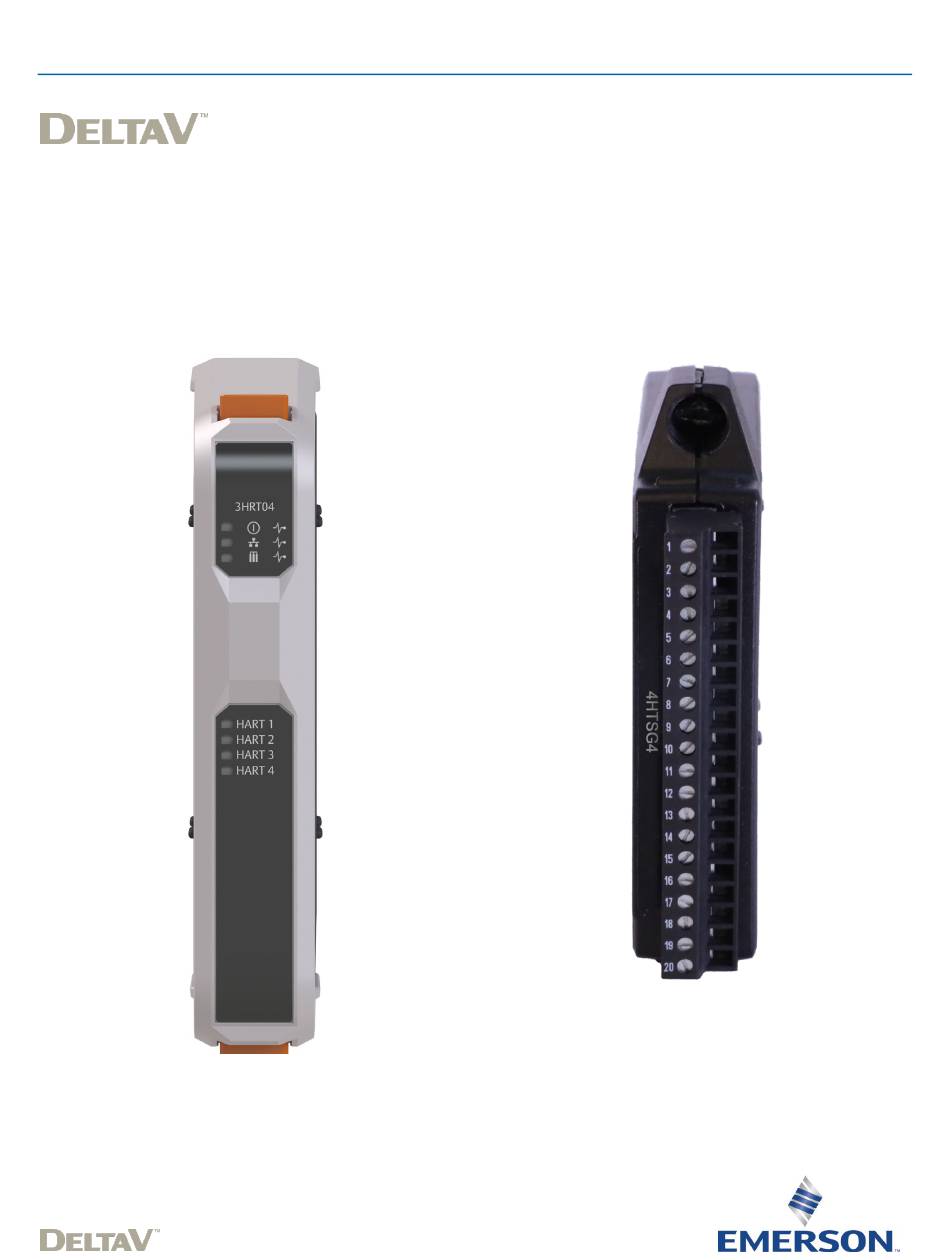

- Page 1 DeltaV FB3000 RTU 4-Channel HART I/O Module Field Installation Guide ® D301918X012 April 2025 FB3000 RTU 4-Channel HART ® Module Field Installation Guide (3HRT04, 3HTSG4) 3HRT04 Logic Module 3HTSG4 Personality Module...
- Page 2 Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs.
- Page 3 April 2025 HART Input/Output Channels ® (3HRT04/3HTSG4) The DeltaV FB3000 RTU supports a HART (Highway Addressable Remote Transducer) ® module with four (4) channels. This allows the FB3000 to communicate with external HART devices such as transmitters. The 4-Channel HART I/O Module consists of: A logic module (3HRT04) which resides in the upper position of the slot.
- Page 4 Note Whether or not HART devices receive power from an external power supply, you must provide power to the loop terminals (LP+, LP-) of the DeltaV FB3000 power block (3PWBLK). You can configure a channel for point-to-point operation in which case it communicates with a single HART device.
- Page 5 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Removing/Replacing the 3HRT04 Logic Module DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION : Ne jamais ouvrir le boîtier dans une zone dangereuse.
- Page 6 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Depress the orange tabs at the top and bottom of the 3HRT04 logic module to release the module and slide it straight out of the slot. Removing an I/O Module Press the new replacement module into the slot until it is properly seated.
- Page 7 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Removing/Replacing the 3HTSG4 Personality Module DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION : Ne jamais ouvrir le boîtier dans une zone dangereuse.
- Page 8 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Detaching the Terminal Block with Wires Still Attached Using a ¼” slotted blade screwdriver, loosen the captive fastening screw at the top of the personality module and slide the module straight out of the slot.
- Page 9 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Replacing a Personality Module If you replaced an existing personality module with an identical replacement, reattach the terminal block by pressing it into place. If installing a 3HTSG4 personality module into a slot that was previously unused, follow the wiring instructions in the next section.
- Page 10 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Wiring the 3HTSG Personality Module DANGER EXPLOSION HAZARD: Never open the enclosure in a hazardous area. DANGER RISQUE D’EXPLOSION : Ne jamais ouvrir le boîtier dans une zone dangereuse.
- Page 11 Note Whether or not HART devices receive power from an external power supply, you must provide power to the loop terminals (LP+, LP-) of the DeltaV FB3000 power block (3PWBLK). Figure 2. HART Wiring – Point-to-Point Mode- External Power Supply...
-
Page 12: Multi-Drop Mode
DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Multi-Drop Mode In Multi-Drop Mode, only the HART digital signaling (FSK – Frequency Shift Keying) is present and no 4-20mA analog current signal is permitted (no AO allowed). Each device can support a maximum 4mA bias current. - Page 13 Note Whether or not HART devices receive power from an external power supply, you must provide power to the loop terminals (LP+, LP-) of the DeltaV FB3000 power block (3PWBLK). Figure 4. HART Wiring – Multi-Drop Mode on Channel 1 - External Supply...
- Page 14 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Analog Input Mode (HART Communication Disabled) If you have an unused HART channel, you can use it as a 4-20mA analog input (AI current mode). In DeltaV FBxConnect, you must Enable the 250 Ohm Termination Resistor and set the HART Comm Mode to Disabled.
- Page 15 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Analog Output Mode (HART Communication Disabled) If you have an unused HART channel, you can use it as a 4-20mA current sinking analog output. In DeltaV FBxConnect, you must Disable the 250 Ohm Termination Resistor and set the HART Comm Mode to Disabled.
-
Page 16: Software Configuration
DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 Software Configuration Consult the DeltaV FBxConnect online help for full details. What follows is an overview of the steps: 1. From the Configure tab in FBxConnect, click I/O Setup > HART. - Page 17 DeltaV FB3000 RTU HART I/O Module Field Installation Guide ® D301918X012 April 2025 9. Select the variables you want to poll from the device, then click Save and Close the screen. If this channel uses multi-drop, repeat steps 8 and 9 for any unconfigured devices.
- Page 18 Emerson logo are trademarks and service marks of Emerson Electric Co. The Singapore 128461 DeltaV logo is a mark of one of the Emerson family of companies. All other marks T +65 6777 8211| F +65 6777 0947 are the property of their respective owners.
