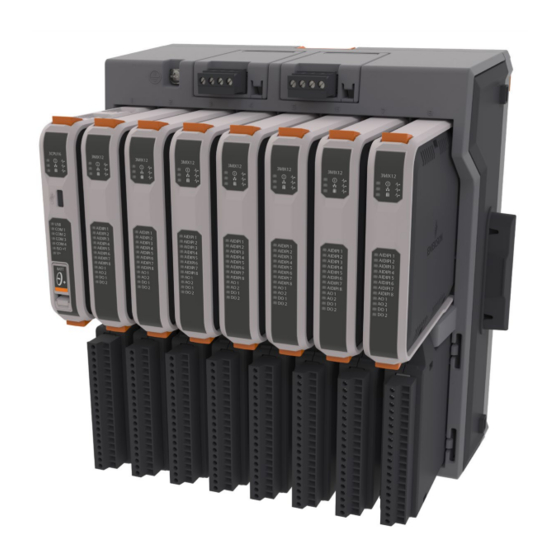

FB3000 RTU Power Supply Module and Chassis Field Installation Guide
FB3000 RTU Power Supply Module &
Chassis Field Installation Guide
 3DIN08 – DIN Rail Mounting Plate
 3CH08C – 8 Slot Chassis
 3CHO8A – 8 Slot Chassis
 3PWBLK – Power Block
Energy and Transportation Solutions
D301874X012
November 2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the FB3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson FB3000

Summary of Contents for Emerson FB3000

  • Page 1 FB3000 RTU Power Supply Module and Chassis Field Installation Guide D301874X012 November 2023 FB3000 RTU Power Supply Module & Chassis Field Installation Guide  3DIN08 – DIN Rail Mounting Plate  3CH08C – 8 Slot Chassis  3CHO8A – 8 Slot Chassis ...
  • Page 2 Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs.

  • Page 3: Removing A Power Module

    Removing/Replacing the Power Supply Module The FB3000 8-slot chassis supports up to two power supply modules (3PWBLK). If you have two power modules installed, you can remove “hot swap” either one of them – but not both – while the RTU is operating.

  • Page 4: Replacing A Power Module

    FB000 RTU Power Supply Module and Chassis Field Installation Guide D301874X012 November 2023 Push a flathead screwdriver into the opening in the lower right of the power module and rotate the handle of the screwdriver upwards to rotate the module upwards.

  • Page 5: Wiring The Power Supply Module

    Effectuer cette opération en zone dangereuse peut provoquer une explosion. The FB3000 supports both 12V and 24V power supplies. It accepts DC voltage from 10.5 to 30V; the amount of power required varies depending upon the options used.
  • Page 6 D301874X012 November 2023 Removing/Replacing the Chassis The 8-slot FB3000 supports two chassis versions: 3CHO8C (CSA approved) and 3CHO8A (ATEX approved). The 4-slot FB3000 supports two chassis versions: 3CHO4C (CSA approved) and 3CHO4A (ATEX approved). The procedure is the same regardless of chassis type.
  • Page 7 FB000 RTU Power Supply Module and Chassis Field Installation Guide D301874X012 November 2023 While leaving communication cables connected, remove the CPU module from slot 1 by depressing the orange tabs at the top and bottom of the module, and sliding it out. Carefully set it aside with any cables still attached. Removing the CPU Module Leaving wiring connected, use a ¼”...
  • Page 8 FB000 RTU Power Supply Module and Chassis Field Installation Guide D301874X012 November 2023 Going from left to right starting with the second slot in the chassis, remove the first I/O module present by depressing the orange tabs at the top and bottom of the module, and slide it out.
  • Page 9 Replace any slot covers removed in step 9 and then tighten the captive fastening screws. Reinstall each of the power modules. See Removing/Replacing the Power Module more information. Restore power to the FB3000 by re-connecting the power terminal blocks to the power modules. See for more information. Removing/Replacing the Power Module...
  • Page 10 FB000 RTU Power Supply Module and Chassis Field Installation Guide D301874X012 November 2023 Adding/Removing/Replacing the DIN Rail Mounting Plate The back of the RTU chassis includes a removeable mounting plate with a slot for DIN- rail mounting. The slot accommodates either a 7.5 or a 15mm DIN rail. DANGER Switch the process this RTU controls over to whatever manual/backup system you have in place.
  • Page 11 Chapter 5 FB3000 RTU Instruction Manual [D301851X012]) for details.) Remove power from the FB3000 by disconnecting the terminal block(s) from the power module(s). See for more information. Removing/Replacing the Power Module Remove each of the power modules. See Removing/Replacing the Power Module more information.
  • Page 12 FB000 RTU Power Supply Module and Chassis Field Installation Guide D301874X012 November 2023 Chassis Mounting – 8-slot at left, 4-slot at right If you are replacing the existing mounting plate, press the orange upper tab to retract the DIN rail clips, and pull the mounting plate off the DIN rail and set it aside.
  • Page 13 FB000 RTU Power Supply Module and Chassis Field Installation Guide D301874X012 November 2023...
