4.4.2 Setting the Laser Power

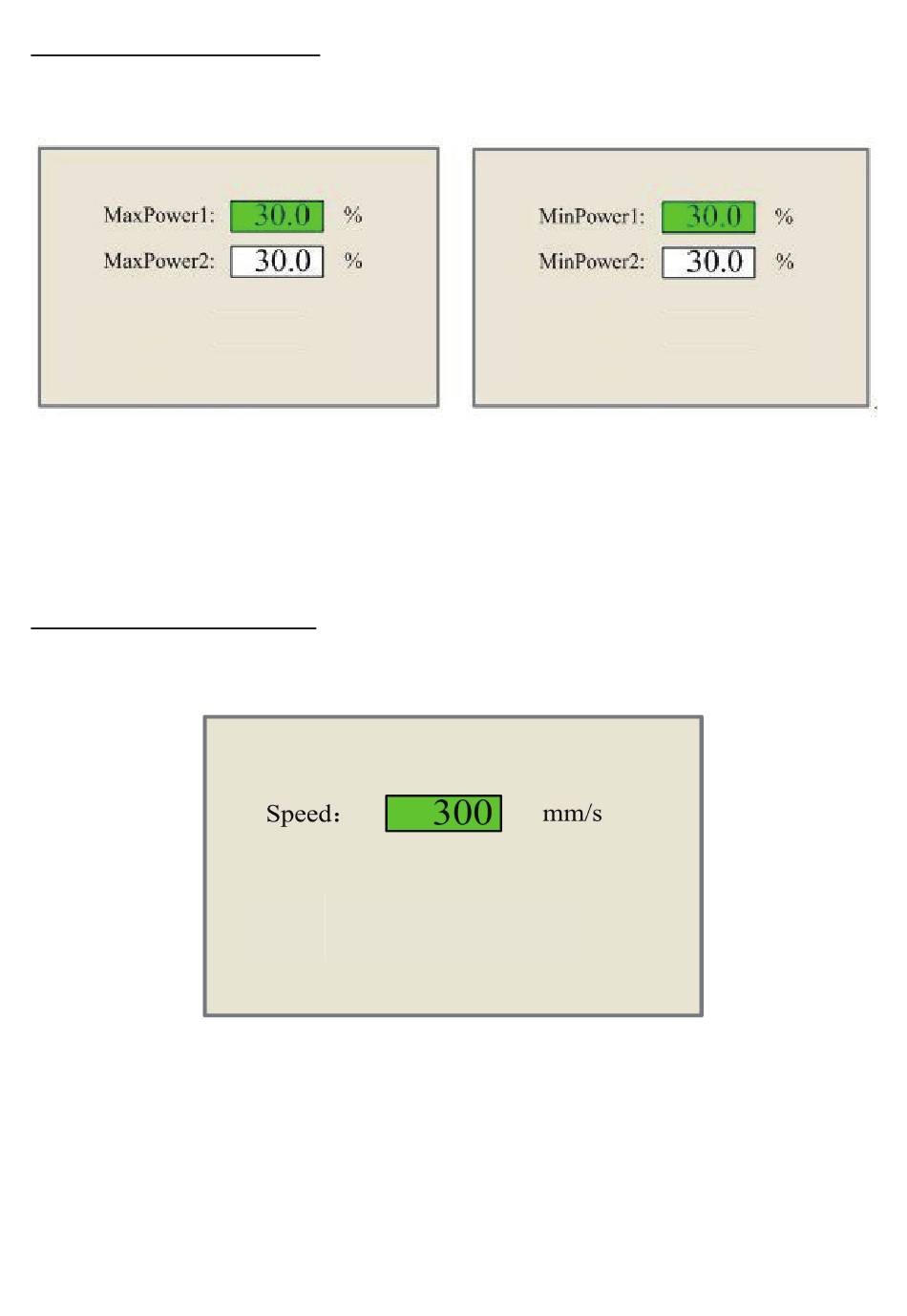

Select Max-Power or Min-Power on the main interface, and the following displays will appear.
When Z/U is pushed, the green block can move up and down to denote the changing item. Then ▲ or ▼ and ��
or �� can be used to change the value. Press ENTER to save the change. Press ESC to invalidate the change and
return to the main interface.
4.4.3 Setting the Laser Speed
Push SPEED on the main interface, and the following dialogue box will appear:
A cursor will appear when pushing �� or ��. Move the cursor to the numeral area and push ▲ or ▼ to change the
value. Press ENTER to save the change. Press ESC to invalidate the change and return to the main interface.
