Omtech SH-H1309 User Manual page 13

Console Screen

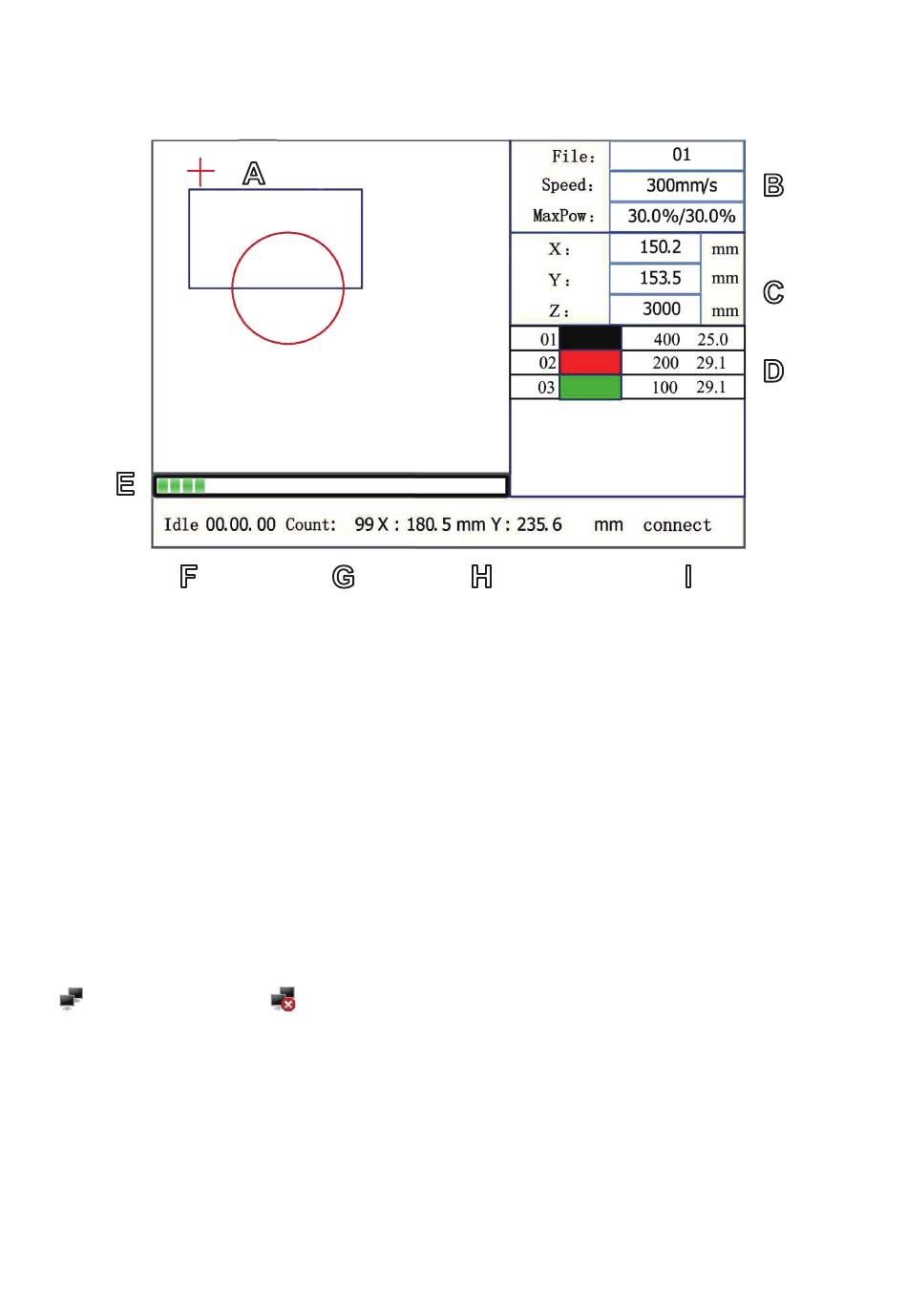

A. Graphic Display Area: Traces the processed file image during file preview display and processing.
B. Parameter Display Area: Displays the file number, speed, and maximum power of the current processing file.
C. Coordinate Display Area: Displays the coordinate value of the current position of the laser head.
D. Layer Display Area: Displays the layer parameters of the current processing file or the layer parameters of the
preview file. The parameters from left to right are: layer, colour, layer speed, and layer maximum power.
E. Progress Bar: Displays the current processing progress.
F. System Status: Displays the current working status of the system, which are idle, paused, completed, or
running. The working time is displayed on the right.
G. Batch Process Number: Displays the processed quantity of the current processing file.
H. File Dimensions: Displays the dimension of the current file.
I. Network Status: Displays the status of connection to the Internet. When the network connection is successful,
is displayed. Otherwise, is displayed.
