Omtech SH-H1309 User Manual page 12

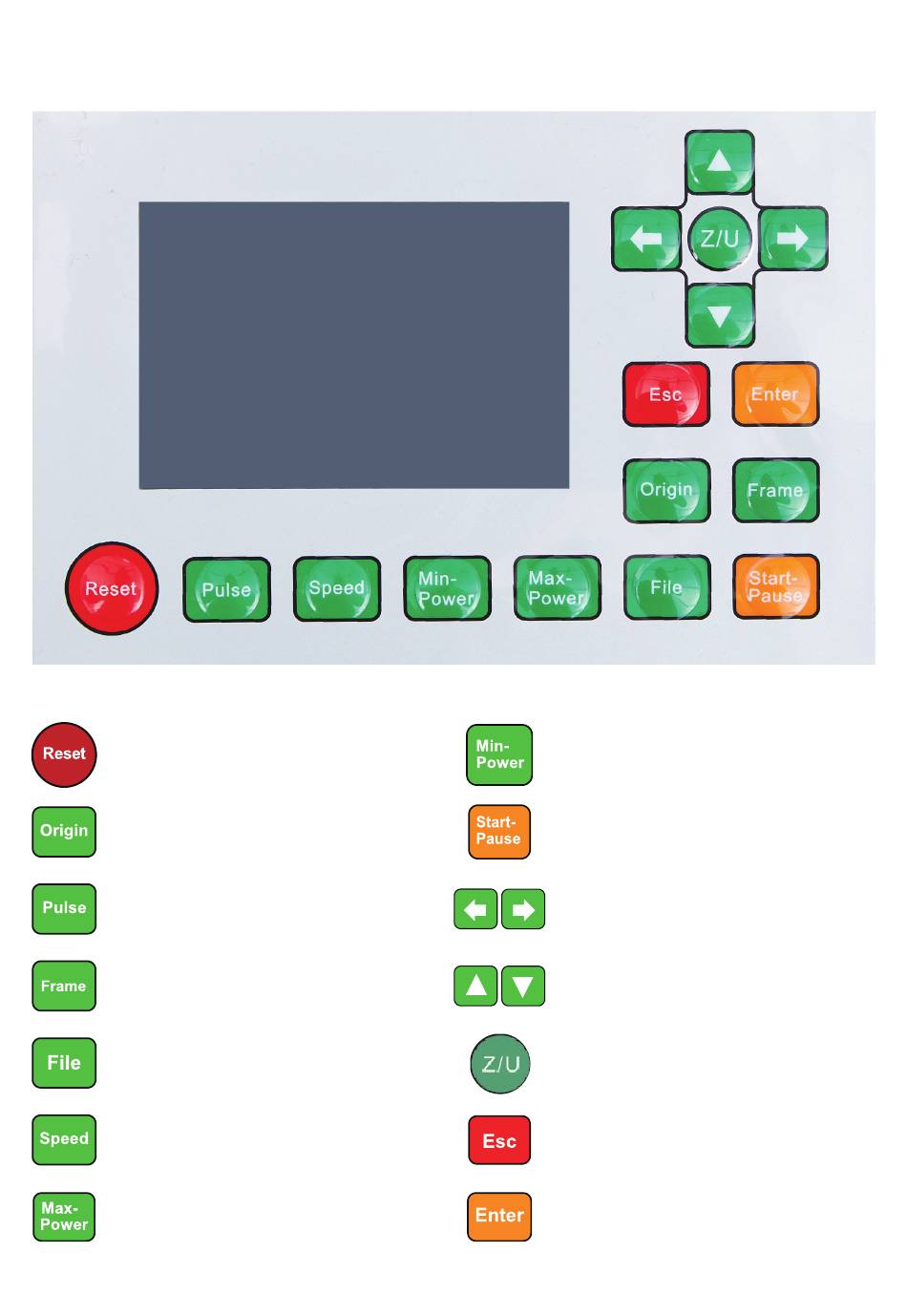

Control Console
Returns the machine to the saved default
parameters.
Sets the starting point for the laser head.
Manually fires the laser.
Traces the outline of the current design
for sizing.
Opens the file control menu.
Sets the speed of the current running layer
or of the direction keys' movement.
Sets the maximum laser power of the
current running layer or sets the power
of the laser.
Sets the minimum laser power of the
current running layer.
Starts or pauses the work.
Moves the laser head along the X axis or
the left/right cursor. Moves the laser head
along the Z or U axis if Z Move or U Move
in the function menu has been selected.
Moves the laser head along the Y axis or the
up/down cursor.
Opens the function menu.
Stops work or exits from a submenu.
Enters a command or confirms your
selection.
8
