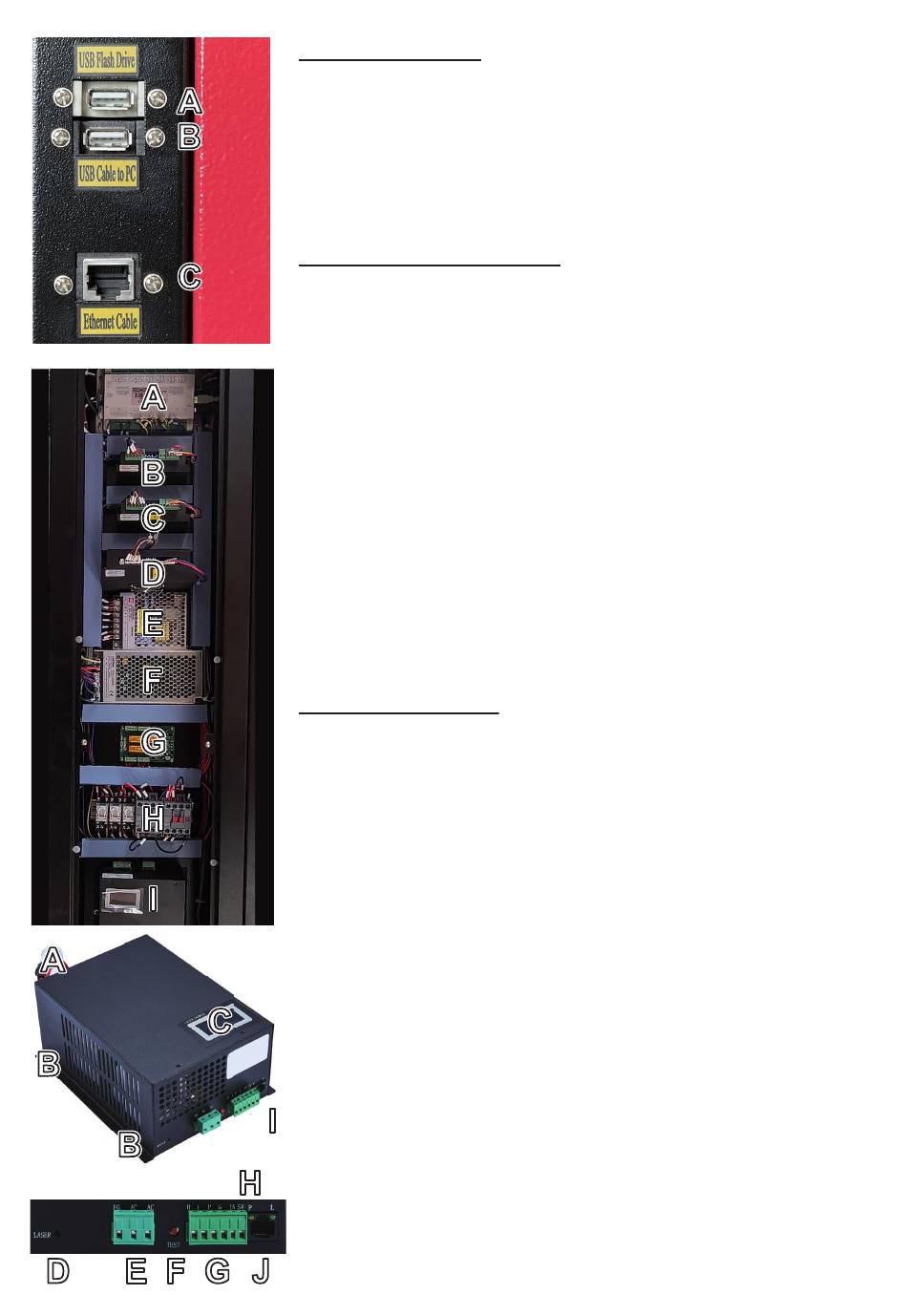

Connection Inputs
A. USB Port—This port allows you to load and save designs and parameters
directly onto the engraver.
B. USB Line Port—This port connects to your control computer and its
engraving software using any of its USB ports.
C. Ethernet Port—This port connects to your control computer and its
software either directly or via the internet.
Bottom Right Access Door
A. Mainboard—This circuit board controls the engraving process, responding
to commands from your engraving software or the machine's control panel.
B. Y-Axis Driver—This device moves the X rail along the Y rail.
C. X-Axis Driver—This device moves the laser head along the X rail.
D. Z-Axis Driver—This device moves the workbed up and down.
E. Control Power Supply—This device powers the machine's control panel.
F. Safety Power Supply—This device powers the machine's safety relay,
indicator lights, and alternating current contactors.
G. Safety Relay—This device shuts off the laser's power when either the cover
or the front access door is opened during use or when the emergency shutoff
button is pressed.
H. Alternating Current Contactor—This device forms a safety dual circuit
with the safety relay by making and breaking electrical connections between
the laser and the laser power supply.
I. Laser Power Supply—This device transforms standard electricity into the
extremely high voltage charge necessary for the laser tube.
Laser Power Supply
A. High-Voltage Wire—This line is connected to the laser tube's anode or
positive end, providing high-voltage current to power the laser.
B. Mounting Holes—These standard slots allow simple installation and
removal.
C. Digital Display—This display provides the real-time current to the laser
tube in milliamps and notification of any problems with the laser or water
systems.
D. Water Indicator Light—When connected, this light shows the water
cooling system is operating.
E. Laser Signal Indicator Light—This light shows the laser tube is operating.
F. Laser Indicator Light—This light shows when current is being sent to the
laser tube.
G. Main Power Terminal—This terminal block holds the power supply's
connection to the engraver's grounding (FG) and to the main power supply
(AC).
H. Test Button—This button is used to attempt to test fire the laser when
troubleshooting problems. If the laser fires successfully, the problem will
usually be with the control panel or its connections.
I. Connection Terminal—This terminal block holds the connections to the
high (H) and low level output (L), the water protection switch (P), another
ground (G), and two laser signal controls (IN & 5V).
J. Ethernet Port—This port allows you to connect the laser power supply to
an external ammeter.
