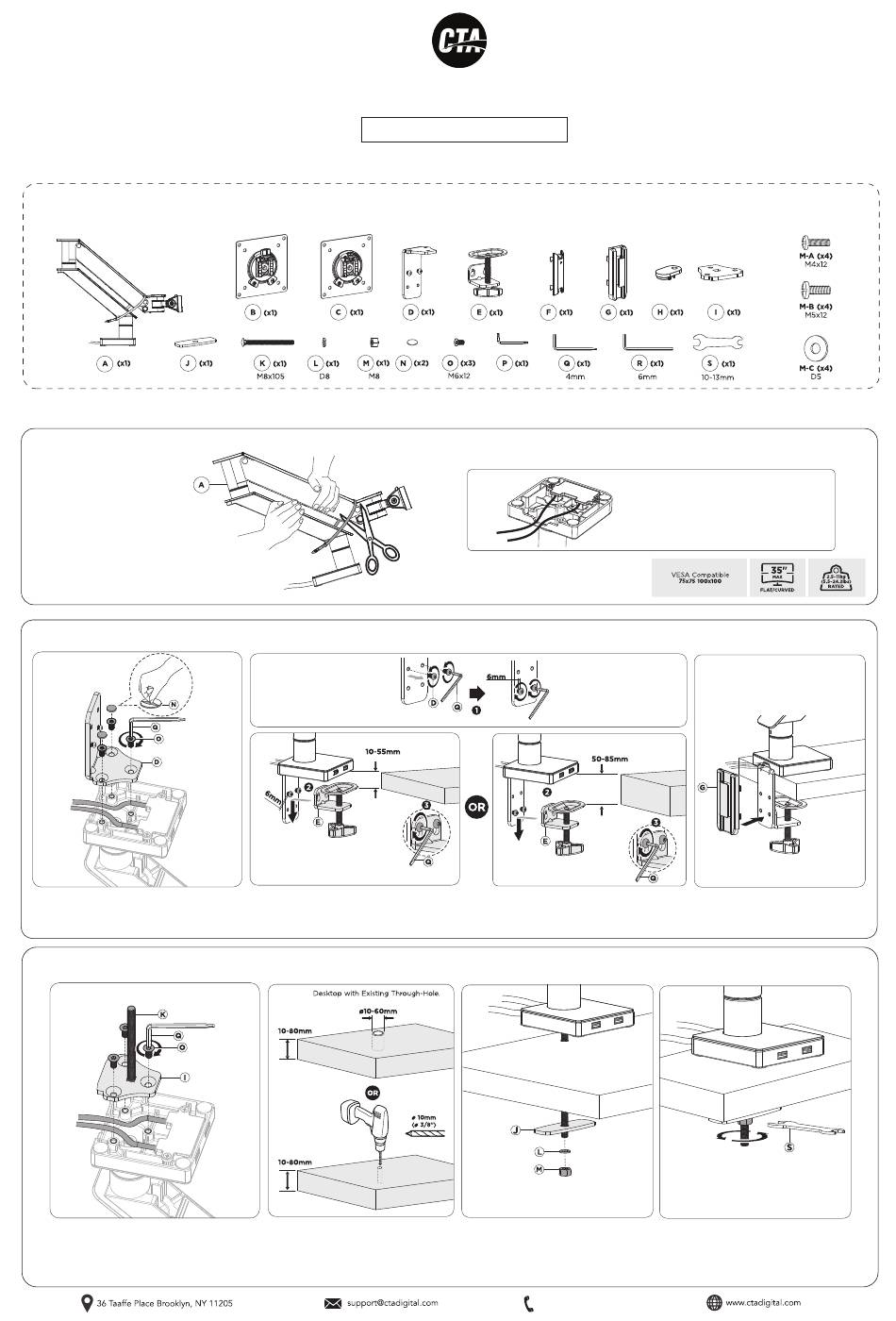

CTA ADD-GSMAG Instruction Manual

Gas Spring Monitor Arm with 2 USB Ports
CONTENTS:
INSTALLATIONS:
1
PRE-SETUP
1A. Firmly hold the two halves of the spring arm
together and have another person cut off the
cable tie from around the spring arm. Slowly
release the pressure on the spring arm and allow
it to gradually stretch to its full extension.
2
SETTING UP CLAMP MOUNT OPTION
2A. Align L-shape component(D) with base of clamp mount
as shown above. Rotate in screws (O) through using
provided tool (Q) until securely tighten. Afterwards peel off
sticker back of padding (N) and place firmly on the screws
(O).
3
SETTING UP GROMMET MOUNT OPTION
3A. Alight grommet mount (K) with base of clamp mount as
shown above. Rotate in screws (O) until securely fastened.
ADD-GSMAG / ADD-GSMAR
INSTRUCTION - MANUAL
Security VESA
Non-Security VESA
Plate Option with Plate Option using
provided (P) tool to
knob turn to
lock/unlock
lock/unlock
2B. Identify the overall thickness of the surface the clamp will be mounting on. If the thickness is in the 10-55mm range, you
will be using the higher setting on the L-shape bracket of the base. If the thickness is in the 50-85mm range, you will be using
the lower setting. Rotate in the screws (D) of the bracket until halfway in leaving some space. Hook on the knob component
(E). After hooked on, use the provided tool (Q) and securely tighten the screws (D) until securely fastened.
**Powerdrill not
included and for
illustration
purposes only
3B. Using drill (not included), drill a 10mm diameter
hole for the grommet mount installation. If existing
hole is available, make sure diameter is in the
10-60mm range prior to setup for proper installation.
3C. Insert the grommet mount (K) with clamp as
shown. Once through the surface, rotate in the rest
of the grommet mount components (J, L, M) using
your hands initially. Make sure all the components
are rotated as far as you can go with no space gaps.
888-733-4448
1B. Prior to beginning the grommet or clamp
installation - press the USB cables into the groove
as shown to properly setup.
2C. Clip on tool cradle (G) on the back as
illustrated.
3D. Using provided tool (S), rotate in the hex nut (M)
until securely tightened.
