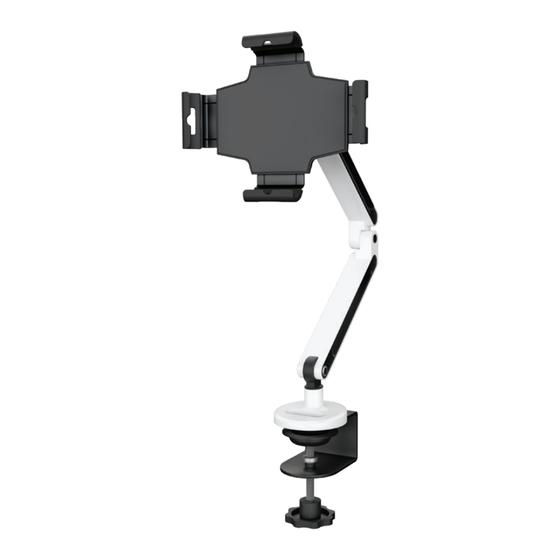

CTA PAD-ADMA Instruction Manual

CONTENTS:

INSTRUCTIONS:

1

BASE MOUNT INSTALLATION

Find the included base
pad (shown above) and
peel off the backing. Align
to the underneath of the
C-Clamp and apply pad.
While the clamp is in unlocked mode, rotate the
knob at the bottom (as shown above) to loosen
or securely tighten to the table top.
3

BASE CLAMP SECURITY SETUP

2A. When the C-Clamp is securely
attached to a surface, use the
provided security tool, attach to
security component, and rotate
closewise to put the C-Clamp in an
'locked' state. To loosen, rotate
counterclockwise with the security
tool.
ALIGNING SECURITY TOOL WITH SECURITY COMPONENT
2B. Align the (2) dimples on the underneath of the
security tool into the two holes on the security
component on the clamp as shown above

ARM TO BASE CLAMP

2

ADJUSTMENTS

If you need to remove the arm
from the base clamp, take the
provided larger allen key tool,
rotate, and loosen connection
2C. Rotate counter-clockwise to
loosen and place the clamp in an
'unlocked' state. Continue rotating
until there is enough slack to rotate
the knob.Turn it clockwise to tighten
and place the clamp in a 'locked'
state.
888-733-4448
2
Remove arm from the base
clamp mount. Repeat steps
in reverse to re-install
connection
