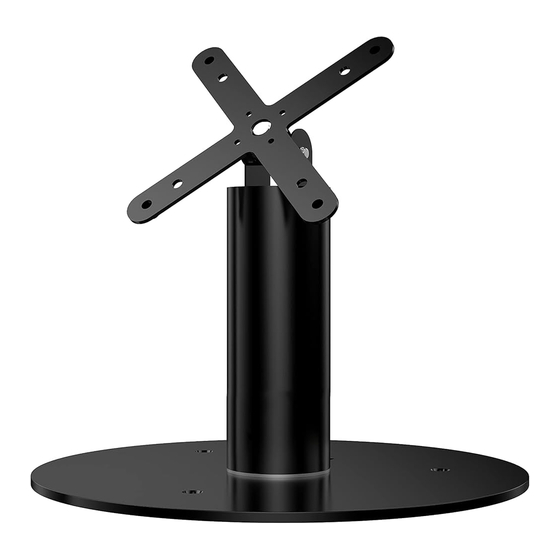

VESA Compatible Desk Mount with 360-Degree Rotation
A
x1
1. ASSEMBLING BASE TO BODY
M5 x 8
2. SETTING UP CABLE ROUTING
2A - IDENTIFY THE HOLE AT THE
BOTTOM OF THE BASE WHERE
CABLE ROUTING SHOULD BEGIN
for PAD-UGT & HSKSB (White)
INSTALLATION - MANUAL
B
A
B
x3
D
ADD-USGTWP
C
x4
x1
M5 x 12
F
x3
M5 Allen Key
H
1A - ALIGN HOLES AT THE BASE (B) WITH THE HOLES ON
THE BASE OF THE BODY(A). ROTATE IN SCREWS (D) WITH
TOOL PROVIDED (H) UNTIL SECURELY TIGHTENED.
2B - FISH THE CORD
FROM THE BASE,
THROUGH THE BODY
AND OUT THE TOP
OPENING AS SHOWN
E
D
x 4
x3
M5 x 8
M5 Nut
H
G
x3
M5 Allen Key
2C - TAKE THE CORD AT
THE BASE AND ROUTE IT
OUT THROUGH THE
OPENING IN THE BASE
FOR A SMOOTH EVEN
PLACEMENT ON THE
SURFACE
x1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CTA ADD-USGTWP
Summary of Contents for CTA ADD-USGTWP
- Page 1 VESA Compatible Desk Mount with 360-Degree Rotation for PAD-UGT & HSKSB (White) ADD-USGTWP INSTALLATION - MANUAL M5 x 8 M5 Nut M5 x 12 M5 Allen Key 1. ASSEMBLING BASE TO BODY M5 x 8 M5 Allen Key 1A - ALIGN HOLES AT THE BASE (B) WITH THE HOLES ON THE BASE OF THE BODY(A).
- Page 2 3. (OPTIONAL) FASTEN TO CREATE A FIXED SETUP 3A - USING PROVIDED TOOL (H), ROTATE CLOCKWISE AT THE SHOWN LOCATION ON KIOSK BODY TO CREATE A LOCKED FIXED SETUP. ROTATE UNTIL SECURELY TIGHTENED (OPTIONAL) MOUNTING TO SURFACE TOP **SCREWDRIVER FOR ILLUSTRATION PURPOSES AND NOT INCLUDED 4A - USING A SCREW-...
