CTA PAD-SHFS Instruction Manual

Instructions:
2. Installing the Wheels
1.Going the Cable Through the Cable Routings on the Pole
This product allows you to go through the cable from the cable routings on the pole.
1.Put the top pole to the lowest position,insert the cable into the cable routing on the bottom pole and push inward.
2.Draw out the top pole and continue to push inward the cable until the cable head is visible through the cable routing on the top pole .
Place a spring washer over the screw
bolt on the wheel.
3.Draw out the cable head from the cable routing on the top pole .

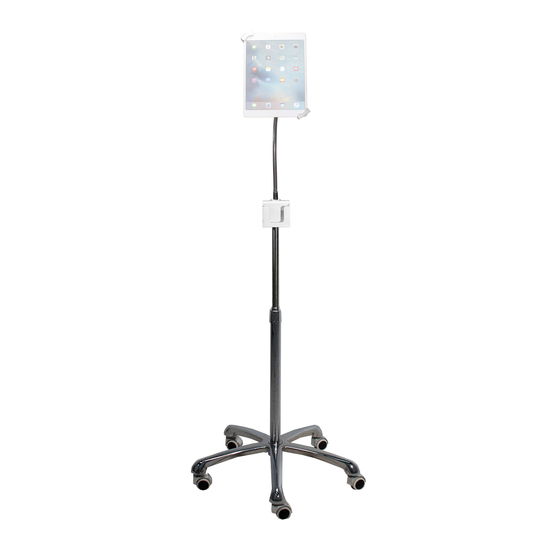

Heavy Duty Security
Gooseneck Floor Stand
& Connecting Pole Add-on
INSTRUCTION MANUAL
PAD-SHFS & ADD-POLE
Package Contents:
ADD-POLE
Instructions:
1.Attaching Foam Pad to Tablet Holder
Package Contents:
1mm Foam Pad
5mm
Foam
Pad
Select the appropriate foam pad according
to the thickness of your tablet (or tablet in its
case), then press adhesive side into center
of the tablet holder.
Section 1
1.Insert key and unlock the
holder,TAKE OUT THE KEY
then slide the arm to open
to a width according to your
need.
2. Insert key and lock the
holder,TAKE OUT THE KEY
then install your device in
and slide the arm closed
to hold tightly.
Place the screw bolt from each wheel through the metal base, then place a nut cover
over the top of each. Screw down clockwise by hand, then use wrench to tighten
further.
PAD-SCGS
Use this table to determine the appropriate
foam pad to use with your tablet.
Note: sizes refer to total tablet size with or
without a case.
Foam Pad
Thickness
10mm
1mm
Foam
Pad
10mm
UNLOCK
UNLOCK
UNLOCK
Screw Nut Cover
Spring
Washer
Metal
Base
Wheel
Tablet
Thickness:
17-27m
0.67-1.06in
/
5mm 0.51-0.91in / 13-23m
0.31-0.71in / 8-18mm
UNLOCK
UNLOCK
m
m
