CTA PAD-WMAB Installation Manual

CONTENTS:

A
x1

INSTALLATION:

1. Assembling VESA Plate:

C
A
1A. Align component (C) and (A) holes, and rotate
in screws (D) as shown above using provided allen
key tool (K) until securely tightened.

2. Attaching to Wall:

A
N
M

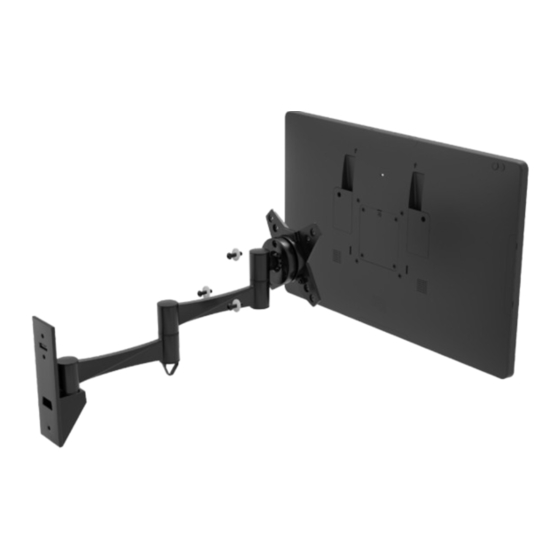

VESA Wall Mount Arm (Black)
PAD-WMAB
INSTALLATION - MANUAL
B
D
x1
C
F
x1
M5 x 14
K
D
1B. Slide down the VESA plate (B)
until attached to component (C).
2A. To drill to the wall, use
a pencil to mark your aim
points on the surface. Use
a power drill to install the
mount (A) to the wall with
provided hardware (screws
and anchors).
E
x2
x3
M5 x 10
G
x4
x4
M4 x 14
B
C

Attaching to Enclosure

J
To attach VESA enclosure, insert screws (H) through the back of the
mounting VESA plate (B) while holding the nuts (J) from the front, then rotate
using included allen key tool (K) until securely tightened.
H J
x4
x4
M5 x 10
Hex Nut
M
L
x3
x4
D5
B
1C. Rotate in screws (E) as shown above using
provided allen key tool (K) until securely tightened.
B
**Enclosure shown
for illustration only.
NOT INCLUDED
K
x1
M5 Allen Key
N
x3
E K
K
H
