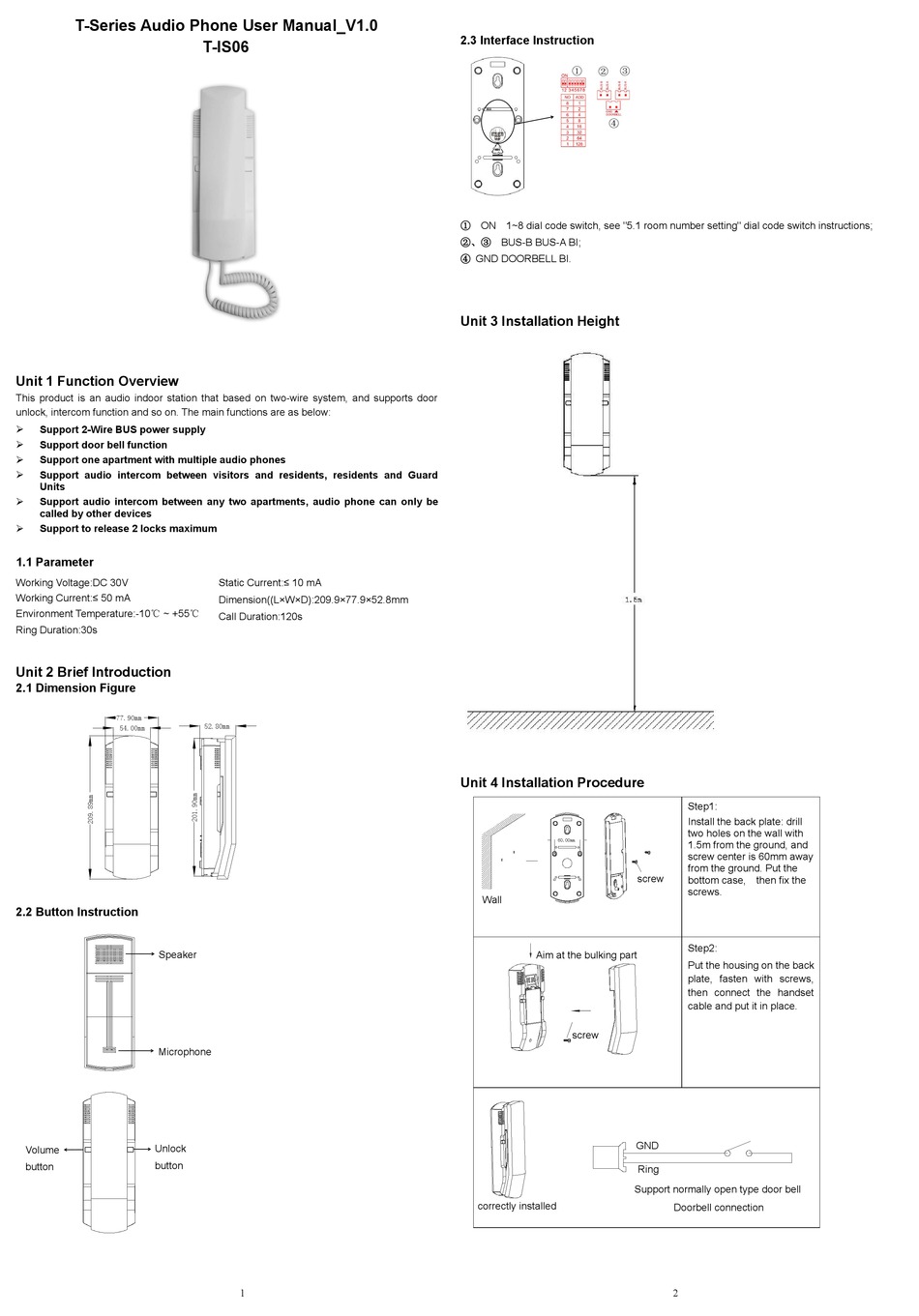

T-Series Audio Phone User Manual_V1.0

Unit 1 Function Overview

This product is an audio indoor station that based on two-wire system, and supports door
unlock, intercom function and so on. The main functions are as below:
Support 2-Wire BUS power supply
Support door bell function
Support one apartment with multiple audio phones
Support audio intercom between visitors and residents, residents and Guard
Units
Support audio intercom between any two apartments, audio phone can only be
called by other devices
Support to release 2 locks maximum

1.1 Parameter

Working Voltage:DC 30V
Working Current:≤ 50 mA
Environment Temperature:-10℃ ~ +55℃
Ring Duration:30s

Unit 2 Brief Introduction

2.1 Dimension Figure

77.90mm
54.00mm

2.2 Button Instruction

Speaker
Microphone
Unlock
Volume
button
button
T-IS06
Static Current:≤ 10 mA
Dimension((L×W×D):209.9×77.9×52.8mm
Call Duration:120s
52.80mm
1

2.3 Interface Instruction

① ON 1~8 dial code switch, see "5.1 room number setting" dial code switch instructions;
②、③ BUS-B BUS-A BI;
④ GND DOORBELL BI.

Unit 3 Installation Height

Unit 4 Installation Procedure

60.00mm
Wall
1、墙上安装两颗螺丝,中心距
106mm,螺丝头大约离墙面3mm。
Aim at the bulking part
screw
correctly installed

Step1:

Install the back plate: drill
two holes on the wall with
1.5m from the ground, and
screw center is 60mm away
from the ground. Put the
screw
bottom case, then fix the
w
screws.

Step2:

Put the housing on the back
plate, fasten with screws,
then connect the handset
cable and put it in place.
GND
Ring
Support normally open type door bell
Doorbell connection
2
