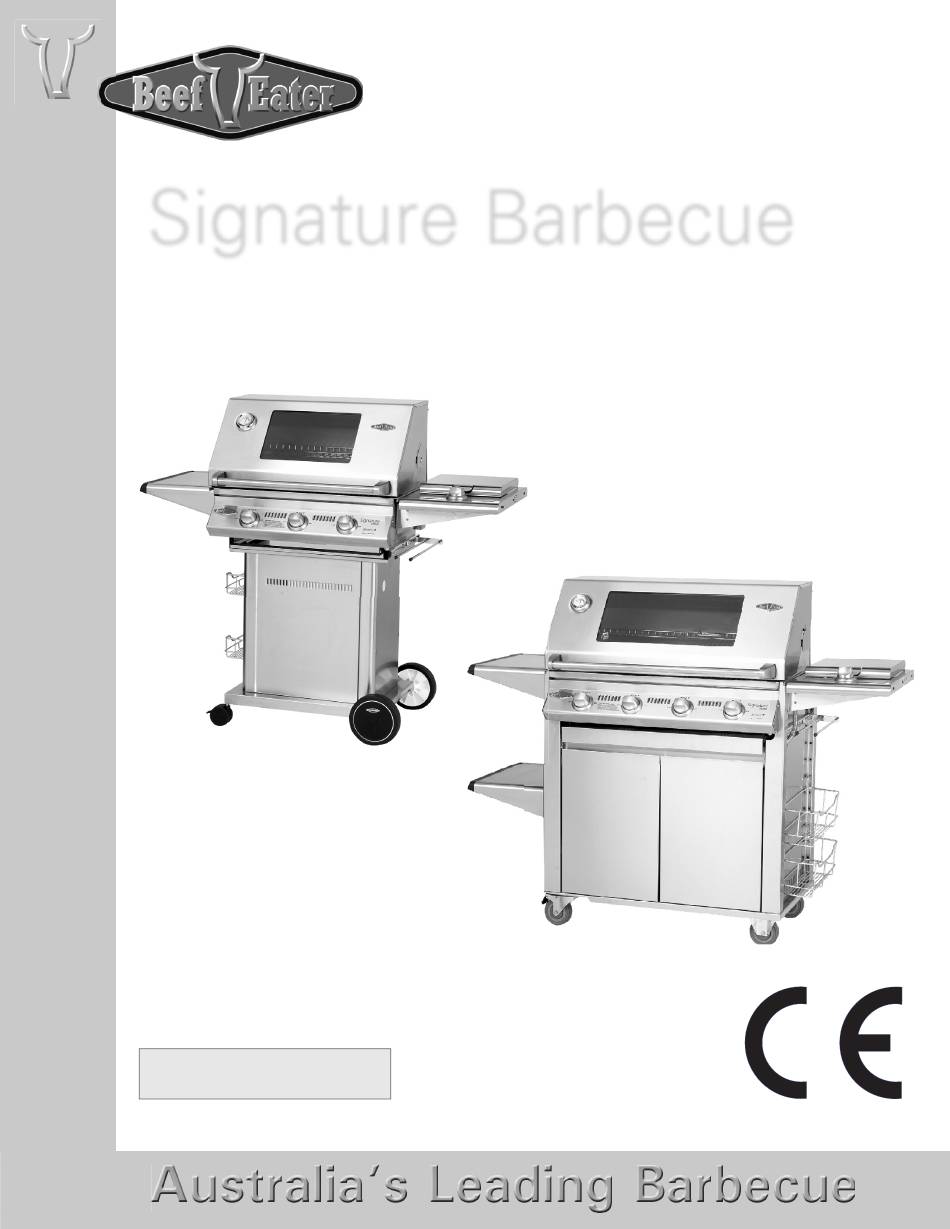

- Page 1 Signature Barbecue Assembly and Operating Instructions Outdoor Use Only...
-
Page 2: Safety Warnings
Safety Warnings We want you to enjoy your barbecuing experience - Failure to follow the WARNING: instructions and observe the warnings provided in this operating manual could result in serious bodily injury or damage to property. Please read these instructions completely before assembly or operation of your barbecue. - Page 3 Safe Operation Check all gas hoses and line connections for damage, cuts or cracks each time the appliance is to be used. This barbecue becomes very hot during use, so: Do not attempt to modify the appliance. Any Keep young children away. •...
-
Page 4: Locating Your Barbecue
Locating Your Barbecue Most importantly, this is an outdoor appliance. Ensure your barbecue is positioned safely away from anything that can catch fire. Indoor Use Only: Under no circumstances is this barbecue to be used indoors. This includes garages or any other enclosed area. -
Page 5: For Built-In Units Only
For Built-In Units Only General Requirements We recommend that this installation be done in a masonry structure and carried out by a professional tradesperson. Other non-combustible material such as Hardiplank, Villaboard with metal studs may also be used. This appliance must not be installed under or on any combustible material. Minimum clearance from combustible construction materials to all sides of the appliance is 450mm. - Page 6 Assembly Instructions Before You Start Note the tools you will need before you begin. Remove any packaging material or protective plastic from components. Check for damaged or missing parts, and consult your retailer if adjustable spanner/ Phillips Head necessary. wrench Screwdriver Mobile trolleys are optional.
- Page 7 Assembly Instructions Fit The Vaporizers The Vaporizers are designed to vaporise fats and juices from your food. The Vaporizers reduce flare-ups and help to add that great barbecue flavour. The Vaporizers must be fitted to the same side of the barbecue as the grill (usually on the right).
-
Page 8: Connection To Barbecue & Gas Supply
Connection to Barbecue & Gas Supply Before You Begin If you have not done so already, check the gas type label as described earlier. This appliance must not be installed under or on any combustible material. Minimum clearance from combustible materials to all sides of the appliance is 450mm. The appliance must be tested for safe and proper operation on completion of installation. - Page 9 Connection to Barbecue & Gas Supply Disconnecting The Gas Supply Always ensure that all gas controls on the appliance and on the cylinder are off before disconnecting.or removing the gas cylinder. Do not smoke or use a naked flame near the appliance or gas cylinder while connecting or disconnecting the gas line.
-
Page 10: Using Your Barbecue
Using Your Barbecue Lighting The Barbecue Your barbecue is equipped with a safety feature that prevents the burners from being accidentally turned on. You must push the knob inwards to disengage the lock and allow the knob to rotate. 1. Push in and hold the far right control knob down while turning slowly in a counter-clockwise direction until the starter mechanism engages at the two o’clock position. - Page 11 Using Your Barbecue Preparing The Plates And Grills The porcelain enamel coated grills supplied with your barbecue do not require seasoning before they are used: simply wash them thoroughly with soapy water, dry, and place on the barbecue. To Turn Off The Burner Push in and hold the control knob while turning in a clockwise direction until the off position is reached.
-
Page 12: Getting The Most From Your Barbecue
Getting The Most From Your Barbecue Preheating Your Barbecue Like an oven, preheating your barbecue before cooking produces better results. Because your hood retains heat so efficiently, preheating your barbecue is quicker with the hood down. Turn the outside two burners to high. Close the hood, and allow to preheat for about 8 minutes, Then reduce the burner settings to achieve and maintain the required temperature, by following these guidelines. -
Page 13: Cleaning Your Barbecue
Cleaning Your Barbecue Stainless Steel Barbecue and Cart Panels After the appliance has been used, wash down the surfaces with hot soapy water. Avoid abrasive cleaners or brushes as these could damage the surface and graphics, especially on the control panel. -
Page 14: Service And Maintenance
Check to see visible spark at starter probe - if no spark is present when control knob is turned then the unit may need to be serviced or replaced. Contact your BeefEater dealer. Check that there is a visible flame coming from the pilot ignition tube. -
Page 15: Warranty
• Cleaning and normal wear and the specified period from the date of warranty. tear. Service calls of this nature are purchase, BeefEater or its distributor will chargeable. 6. The warranty period is calculated from repair or, (at distributors option), replace •... -
Page 16: Barbecue Dimensions
Technical Specifications Barbecue Dimensions (mm) 1011... -
Page 17: Gas Consumption
Gas Consumption BeefEater Signature Series CE No. 048AT-0003 Country Gas Category/Gas Type Injector Size Austria I 3B/P .... 50mbar 0.99 mm Belgium I 3+....28/37 mbar 1.15 mm Denmark I 3B/P .... 30mbar 1.15 mm Finland I 3B/P .... 30mbar 1.15 mm... -
Page 18: Spare Parts
Spare Parts... - Page 19 Bezel - (Knob surround) 060511 060511 060511 060511 Bezel screw 030156 030156 030156 030156 Knob 95258 95258 95258 95258 BeefEater badge and circlips 060509 060509 060509 060509 Gas Injector -0.99 040126 040126 040126 040126 Gas Injector -1.15 040125 040125 040125 040125...
-
Page 20: Accessories Available
Accessories Available Your retailer can advise on the range of BeefEater accessories available to help you take full advantage of the barbecue cooking opportunities available with your roasting hood. Apron & Mitt Set Polyester Cover Meat Thermometer Chef Set Baking Dish...
