Summary of Contents for Queclink GV350M

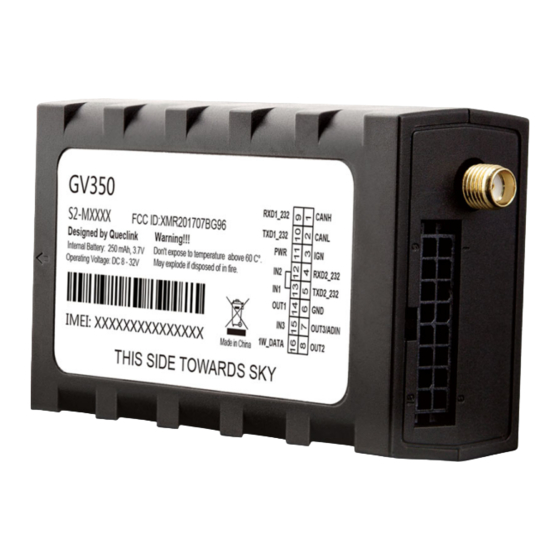

- Page 1 GV350M Installation guide Tracker.com CH 8134 Adliswil...
- Page 3 Option 1(recommended): continous voltage and ignition black mass (31) red (8‐32V) continous voltage (30) white (7‐32V) ignition (15) Advantage: the device can be configurated and managed any time, even when machine or vehicle is not in running...
- Page 4 Option 2: only continous voltage black masss (31) red (7‐32V) continous voltage (30) white (7‐32V) continous voltage (30) Disadvantage: • Functions that need a running engine, like tow‐alarming, do not work.
-
Page 5: Status Leds
Status‐LEDs Power LED • On: continous voltage OK, battery fully charged • Fast flashing: continous voltage OK, battery charging • Slowly flashing: no continous voltage, battery voltage low • Off: no continous voltage, no battery voltage CEL LED (GSM/UMTS) • Slowly flashing: reception OK • Fast flashing: searching network • On: PIN locked GPS LED • On: signal found – GPS position is determined •...
