Summary of Contents for Queclink GV304N
-

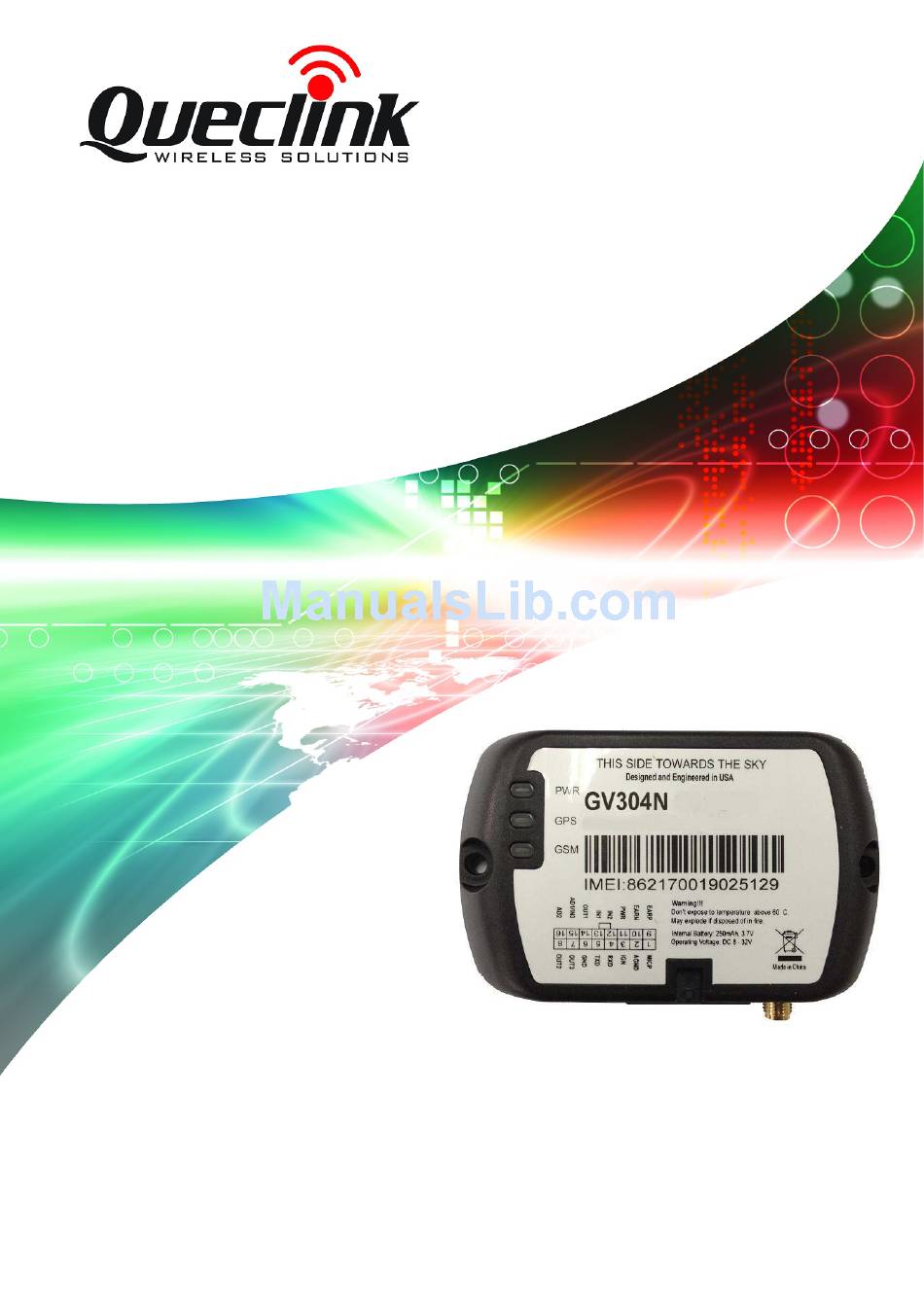

Page 1: User Manual
GV300N User Manual GV304N GSM/GPRS/GPS Tracker User Manual Application Notes: TRACGV304NUM001 Revision: 1.00 TRACGV300NUM001 - 7 -... - Page 2 Document Control ID General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
Check Parts List ...................... 15 2.2. Parts List ......................... 16 2.3. Interface Definition ....................17 2.4. GV304N User Cable Color ..................18 3. Getting Started ........................19 3.1. Opening the Case ....................19 3.2. Closing the Case ...................... 19 3.3. ... -
Page 4: Table Index
PARTS LIST ........................16 TABLE 4. DESCRIPTION OF 16 PIN CONNECTIONS .............. 17 TABLE 5. GV304N USER CABLE COLOR DEFINITION ............18 TABLE 6. GPS ANTENNA SPECIFICATION ................21 TABLE 7. ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION ......22 ... -
Page 5: Figure Index
FIGURE 15. TYPICAL CONNECTION WITH LED ............... 26 FIGURE 16. GV304N LED ON THE CASE ..................26 FIGURE 17. TYPICAL CONNECTION WITH RS232 PORT ............27 FIGURE 18. GV304N CONNECTION WITH GARMIN GPS SET ..........28 ... -
Page 6: Revision History
GV304N User Manual 0. Revision History Revision Date Author Description of change 1.00 2016-06-16 Super Zhao Initial... -
Page 7: Introduction
GPS position as well as many other useful functions. Users can also use GV304N to monitor the status of a vehicle and control the vehicle by its external relay output. System integrators can easily set up their tracking systems based on the full-featured @Track protocol. -
Page 8: Reference
GV304N User Manual Reference Table 1. GV304N Protocol Reference Document name Remark GV304N @Track Air Interface Protocol The air protocol interface between GV304N and backend server. Terms and Abbreviations Table 2. Terms and Abbreviations Abbreviation Description AGND Analog Ground Analog Input... -
Page 9: Product Overview
GV304N User Manual 2. Product Overview 2.1. Check Parts List Before starting, check whether all the following items have been included with your GV304N. If anything is missing, please contact your supplier. Figure 1. Appearance of GV304N TRACGV304NUM001 - 15 -... -
Page 10: Parts List
GV304N User Manual 2.2. Parts List Table 3. Parts List Name Picture GV304N Locator 94*57*24.5 mm User Cable Extend Cable (Optional) GPS Antenna (Optional) DATA_CABLE_M (Optional) TRACGV304NUM001 - 16 -... -
Page 11: Interface Definition
GV304N User Manual 2.3. Interface Definition The GV304N has a 16 PIN interface connector which contains the connections for power, I/O, RS232, microphone, speaker, etc. The sequence and definition of the 16PIN connector are shown in the following figure: Figure 2. The 16 PIN Connector on the GV304N Table 4. -
Page 12: Gv304N User Cable Color
GV304N User Manual 2.4. GV304N User Cable Color Table 5. GV304N User Cable Color Definition Definition Definition Color Cable Color OUT2 Yellow Brown/White OUT3 Brown Green AD1/IN3 Black Blue OUT1 White/Black Orange Pink Orange/Black White AGND Gray/Black Purple/White EARN MICP... -
Page 13: Getting Started
GV304N User Manual Getting Started 3.1. Opening the Case Figure 3. Opening the Case As shown, Roll the four screws counter clockwise with a screwdriver ,you can easily open the product. 3.2. Closing the Case Figure 4. Closing the Case Place the cover on the bottom in the position as shown in the following figure. -
Page 14: Installing The Internal Backup Battery
GV304N User Manual mark. Close the SIM card holder. Close the case. Figure 5. SIM Card Installation 3.4. Installing the Internal Backup Battery Figure 6. Backup Battery Installation There is an internal backup Li-ion battery, TRACGV304NUM001 - 20 -... -
Page 15: Switch On The Backup Battery
GV304N User Manual 3.5. Switch ON the Backup Battery To use the GV304N backup battery, the switch must be at the ON position. Switch on the case and ON/OFF position are shown below. Figure 7. Switch and ON/OFF position Note: 1. -
Page 16: Power Connection
GV304N User Manual Impedance: 50Ω VSWR: <2 Noise figure: <3 3.7. Power Connection PWR (PIN11) / GND (PIN6) are the power input pins. The input voltage range for this device is from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V systems without the need for external transformers. -
Page 17: Digital Inputs
IGN signal can be configured to start transmitting information to backend server when ignition is on; and enter power saving mode when ignition is off. There are three general purpose digital inputs on GV304N. They are all negative trigger. 3.9. Digital Inputs ... -
Page 18: Analog Inputs
GV304N User Manual Figure 11. Typical Digital Input Connection 3.10. Analog Inputs There are two analog inputs on GV304N, the analog input voltage range is from 0 to 16V. The following diagram shows the recommended connection. Figure 12. Typical Analog Input Connection Note: PIN 15 is an multifunction pin: it can be configured as a digital input or an analog input. -
Page 19: Figure 14. Typical Connection With Relay
GV304N User Manual Figure 13. Digital Output Internal Drive Circuit Table 9. Electrical Characteristics of Digital Outputs Logical State Electrical Characteristics Enable <1.5V @150mA Disable Open drain Figure 14. Typical Connection with Relay TRACGV304NUM001 - 25 -... -
Page 20: Device Status Led
2. All outputs are internally pulled up to PWR pin by a diode. So no external flyback diode is needed when the output is connected to an inductive load. 3.12. Device Status LED Figure 16. GV304N LED on the Case Table 10. Definition of Device status and LED TRACGV304NUM001 - 26 -... -
Page 21: Serial Port / Uart Interface
GV304N User Manual Note: Device status LED status Device is searching GSM network Fast flashing (note1) (Note3) Device has registered to GSM network. Slow flashing (Note4) SIM card needs pin code to unlock. GPS chip is powered off (note 2) GPS sends no data or data format error. -
Page 22: Connect With Garmin Gps Set
GV304N User Manual Connect With Garmin GPS Set 3.13.1. GV304N can communicate with Garmin GPS Set. The following typical connection is using Queclink AG100 cable. Figure 18. GV304N connection with Garmin GPS set Note: GV304N some version maybe connects with Garmin GPS set by Garmin FMI10/FMI15 cable, please consult with Queclink for detail information.
