- Page 1 GV300TP User manual GV300TP 4G WW User Manual EGPRS/LTE Cat-M1/LTE Cat-NB2/GNSS Tracker QSZTGV300TPMGUM0100 Revision: 1.00 TRACGV3SUM001 - 1 -...
- Page 2 QSZTGV300TPMGUM0100 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
-
Page 3: Table Of Contents
GV300TP 4G WW User Manual Contents 0. Revision History ..........................4 1. Introduction ..........................5 1.1 Reference..........................5 1.2 Terms and Abbreviations ...................... 5 2. Product Overview .......................... 8 2.1. Check Parts List ........................8 2.2. Parts List ..........................9 2.3. -
Page 4: Revision History
GV300TP 4G WW User Manual 0. Revision History Revision Date Author Description of change 1.00 2021-12-24 Eddy Qi Initial QSZTGV300TPMGUM0100 - 4 -... -
Page 5: Introduction
GV300TP 4G WW User Manual 1. Introduction The GV300TP 4G WW is a powerful GPS locator designed for vehicle or asset tracking. It has superior receiver sensitivity, fast TTFF (Time to First Fix) and supports EGPRS/LTE Cat-M1/LTE Cat-NB2/GPS tracker. Its location can be monitored in real time or periodically tracked by a backend server or other specified terminals. -
Page 6: Product Overview

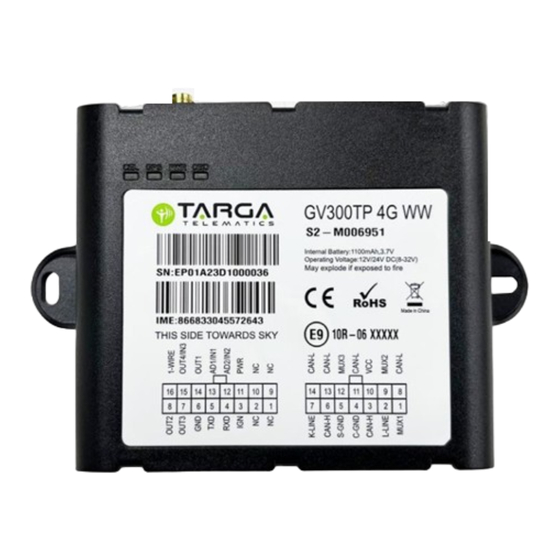

GV300TP 4G WW User Manual 2. Product Overview 2.1. Check Parts List Before starting, check whether the product is intact. If anything is missing, please contact your supplier. Figure 1. Appearance of GV300TP 4G WW QSZTGV300TPMGUM0100 - 8 -... -
Page 7: Parts List
GV300TP 4G WW User Manual 2.2. Parts List Table 3.Parts List Name Picture GV300TP 4G WW Locator 122*85.2*24.2 mm Tracker Cable OBD Cable GPS Antenna (Optional) Debug Cable (Optional) 2.3. Interface Definition 16-pin interface QSZTGV300TPMGUM0100 - 9 -... - Page 8 GV300TP 4G WW User Manual 14-pin interface QSZTGV300TPMGUM0100 - 10 -...
- Page 9 GV300TP 4G WW User Manual QSZTGV300TPMGUM0100 - 11 -...
-
Page 10: Getting Started
GV300TP 4G WW User Manual 3. Getting Started 3.1. Open the Case Figure 2.Open the Case Loosen the screws at the back of the device. 3.2. Installing a SIM Card Open the case and ensure the unit is not powered (unplug the cable and unplug the internal battery). -
Page 11: Ce Declaration
600 ms ON/600 ms OFF. Declaration 4. CE Hereby, Queclink Wireless Solutions Co., Ltd. declares that the radio equipment type GPS tracker is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.queclink.com/... - Page 12 GSM900: 32.85 dBm GSM1800: 30.23 dBm CATM Band 1: 23.26 dBm Band 3: 23.67 dBm Band 8: 23.79 dBm Band 20: 23.56 dBm Band 28: 23.67 dBm Band 1: 23.55 dBm Band 3: 23.88 dBm Band 8: 23.52 dBm Band 20: 23.99 dBm Band 28: 23.39 dBm Bluetooth Low Energy: 0.62 dBm Tem:-30-80...
