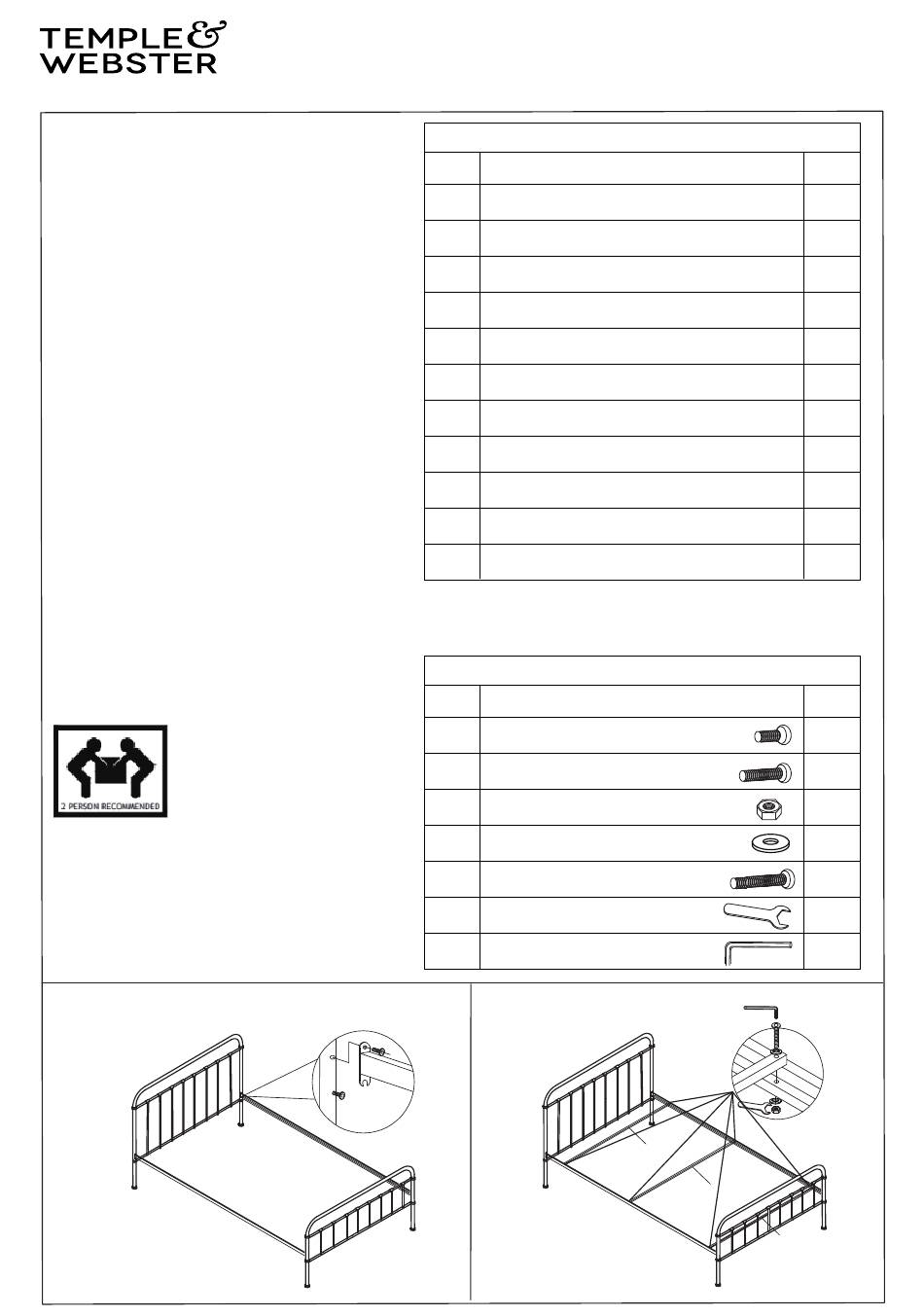

TEMPLE & WEBSTER HTCQUWHM Assembly Instructions

Read these instructions and follow steps
carefully to ensure you assemble the
product correctly and avoid damages.
Check that all parts and hardware have
been provided before assembling the
products. Place all contents on a clean,
soft-flat surface to avoid scratching he
product.
CAUTION:
Only tighten bolts to 80% at first. Once all parts have
been assembled,fully tighten all hardware.
To prevent damage to threads, do not use a power
tool and do not over tighten bolts.
Use two people to lift and turn the product when
assembling.
Do not attempt with only one person and do not roll
onto legs.
Keep all hardware and small parts away from children.
Box of 1: Headboard(A), Footboard(B), Plastic caps(C&D),
Plywood slats(E), Support legs(H), U-bracket(K), Hardware.
Box of 2: Siderail(F), Middle rail(G), Cross bar(I),Middle
cross bar(J).
Please confirm you have all the parts listed before
commencing assembly.
STEP 1
A
ASSEMBLY INSTRUCTIONS
HTCQUWHM
1
F
1
F
F
PART LIST
ITEM DESCRIPTION
A
HEADBOARD
B
FOOTBOARD
C
PLASTIC CAPS
D
PLASTIC CAPS
E
PLYWOOD SLATS
F
SIDERAIL
G
MIDDLE RAIL
H
SUPPORT LEGS
I
CROSS BAR
J
MIDDLE CROSS BAR
K
U-BRACKET
HARDWARE LIST
ITEM DESCRIPTION
1
SCREW M6x20mm
2
SCREW M6x40mm
3
HEX NUTS M6
4
FLAT WASHER
5
SCREW M6x55mm
6
SPANNER
7
ALLEN KEY
STEP 2
B
QTY
12
24
24
QTY
12
12
31
5
4
4
3
I
J
I
1
1
2
1
3
2
1
2
9
6
1
1
