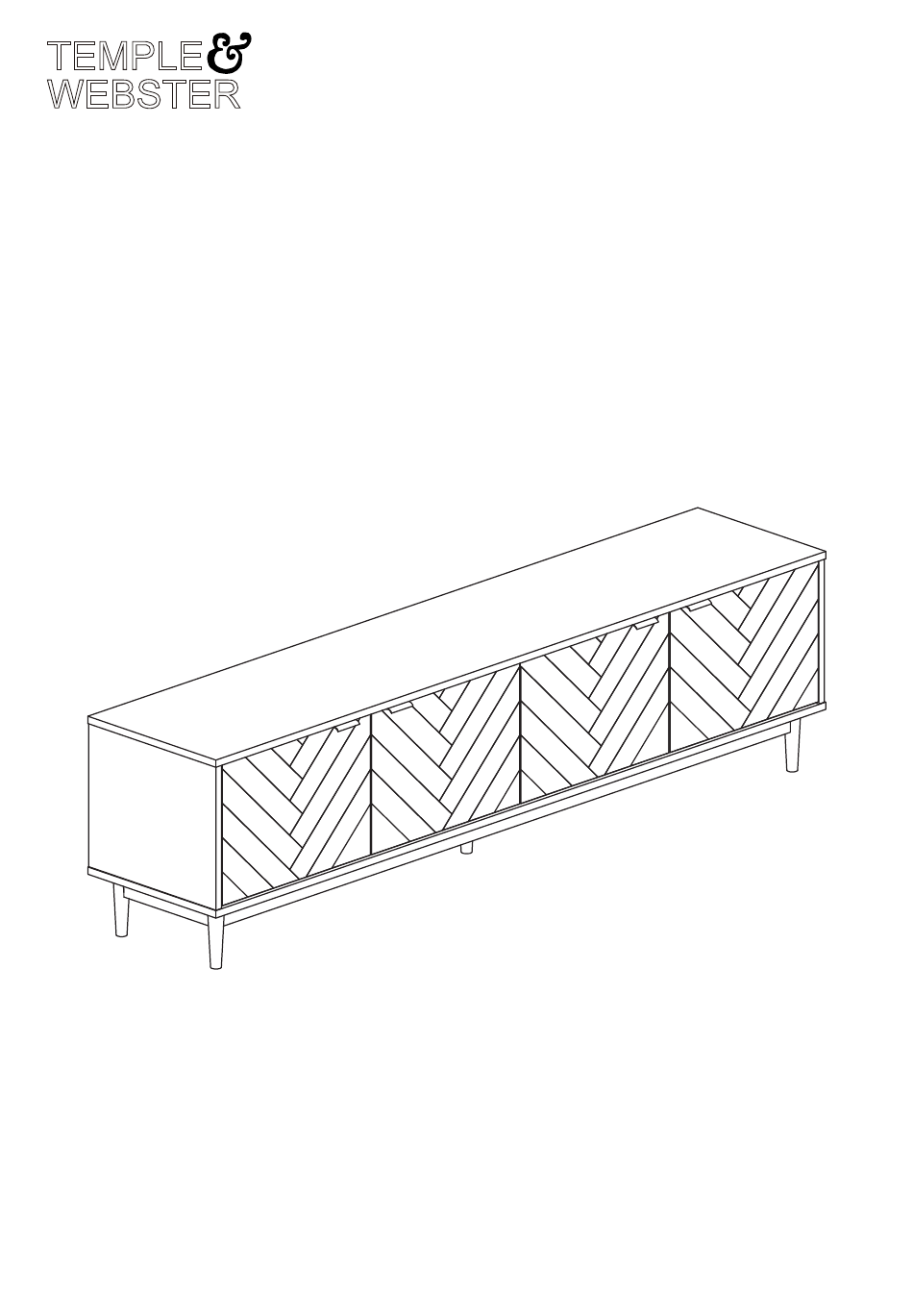

- Page 1 SBDPTVOAK TEMPLE WEBSTER ASSEMBLY INSTRUCTIONS Dion Herringbone 200cm TV Unit Two people required www.templeandwebster.com.au...
- Page 2 Keep these instructions for future reference Assemble the furniture on a soft level surface to avoid damaging the furniture or your floor. Parts of the assembly will be easier with 2 people. We recommend furniture be assembled near where they will be placed, to avoid moving the product unnecessarily once assembled.
- Page 3 WARNING： It is STRONGLY RECOMMENDED that you ANCHOR this product. Toppling furniture can cause serious injuries and death. This product has been supplied with a bracket. To prevent your furniture from tipping forward it is strongly recommended that you securely attach this product to a wall or other solid surface, using the brackets provided and appropriate fixings.
-
Page 4: Tools Required
Tools Required Time Required DO NOT USE Mallet Flat head Screwdriver Cross Screwdriver 60 min Parts List People Required Top Panel (P1); Support Leg (P8); Left Side (P2); Left Door (P9); Right Side (P3); Middle Door (P10); Divider Panel (P4); Middle Door (P11);... - Page 5 Hardware/Fittings 6.5x44mm M8x60mm Bolt x 8 Spring Washer x 8 16mm Washer x 8 Connecting Bolt x 8 15x12mm 8x30mm 3.5x16mm 3.5x16mm Locking nut x 8 Wood Dowel x 12 Screw x 28 Screw x 28 5x16mm Hinge x 4 Hinge x 4 Shelf Support x 8 Bracket x 2...
- Page 6 6 x12 (P2) (P3) (P4) Insert 12 x Wood Dowels into Left Side (P2), Right Side (P3) and Divider Panel (P4). If necessary,gently tap the wood dowels with a mallet. 1 x8 2 x8 3 x8 15 x1 (P7) (P7) (P8) (P7) (P7)
- Page 7 16 x8 17 x8 14 x1 (P2) (P4) (P3) (P5) (P2) (P5) Attach Left Side (P2), Right Side (P3) and Divider Panel (P4) to Base (P5) using 8 x Bolts 8 x Nuts . Tighten the bolts with Allen Key...
- Page 8 7 x4 8 x4 11 x2 19 x2 (P1) Loosely attach 2 x Brackets to Top Panel (P1) using 4 x Screws Fix 2 x Door stopper to Top Panel (P1) using 4 x Screws 4 x8 (P1) Screw 8 x Bolts into Top Panel (P1).
- Page 9 18 x4 5 x8 (P1) (P2) (P1) 18 x4 Attach Top Panel (P1) to Left Side (P2), Right Side (P3) and Divider Panel (P4) using 8 x Locking Nuts . Use a screwdriver to turn the nuts clockwise to lock. Attach 4 x Felt Pads to the 4 x Legs (P7).
- Page 10 With help, carefully turn the TV Unit over. I. With help, move the TV Unit into position. Mark drilling points on the wall. II. If necessary, remove the TV Unit and drill holes with sizes suitable for your wall fixings. III.
- Page 11 12 x8 (P13) (P13) Insert 8 x Shelf Supports into desired locations on the Side and Divider panels. Gently place the 2 x Shelf (P13) as shown.
- Page 12 7 x6 9 x2 13 x1 (P9) Fix 2 x Hinges to Left Door (P9) using 4 x Screws Fix 1 x Handle to Left Door (P9) using 2 x Screws (P9) Attach the door on the cabinet as shown.
- Page 13 7 x6 10 x2 13 x1 (P10) Fix 2 x Hinges to Middle Door (P10) using 4 x Screws Fix 1 x Handle to Middle Door (P10) using 2 x Screws (P10) Attach the door on the cabinet as shown.
- Page 14 7 x6 10 x2 13 x1 (P11) Fix 2 x Hinges to Middle Door (P11) using 4 x Screws Fix 1 x Handle to Middle Door (P11) using 2 x Screws (P11) Attach the door on the cabinet as shown.
- Page 15 7 x6 9 x2 13 x1 (P12) Fix 2 x Hinges to Right Door (P12) using 4 x Screws Fix 1 x Handle to Right Door (P12) using 2 x Screws (P12) Attach the door on the cabinet as shown.
- Page 16 If adjustment is necessary, please follow the steps below: To move doors up or down: Turn the adjustment screw on both hinge plates on the door as shown. To move doors in or out: loosen or tighten the screws on the hinge plate, as shown. To move doors left or right: Loosen or tighten the screws to suit, as shown.
- Page 17 Assembly is complete. Please dispose of all packing thoughtfully.
