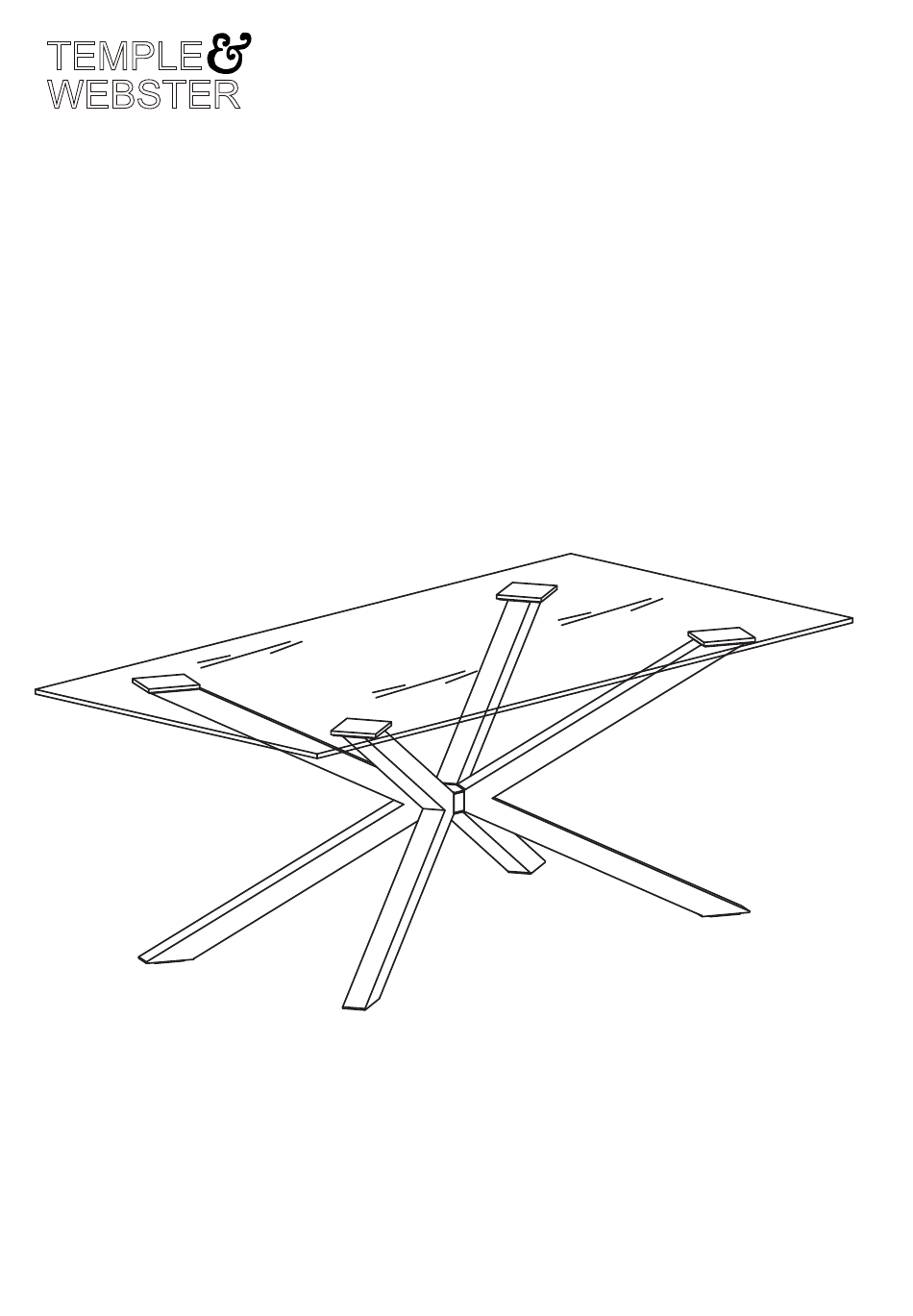

- Page 1 SBC8DMGN TEMPLE WEBSTER ASSEMBLY INSTRUCTIONS Charlie 200x100cm glass dining table Two people required www.templeandwebster.com.au 2021/9/9...
- Page 2 Keep these instructions for future reference Assemble the furniture on a soft level surface to avoid damaging the furniture or your floor. Parts of the assembly will be easier with 2 people. We recommend furniture be assembled near where they will be placed, to avoid moving the product unnecessarily once assembled.
- Page 3 Tools Required Time Required DO NOT USE 30 min Parts List People Required Glass Top (P1); (P2) x 4. (P1) (P2) (P2) (P2) (P2)
- Page 4 Hardware/Fittings Leg Bracket x 1 Bracket Top Cover x 1 Bracket Bottom Cover x 1 M8x16mm Bolt x 12 (H1) (H3) (H2) (H4) M8x50mm Bolt x 1 M8x10mm Bolt x 16 Washer x 29 Spring Washer x 29 (H6) (H5) (H8) (H7) 50x50x3mm Felt Pad x 8...
- Page 5 H1 x 1 H4 x 12 H7 x 12 H8 x 12 H9 x 1 Loosely attach 4 x Legs (P2) to Leg Bracket (H1) with 12 x Bolts (H4), 12 x Spring Washers (H7) and 12 x Washers (H8) using Allen Key (H9). H5 x 16 H7 x 16 H8 x 16...
- Page 6 H9 x 1 Fully tighten all Bolts (H4) and (H5) with Allen Key (H9). H2 x 1 H3 x 1 H6 x 1 H7 x 1 H8 x 1 H9 x 1 Fix the Bracket Top Cover (H2), and the Bracket Bottom Cover (H3) onto the Leg Bracket (H1) with 1 x Bolt (H6), Spring Washer (H7) and Washer (H8) as shown.
- Page 7 With help,carefully turn the table over. Please dispose of all packaging thoughtfully. Assembly is complete.
