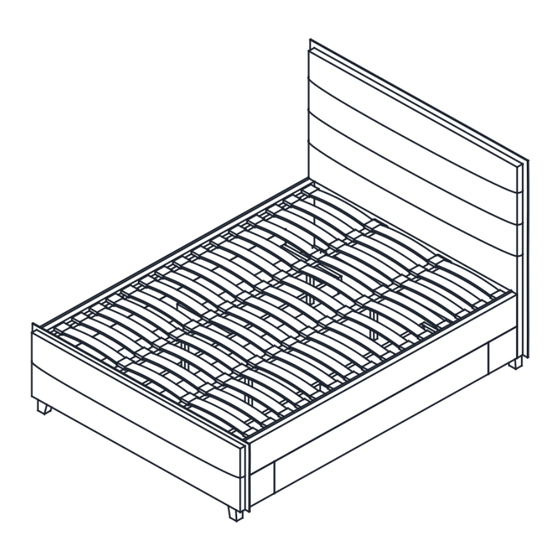

TEMPLE & WEBSTER HTLLSKBNT Assembly Instructions

HTLLSKBNT
ASSEMBLY INSTRUCTIONS
A x 1
E x 4
J x 2
Read these instructions and follow steps carefully to ensure you assemble the product correctly
and avoid damages. Check that all parts hardware have been provided before assembling the
products. Place all contents on a clean, soft-flat surface to avoid scratching the product.
CAUTION:
Only tighten bolts to 80% at first. Once all parts have been assembled, fully tighten all hardware.
To prevent damage to threads, do not use a power tool and do not over tighten bolts.
Use two people to lift and turn the product when assembling.
Do not attempt with only one person and do not roll on to legs.
Keep all hardware and small parts away from children.
Box 1of3: Headboard(A), Plastic cap(L&M), Wood slat(F), Hardware (Kx4)；
Box 2of3: Footboard(B),Siderail(C), Middle rail(D), Support leg(E),Bed leg(N),Drawer board(Gx2);
Box 3of3: Drawer board(Hx4)，(Ix2)，(Jx2).
Please confirm you have all the parts listed before commencing assembly.
B x 1
F x 45
Kx 4

PART LIST

1 M8*25mm
x 16
2 M8*35mm
x 8
M8*50mm
3
x 4
4 Flat washers
x 28
5
x 8
C x 2
G x 2
L x 30 M x 30
6 M8 Hex Nuts
x 8
7
x 24
8
x 24
x 1
x 1
D x 2
H x 4
I x 2
N x 4
