Summary of Contents for Wilo DrainAlarm

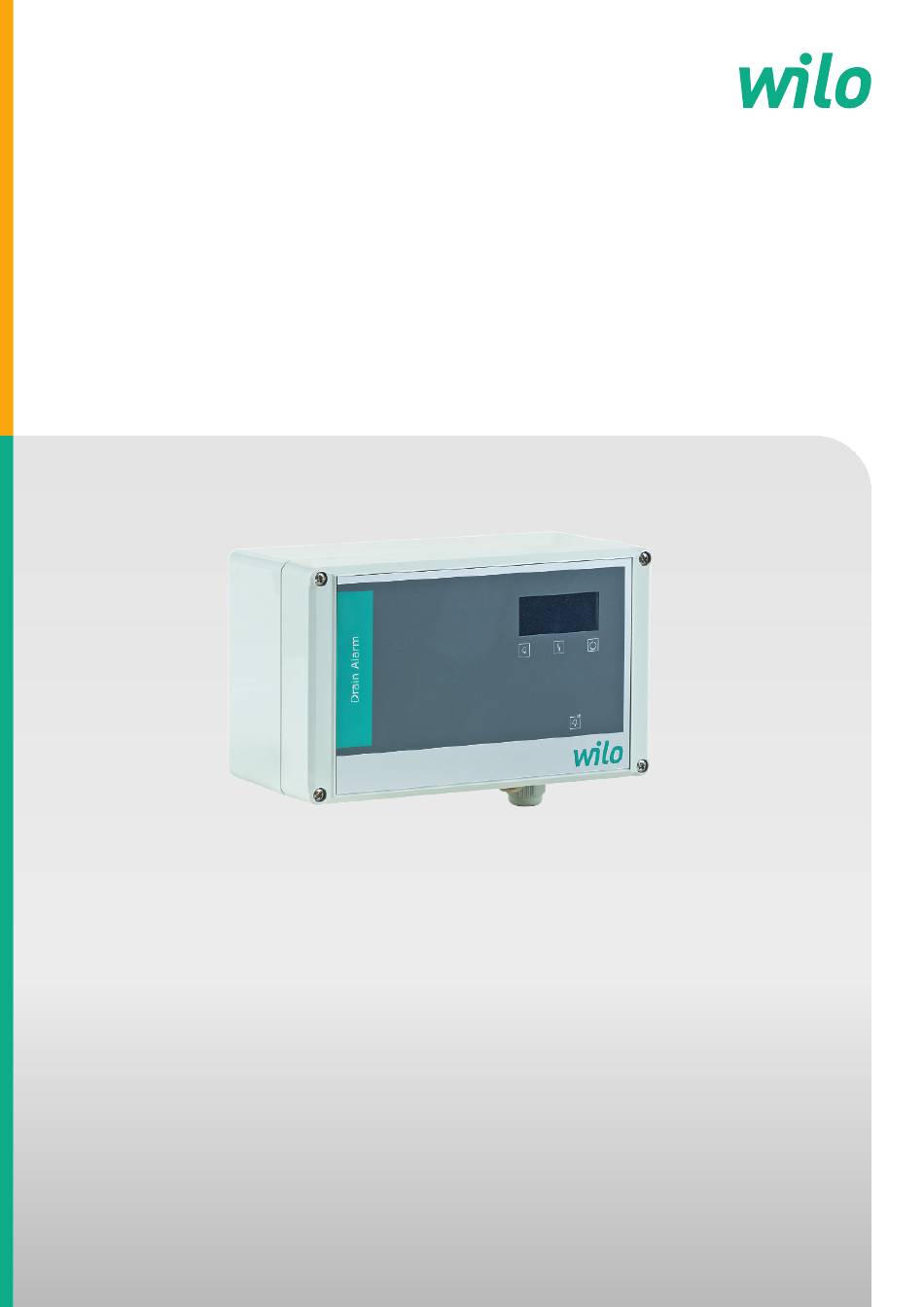

- Page 1 Pioneering for You Wilo DrainAlarm/DrainAlarm FIRST en Installation and operating instructions · 6097585 • Ed.01/2024-08...
- Page 2 DrainAlarm/DrainAlarm FIRST https://qr.wilo.com/1155...
- Page 3 Commissioning in explosive atmospheres...... 13 Connection of signal transmitters within potentially ex- plosive atmospheres ............ 14 Activating the device ............ 14 During operation.............. 14 9 Removal .................. 14 10 Maintenance................ 15 11 Disposal.................. 15 Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 4 All rights reserved. Subject to change Wilo shall reserve the right to change the listed data without notice and shall not be liable for technical inaccuracies and/or omissions. The illustrations used may differ from the ori- ginal and are intended as an exemplary representation of the product.
- Page 5 The product is not watertight. Select an appropriate installation site! • Do not deform the housing during installation. Seals could leak and affect the stated IP protection class. • The product may not be installed in potentially explosive areas. Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 6 Direct connection and operation of pumps • Installation within hazardous areas • Overflow of the switchgear Product description Structure A B C 1 2 3 4 5 PE N L1 Fig. 1: Operating elements and set-up Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 7 The “DrainAlarm GSM” switchgear is no longer available. These installation and operating GSM” switchgear instructions do not therefore contain any information about this switchgear. For information about the “DrainAlarm GSM” switchgear, please refer to the relevant in- stallation and operating instructions with article number 2527912. Technical data...
- Page 8 DrainAlarm switchgear: Disconnect battery! – Remove the blade connector at the plus contact (+) of the battery. – Insulate the plus contact (+) on the battery with the grommet provided! Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 9 NO contact or an NC contact. An alarm signal works with a closed contact accord- ing to the factory setting. An alarm signal can also work with an open contact. Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 10 Seal unused threaded cable glands. 6.5.1 Alarm input connection CAUTION Property damage due to external voltage! An external voltage which is applied destroys the component. • Do not apply external voltage (connect potential-free). Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 11 The alarm signal can be sent to external alarm signals or controls via a potential-free changeover contact. • Terminals: 3/4 − NO contact (NO) • Terminals: 4/5 − NC contact (NC) • Max. switching capacity: 250 V AC/DC, 4 A 3 4 5 Fig. 4: Connection terminals Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 12 A fill level is recorded via a float switch at the alarm input. If the fill level is reached, an acoustic alarm signal is triggered via the integrated buzzer. Further signalling can also take place via the two alarm outputs: Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 13 Risk of explosion if the switchgear is installed in potentially ex- plosive areas! The switchgear does not have its own explosion protection class! • Always install the switchgear outside hazardous areas. Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 14 • Not exposed to direct sunlight. • Ambient temperature: -20 to 50 °C. NOTICE! The transformer in the switchgear can heat up to 70 °C during operation. The housing also heats up as a result. Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 15 To ensure proper handling, recycling and disposal of the used products in question, please note the following points: • Hand over these products at designated, certified collection points only. • Observe the locally applicable regulations! Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 16 Please consult your local municipality, the nearest waste disposal site, or the dealer who sold the product to you for information on proper disposal. See www.wilo‑recycling.com for more information about recycling. Installation and operating instructions • Wilo DrainAlarm/DrainAlarm FIRST • Ed.01/2024-08...
- Page 20 Local contact at www.wilo.com/contact WILO SE Wilopark 1 44263 Dortmund Germany T +49 (0)231 4102-0 T +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
