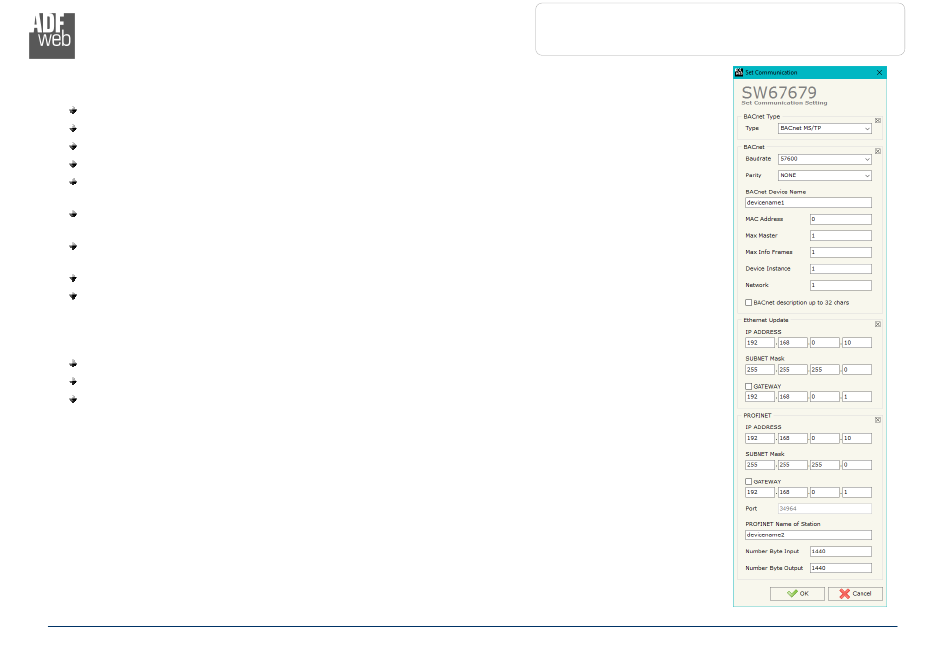

If selected "BACnet MS/TP", the means of the fields for "BACnet" are:
In the field "Baudrate" it is possible to select the baudrate of the BACnet line;
In the field "Parity" it is possible to select the parity of the line;
In the field "BACnet Device
In the field "MAC Address" is possible to define the MAC of BACnet node (from 0 to 254);
The field "Max Master" specifies the highest allowable address for master nodes. The value shall be less
than or equal to 127;
The field "Max Info Frames" specifies the maximum number of information frames the node may send
before it must pass the token;
In the field "Device Instance" is possible to assign a number to the BACnet node (Used for the Device
Identifier);
In the field "Network" it is possible to define the BACnet MS/TP network number;
If the field "BACnet description up to 32
be up to 32 chars long.
The means of the fields for the "Ethernet Update" section are:
In the fields "IP ADDRESS" insert the IP address that you want to give to the converter;
In the fields "SUBNET
In the fields "GATEWAY" insert the default gateway that you want to use. This feature can be enabled or
disabled pressing the Check Box field. This feature is used for going out of the net.
These information are used for programming the Converter.
