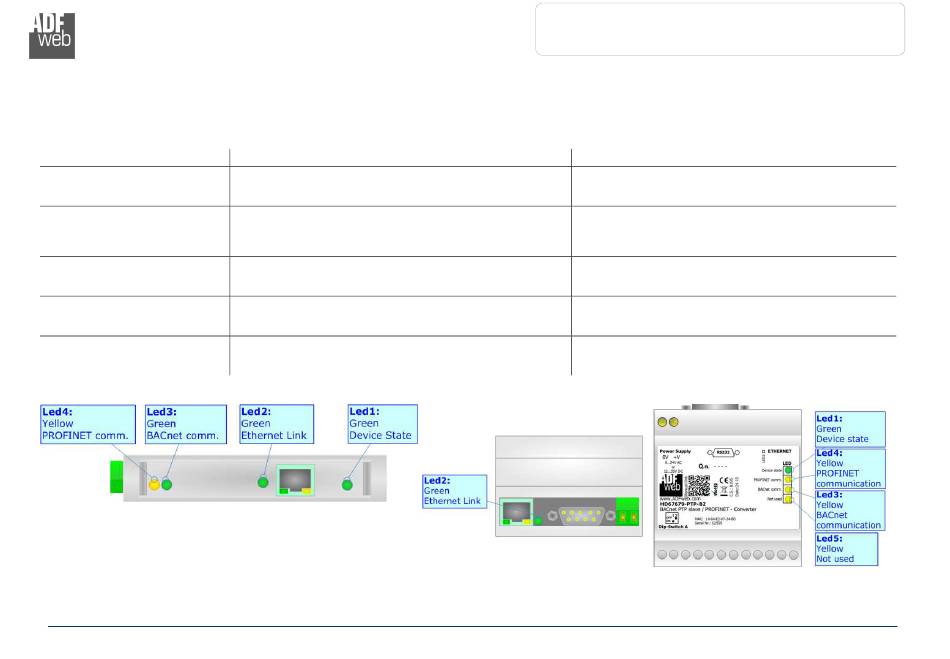

LEDS (for HD67679-MSTP-A1/B2):
The device has got four LEDs (five the –B2 version) that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State
2: Ethernet Link
3: BACnet comm.
4: PROFINET comm.
5: Not Used
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Blinks quickly when receive BACnet requests
Blinks quickly when is in communication with a master
PROFINET
OFF
User Manual BACnet slave/ PROFINET
Document code: MN67679_ENG Revision 1.011
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
