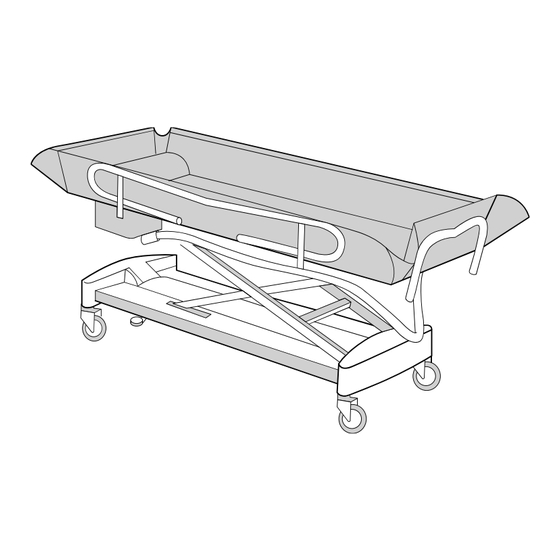

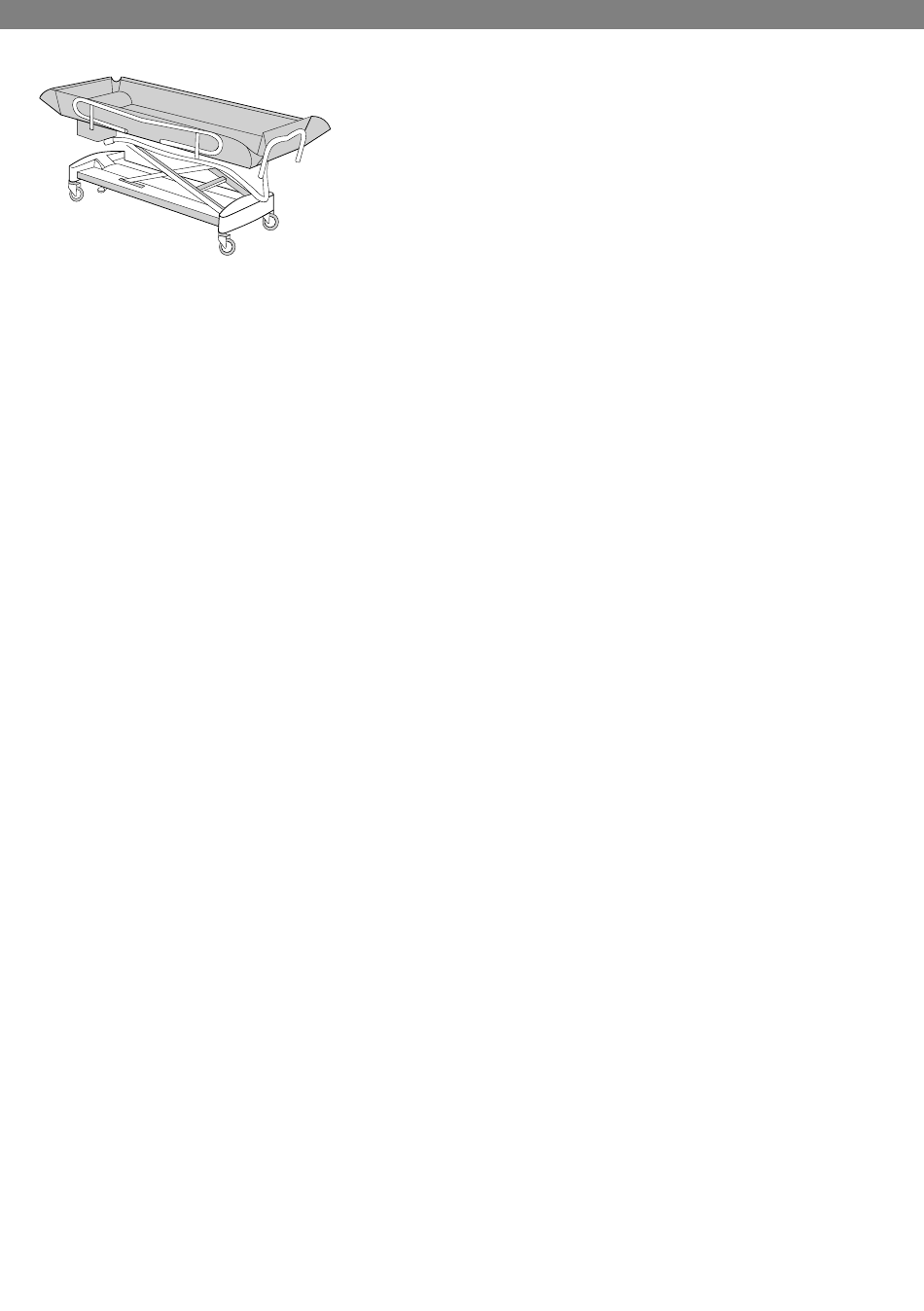

- Page 1 WINNCARE NORDIC Aps TM_SHOWER TROLLEY 07.09.2023 Technical Manual Shower trolley C4300 - 1 -...
-
Page 2: Table Of Contents
WINNCARE NORDIC Aps TABLE OF CONTENTS FEATURES AND FUNCTIONS ........................- 3 - Technical specifications ....................... - 3 - Complete product .......................... - 3 - Dimensions ............................. - 3 - Functions ............................- 3 - Retractable barrier ........................- 3 - Hydraulic variable height ....................... -
Page 3: Features And Functions
WINNCARE NORDIC Aps FEATURES AND FUNCTIONS ECHNICAL SPECIFICATIONS Variable-height cylinder type: COMPACT M5 10,000 N. Weight of shower trolley: 79 kg. Safe working load (CFS): 250 kg. • Normal operating load is 170 kg: Patient + water: 155 kg, Accessories: 15 kg. -
Page 4: Hydraulic Variable Height
WINNCARE NORDIC Aps To raise the gate: Hold the gate with one hand, make sure it is locked at the head end, raise it, and slide it towards the foot. Make sure that it is properly engaged by trying to slide it towards the head end. -
Page 5: Obstruction And Water Drainage
WINNCARE NORDIC Aps Obstruction and water drainage When draining, check that the end of the hose is directed towards the drainage system. EXPLODED VIEWS See annex. CLEANING AND DISINFECTION AILY CONVERSATION BETWEEN TWO PATIENTS Clean and disinfect the upper surfaces of the foam surface used to receive the patient, as well as all surfaces in contact with the hands (barriers, storage shelves). -
Page 6: Barrier Control
WINNCARE NORDIC Aps • Observation (appearance: tyre surface, plastic brake plate and its tilting under foot pressure and lifting). • Testing the braking system on all four wheels. ARRIER CONTROL • Testing the behaviour of the two folding barriers (lowering and raising): Do this three times in a row. -
Page 7: Exploded Views W. Reference
WINNCARE NORDIC Aps EXPLODED VIEWS . REFERENCE See below the list of spare parts - 7 -... - Page 8 WINNCARE NORDIC Aps - 8 -...
- Page 9 WINNCARE NORDIC Aps - 9 -...
-
Page 10: List Of Spare Parts
WINNCARE NORDIC Aps IST OF SPARE PARTS Reference Description SAV85060313 Blue sheet SAV85060314 Blue cushion SAV85180401 Stopper / Hose / Chain 74500001 Galea wheel Ø 100 braked swivelling 74500002 Galea wheel Ø 100 directional 74614235 Wheel ø 125 mm centralised braking (2 functions) 74614335 Wheel ø... - Page 11 DISTRIBUTOR / DISTRIBUTEUR France: sav@winncare.fr Spain: United Kingdom: Portugal: DISTRIBUTOR / DISTRIBUTEUR Contact WINNCARE Nordic Aps Tårnborgvej 12C, 4220 Korsør, Email: info@winncare.dk Denmark...
