USER MANUAL (EN)
LUNA
®
X5 CEILING HOIST
Scan the QR code for more information
Important Information
The user manual shall be read before
using the product.
The user manual is intended for all
persons involved in the use, servicing,
and maintenance of the LUNA
Version: 0
Date: 15-10-2024
Scan the QR code for more information
X5.
®
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Winncare LUNA X5
Summary of Contents for Winncare LUNA X5

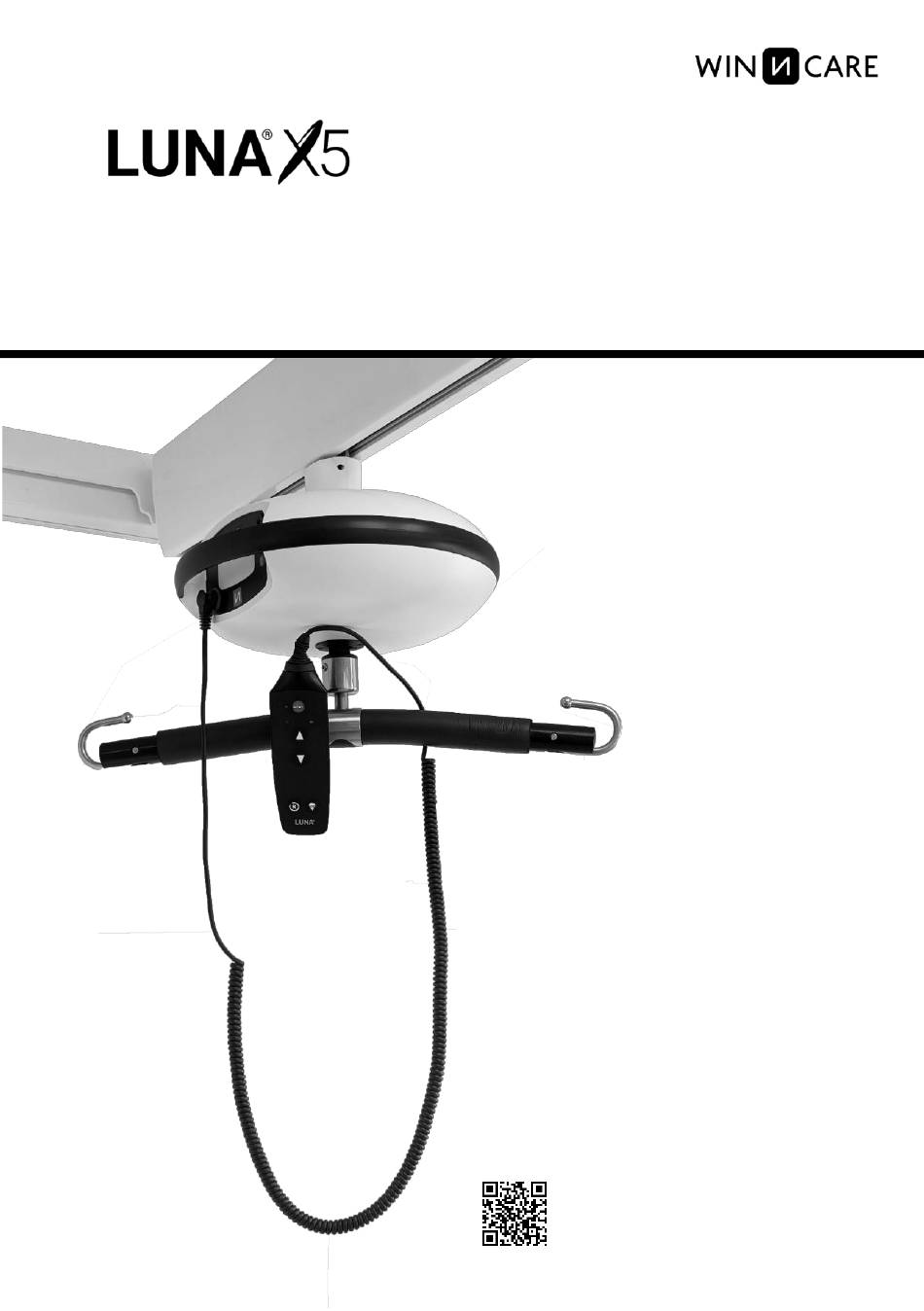

- Page 1 USER MANUAL (EN) LUNA ® X5 CEILING HOIST Important Information The user manual shall be read before using the product. The user manual is intended for all persons involved in the use, servicing, and maintenance of the LUNA ® Version: 0 Date: 15-10-2024 Scan the QR code for more information Scan the QR code for more information...
-
Page 2: Table Of Contents
CONTENTS 1 FOREWORD___________________________________________ 4 Contents ______________________________________________________________________ 4 Glossary ______________________________________________________________________ 4 Symbol Explanation ___________________________________________________________ 4 Marking _______________________________________________________________________ 5 2 PURPOSE, SAFETY AND USE ______________________________ 6 Purpose and Use ______________________________________________________________ 6 Essential Performance ________________________________________________________ 6 Contraindications _____________________________________________________________ 6 Safety instructions ____________________________________________________________ 7 Check before use _____________________________________________________________ 8 Terminology __________________________________________________________________ 9 Unpacking ____________________________________________________________________ 9... - Page 3 6 CHECK, WARRANTY AND TROUBLESHOOTING ______________ 22 Annual inspection ___________________________________________________________ 22 Trouble shooting ____________________________________________________________ 25 Technical specifications ____________________________________________________ 27 Dimensions _________________________________________________________________ 27 7 ENVIRONMENT AND QUALITY ___________________________ 28 Expected Lifetime ___________________________________________________________ 28 Disposal ____________________________________________________________________ 28 Battery ______________________________________________________________________ 28 Quality Certifications ________________________________________________________ 28 8 ACCESSORIES ________________________________________ 29 9 EMC data ___________________________________________ 33...
-
Page 4: Foreword
1 FOREWORD Contents Read this user manual thoroughly before using the LUNA ® To ensure proper use and maintenance of the LUNA X5, it is important that you read this ® user manual carefully. The information in this manual is provided to prevent potential personal injury and ensure that the product meets your expectations. -
Page 5: Marking
Manufacturer symbol, indicates Conformity with applicable EU the producer of medical regulations equipment Medical device according to Manufacturer's catalog number Regulation (EU) 2017/745 to identify the medical device Production date, the date that the Manufacturer's serial number to medical device was identify specific medical devices manufactured International Organization for... -
Page 6: Purpose, Safety And Use
WARNING! Ensure that all contraindications are understood and addressed to prevent potential risk. When using the Luna X5, there are the following contraindications you should be aware • The users Physical and Mental Condition: Are there any serious medical or psychological conditions that prevent a... -
Page 7: Safety Instructions
NEVER begin lifting if a defect is detected (abnormal sounds, loose brackets, etc.) In such cases the ceiling hoist must be taken out of service immediately and your dealer or Winncare, must be contacted. • The lifting capacity of the LUNA X5 is set to 200 kg (440 lbs) SWL (safe ®... -
Page 8: Check Before Use
If a defect is found, the sling shall not be used. (See the user manual for the specific sling being used, for further information). • In case of doubt regarding the use of the ceiling hoist or lifting sling, Winncare can be contacted for advice and guidance. -
Page 9: Terminology
11. Hooks for the slings lifting straps Unpacking During unpacking, it must be checked that all parts are present and undamaged. If there is any suspicion of damage or missing parts, contact your dealer or Winncare. Contents of the box: LUNA ®... -
Page 10: Installation And Operation
3 INSTALLATION AND OPERATION Mounting the track system The track system must be installed according to Winncare's installation guide. The installation guide can be acquired from Winncare. ® Mounting and detaching the LUNA The LUNA ® X5 can be mounted in two different ways to meet specific needs. The decision on the mounting method is made in consultation between the buyer and Winncare or Winncare's dealer. - Page 11 Illustration mounting Push Push Turn clockwise Turn clockwise Fig. 3.2B Fig. 3.2A Illustration detaching Turn anti- Push clockwise Turn anti- clockwise Push Fig. 3.2C Fig. 3.2D Use of Extension Arm for the LUNA X5 Suspended with Strap: ® Extension Arm Usage Illustration Mounting...
-
Page 12: Mounting And Detaching Of The Spreader Bar
See the order number in Chapter 9, “Accessories.” Mounting and detaching of the spreader bar NOTICE! Winncare will assists in the selection and correct use of the spreader bar. Depending on how the Luna is mounted, the spreader bar can be attached in one of the... - Page 13 Grasp the spreader bar Press the spreader bar Detaching and the strap’s bayonet. up against the ceiling Press them together and hoist. turn the spreader bar a Turn the spreader bar a quarter turn anti- quarter turn anti- clockwise until it is clockwise until it is dismounted.
-
Page 14: Pictograms And Functions
Pictograms and functions Frontpanel: The ON symbol on the remote control lights up green when the up (3), down (4), or side buttons (12) are pressed. This indicates that the buttons are activated. Battery Indicates the battery level (see explanation in section 3.7). Up/Down Hold one of the buttons down, and the hoist will lift/lower in the selected... - Page 15 Fig. 3.4D This accessory can be purchased from Winncare. (See section 8). NOTICE! This function is not included as standard but can be used with the purchase of a remote control with side buttons and a front panel with plug + cable.
-
Page 16: Operating
Operating The LUNA X5 is ready for use, when it is correctly assembled, and the spreader bar is ® also properly installed. In this section, reference will be made to the buttons from the previous section “Pictograms and functions”. When the hand control is connected to the socket on the front panel, the ceiling hoist will start up in emergency stop mode (this is to ensure that the condition of the ceiling hoist is assessed before use). -
Page 17: Charging
From a charger connected to a wall socket and the power plug in the ceiling hoist. NOTICE! The LUNA ® X5 is fitted with batteries that require regular charging. Winncare recommends that the ceiling hoist is charged every night or when the unit is not in use. -
Page 18: Using The Luna X5
The LUNA X5 is equipped with a battery icon on the hand control and front ® panel of the hoist that provides the following information about the battery condition during use: Diode color Description • When charging starts, the battery icon on the hand control lights up green and the battery icon on the front panel flashes green. -
Page 19: Using Lifting Slings
X5 lift spreader bar is designed for use with Winncare's lifting slings. ® Winncare lifting slings have 2-6 lifting straps and are designed for slings with loop straps. If a lifting sling from an unapproved manufacturer is used or if the lifting sling is not properly attached to the spreader bar, Winncare takes no responsibility for any errors or accidents. -
Page 20: Transfer Guide
Transfer guide NOTICE! Important information before lifting the patient! • Plan the entire process of the lift in advance. • Use the right sling in the right size for the user. • Always follow the user guide for the sling in use. WARNING! Be careful not to lowering the ceiling hoist or spreader bar onto the user. -
Page 21: Using The Luna ® X5 In A Shower Or Bathing Environment
X5 unit and the hand control can tolerate being sprayed with water. ® However, Winncare recommends that the ceiling hoist is used as shown in (fig. 4.3B) and (fig. 4.3E). As written above, it may be an advantage to use the ceiling hoist mounted directly on the track as shown in (Fig. -
Page 22: Maintenance
Winncare or other qualified technical personnel. It is the responsibility of the owner of the product to ensure that the periodic inspection is complied with. When replacing components, only original spare parts from Winncare should be used to ensure the product's functionality and safety. - Page 23 Winncare or a technician trained by Winncare. If wear, damage, or corrosion is found during service, these parts must be replaced, and every 5 years, all load-bearing components must be replaced. For replacements, ONLY original spare parts from Winncare should be used for safety reasons.
- Page 24 WARNING! When using the LUNA X5 in swimming pools and spa areas, the ceiling hoist ® must be mounted directly on the track to prevent the risk of immersion in water (See Fig. 4.3A and 4.3B). Personal safety checks and technical inspections by a qualified technician must be carried out according to the following schedule: Safety check Before Use...
-
Page 25: Trouble Shooting
Warranty A 5-year warranty is provided for the product. See the warranty terms at www.Winncare.com Trouble shooting Error Possible Solution Cauce Red LED light at Emergency - Deactivate the emergency stop (see section 3.6). “STOP” stop activated. Red LED light at Blown fuse. - Page 26 Charging via tracks. If possible, use the existing charger for troubleshooting; otherwise, order a charger for troubleshooting from Winncare or the dealer. 1. Connect the charger directly to the charging socket on the side panel of the hoist. - If the charger blinks green, check if the flat fuse for charging on the sideboard in the hoist is blown.
-
Page 27: Technical Specifications
24 V - Accessories available only for the connection of additional equipment. For further description, request an installation guide. (See section 3.1). EMC Tested according to the following standards: Luna X5. 1-kanal: IEC 60601-1-2:2015 Dimensions The LUNA X5 mounted on track: The LUNA X5 mounted on strap: ®... -
Page 28: Environment And Quality
Winncare, and compliance with maintenance as outlined in section 6.1. Disposal The product can be disposed of at Winncare. At the end of its lifespan, Winncare will take back the product to ensure that the individual components are properly recycled or disposed of. -
Page 29: Accessories
Spr.bar/2-pt/bayonet/Size L/tiltable/Luna X5/SWL 275 3-Point Spreader Bar 017-00338 Spr.bar/3pt./bayonet/Luna X5/SWL 275 Chargers with charging station 017-00300AUS Charging station Luna X5/with charger f. NIMH batt./AUS-plug 017-00300EU Charging station Luna X5/with charger f. NIMH batt./EU-plug 017-00300UK Charging station Luna X5/with charger f. NIMH batt./UK-plug... - Page 30 Chargers 017-00302AUS Charger Luna X5/for NIMH batt./ 30cell/1,8m DC cable/AUS-Plug 017-00302EU Charger Luna X5/for NIMH batt./ 30cell/1,8m DC cable/EU-Plug 017-00302UK Charger Luna X5/for NIMH batt./ 30cell/1,8m DC cable/UK-Plug 017-00302US Charger Luna X5/for NIMH batt./ 30cell/1,8m DC cable/US-Plug...
- Page 31 Cut here and save the spare parts list for possible future use! Spare Parts 018-50001 Cable coiled/Handcontrol/X5/ 1320mm/Service pack 018-50000 Cable coiled/Handcontrol/X5/ 1080mm/Service pack 018-50003 Hook/Handcontrol/X5/Service pack A list of all spare parts can be requested. Contact Winncare for information.
- Page 32 Blank page...
-
Page 33: Emc Data
9 EMC data Note: EMC data only valid for Luna X5. 1 channel sold from 1/1-2020 and onwards. Standards / Normative applied to EMC data: EN / IEC 60601-1-2-2015. Guidance and manufactures declaration for electromagnetic emissions Emission standard Type Compliance to standard... - Page 34 EN/IEC 61000-4-6 Conducted 150kHz to 80MHz calculated using the disturbances, equation for the induced by RF fields 3V RMS transmission frequency. (6V ISM) Recommended safe distance: d = 1.17 √P for 80 MHz to 800 MHz EN/IEC6100-4-3 Proximity fields from 80 MHz to 2.7 GHz, d = 2.33 √P for 800 MHz to RF wireless...
- Page 36 Text field for dealer Manufacturer: Phone: + 45 70 27 37 20 (EU) 2017/745 CLASS I Winncare Nordic ApS Fax: + 45 70 27 37 19 EN/ISO 10535:2021 Taarnborgvej 12 C Email: info@Winncare.dk IEC 60601-1-2: 2015 4220 Korsoer www.Winncare.com Denmark...
