Summary of Contents for Winncare Automorpho
- Page 1 User manual *PA0010122* MAJ 27/03/2014 UK...
-
Page 2: Table Of Contents
ASKLÉSANTÉ TABLE OF CONTENTS INTRODUCTION ....................................- 1 - Necessary information for the patient and those around them ........- 1 - Advice for use ..........................- 1 - Indications ............................- 2 - Counterindications ......................... - 2 - Precautions ............................- 2 - Warning.............................. -
Page 3: Introduction
ASKLÉSANTÉ INTRODUCTION ECESSARY INFORMATION FOR THE PATIENT AND THOSE AROUND THEM This product is a support to help prevent and treat bedsores. Why have you been prescribed this support? Your state of health impairs your mobility and puts you at risk of bedsores. What is a bedsore? A bedsore is a more or less skin deep lesion caused by putting excessive and prolonged pressure on tissues between the body and a load bearing surface. -
Page 4: Indications

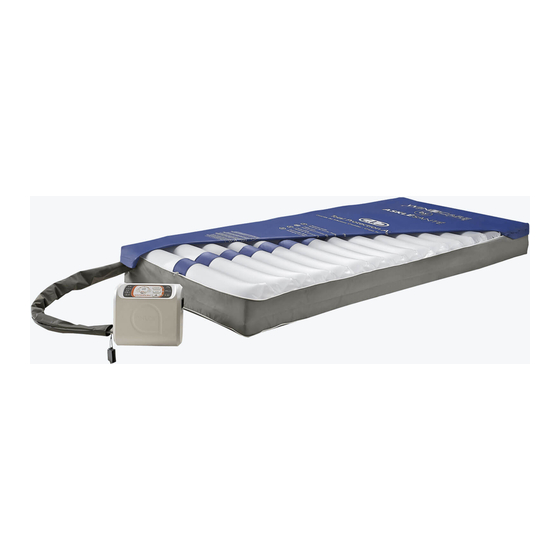

ASKLESANTE guarantees safe usage of the AXTAIR AUTOMORPHO AXENSOR® motorised air mattress. The features and performance of the motorised air support shall only be maintained by using the pump (ref. VAXT6/PUMP/AUTO) associated with the mattress (ref. - Page 5 ASKLÉSANTÉ In order to comply with risk assessment under ISO standard 14971, an assessment was carried out on all "hospital bed - therapeutic mattresses (Axtair) - accessories". The risk assessment shows that there may be a risk of bodily trapping if the bedridden person presents mental confusion and/or agitation.
-
Page 6: Definition Of Symbols
ASKLÉSANTÉ EFINITION OF SYMBOLS Warning - see user manual and (or) instructions for use Class II device (Double insulation) In accordance with the essential requirements of European Directive 93/42/EEC, applicable to medical devices (modified 2007/47/EEC) Warning - electrical and electronic equipment subject to separate collection of waste Manufacturer Series number... -
Page 7: Installation
ASKLÉSANTÉ NOTES: Contact the store or service provider from which the product was purchased for any assistance relating to the set-up, use or repair of the product. NSTALLATION Unroll the mattress. Position it on the base of the bed, using the "head" and "feet" symbols on the cover. - Page 8 ASKLÉSANTÉ NOTES: The necessary information for use of the compressor is noted on the side of the latter: simplified instructions After 30 minutes without selection, the intensity of lights will dim so as not to bother the patient during the night. Pressing a button re-activates the maximum intensity for 30 minutes.
-
Page 9: Use
ASKLÉSANTÉ Indicates the compressor is on Flickers to indicate inflation of the mattress After it has gone off, the patient can be placed on it When this light is lit, it indicates that the keypad is locked: it is not possible to change mode. -
Page 10: Emergency Cardiopulmonary Resuscitation: Cpr
ASKLÉSANTÉ : CPR MERGENCY CARDIOPULMONARY RESUSCITATION In case of heart stoppage: Turn the end of the CPR valve to the "OPEN" position. The mattress deflates and the back of the thorax will be flat on the base of the bed in less than 15 seconds in order to allow External Cardiac Massage to be carried out. -
Page 11: De-Installation
ASKLÉSANTÉ INSTALLATION Unplug the compressor from the mains Open the CPR valve to deflate the mattress. Total removal of air from the mattress can be facilitated by use of the inflation/deflation pump connected to the CPR. Position the compressor in the centre of the mattress. Roll the mattress up, starting at the feet Strap up the mattress. -
Page 12: Axensor® Connect
- It is essential to unplug the electric cable linked to the compressor from the mains. The light indicating the presence of mains power must be off. - Do not use high pressure jets to clean an Axtair AUTOMORPHO AXENSOR® compressor. -
Page 13: Mattresses And Covers
ASKLÉSANTÉ ATTRESSES AND OVERS Two zips located inside the cover at the foot and head of the mattress allow the elements to be quickly separated. The cells and the AXENSOR® system remain attached and must be manually disinfected: use a dishcloth doused in a CE certified surface detergent or detergent/disinfection solution at the concentration recommended for use by the manufacturer. -
Page 14: Diagram Of Advised Maintenance And Disinfection
ASKLÉSANTÉ IAGRAM OF ADVISED MAINTENANCE AND DISINFECTION Receipt of Full Device Pre-Treatment of surface (Decontamination) Spread over surface by µfibres Alcohol-based solution [Recommended: hygiene mask, gloves, apron] Removal by the waste Cover changed? industry Replacement cover identical to the original protection Physical cleanliness Unacceptable... -
Page 15: Alarms And Troubleshooting
ASKLÉSANTÉ ALARMS TROUBLESHOOTING The following table shows all the device alarms, what triggers them, their severity as well as possible troubleshooting. Signal Severity Trigger Possible troubleshooting Condition Time perio Flickering light 1- Plug the compressor back in alarm 2 - Check that state of the Electrical fault: and presence of electrical grid... -
Page 16: Maintenance - Check
MAINTENANCE - CHECK REQUENCY OF CHECKS It is recommended to check compressors and AUTOMORPHO AXENSOR® mattresses after every 2 years of use. In order to facilitate management and planning of these checks, operation timers let you know how long the compressor and mattress have been in use. -
Page 17: Disposal Of The Medical Device
ASKLÉSANTÉ Key to need for Meaning check: Signal Recommended date of revision past Timer flickering (operating time higher than 17,500 hours since quickly last revision) Timer flickering Revision scheduled within 2 months slowly Timer fixed Revision scheduled in over 2 months DISPOSAL OF THE MEDICAL DEVICE ROTECTION OF THE ENVIRONMENT This piece of equipment contains several recyclable materials. -
Page 18: Technical Features
ASKLÉSANTÉ WARNING: A guarantee seal is located under the simplified instructions on the side of the compressor. The presence of this seal ensures that the compressor has successfully passed all control tests, as well as its inviolability. In case of removal of this label by the user or an unauthorised third party, the integrity of the compressor can no longer be proven;... -
Page 19: Electromagnetic Compatibility
Axtair AUTOMORPHO AXENSOR®. The use of accessories and cables other than those provided and specified by ASKLE SANTE may result in increased emissions by the Axtair AUTOMORPHO AXENSOR® or decreased immunity, affecting its operation as well as its performance. - 17 -... - Page 20 DISTRIBUTED BY ASKLÉSANTÉ Groupe Winncare – 200, rue Charles Tellier – Actiparc de Grézan – 30 034 Nîmes Cedex 1 (France) Tel: +33 (0)4 66 02 15 15 – Fax. : 33 (0)4 66 02 15 00 – Email: contact@askle.com...
