4 Le Pas du Château
85670 SAINT PAUL MONT PENIT
TEL : +33 (0)2 51 98 55 64
FAX : +33 (0)2 51 98 59 07
Email :
info@medicatlantic.fr
Site Internet : http://www.winncare.fr

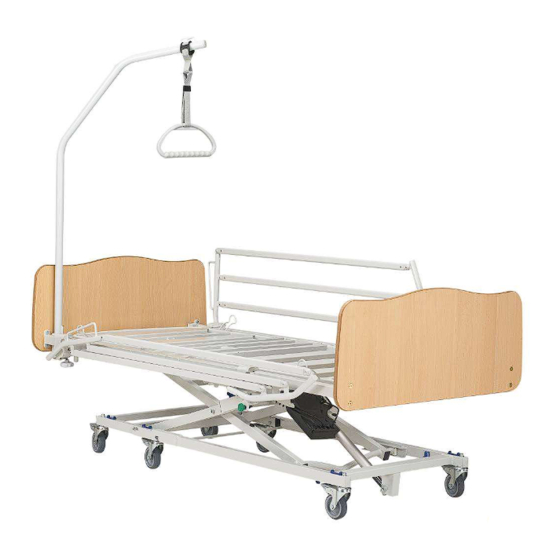

X PRESS DEUXIEME GENERATION
XO3R/P/C
2019_04_01
580086 Anglais

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XO3R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winncare XO3R

Summary of Contents for Winncare XO3R

  • Page 1 4 Le Pas du Château 85670 SAINT PAUL MONT PENIT TEL : +33 (0)2 51 98 55 64 FAX : +33 (0)2 51 98 59 07 Email : info@medicatlantic.fr Site Internet : http://www.winncare.fr X PRESS DEUXIEME GENERATION XO3R/P/C 2019_04_01 580086 Anglais...

  • Page 2: Table Of Contents

    1. TRANSPORT AND STORAGE 2. BED ENVIRONMENT CONDITIONS 3. GENERAL USE 3.1. P RECAUTIONS FOR USE 3.2. E LECTRICAL CHARACTERISTICS 3.2.1. E LECTRICAL DATA 3.2.2. P ROTECTION LEVEL AGAINST DUST AND LIQUID PENETRATION 3.2.3. E LECTROMAGNETIC COMPATIBILITY 3.2.4. E QUIPOTENTIALITY 4.
  • Page 3 9.1. B OARDS 9.2. M ETAL SIDE RAILS 9.3. W OODEN BARRIERS 9.4. A LUMINUM HALF SIDE RAILS 9.5. A NGLED LIFTING POLE AND STAND 10. USE OF SPECIFIC ITEMS 10.1. I A626-00 NSTALLATION OF THE LOADING KIT 10.2. I A627-00 NSTALLATION OF THE LOADING KIT...

  • Page 4: Transport And Storage

    Dear Sir/Madam, You have acquired a WINNCARE medical bed equipped with its accessories, and we thank you for your custom. Our beds and their accessories are designed and manufactured in compliance with the essential requirements of the European Directive 93/42/EEC and 2007/47/EEC.
  • Page 5 The wired control must be hooked to the headboard when not in use. In the case of the use of infrared remote control(s), WINNCARE allows the establishment of a single bed in the same room (or in a close environment) or a second bed only if the infrared options of 2 beds concerned are different (I and I1).

  • Page 6: Electrical Characteristics

    Only use original parts and accessories supplied by WINNCARE to guarantee safety and maintain product conformity. The bed must not be modified. Abnormal use of the bed may damage it or cause accidents to users, in which case the warranty shall be annulled.

  • Page 7: Protection Level Against Dust And Liquid Penetration

    PROTECTION TYPE VOLTAGE FREQUENCY INDEX LA27 / LA24 / LINAK actuator IP 66 24V DC LA34 / LA40 CA40 / CB6 / Supply box IP 66 230V AC 50 Hz CB16 / CO61 / CO41 Connection box IP 66 24V DC Operator’s side control IP 66 24V DC...

  • Page 8: Electromagnetic Compatibility

    3.2.3. Electromagnetic compatibility The bed will not move automatically when subject to electromagnetic disturbances within the limit of the values indicated below. Manufacturer’s declaration and guide – electromagnetic emissions The medical bed (see references in contents) has been designed for use in the electromagnetic environment specified below. The user should ensure that it is used in such an environment.

  • Page 9: Equipotentiality

    Radiated RF 3 V/m 3 V/m  80 MHz to 800 MHz EN 61000-4-3 80 to 800 MHz 80 MHz to 2.5 GHz  800 MHz to 2.5 GHz 2 to 2.5 GHz where is the maximum output power rating of the transmitter in watts (W) according to 10 V/m the transmitter manufacturer and d the recommended separation distance in meters (m).

  • Page 10: Bed Boards 90Cm/100Cm Width Compatible

    4. BED BOARDS 90cm/100cm WIDTH COMPATIBLE Item L=90cm L=100cm MEDIDOM II (2)(4) P318-00 P323-00 MEDIDOM II HOTELIER (4)(6) P326-00 COTE DE LUMIERE (5) P360-00 DAGONE (5) P388-00 ELEGANTTI P414-00 LOUIS PHILIPPE (1)(2) P415-00 COTE DE LUMIERE with wooden barriers (2)(5) P549-00 VAL DE VIE with wooden barriers (2)(4) P552-00...

  • Page 11: Compatible Accessories

      Y0300 Lifting pole on U shaped base, fixed height         Only accessories and boards supplied by WINNCARE guarantee you a compatibility with our products. Incompatible accessories and boards can pose RISKS...

  • Page 12: Use

    6. USE 6.1. Purpose of the bed  X’Press beds, depending on their configurations, are intended for home treatment (application environment 4).  X’Press beds are intended for persons whose size is greater than or equal to 146 cm, with a weight greater than or equal to 40 kg and a body mass index (BMI) greater than or equal to 17.

  • Page 13: Technical Characteristics

    6.4.1. Dimensions 16° to -4° (P) 12° (C) 13.5° (R) Castors Ø 10cm WINNCARE recommends using a patient hoist or a foodboard of which the bases do not exceed 12.5 cm in height. Version (C) 688 mm 960 mm 859 mm...

  • Page 14: Weight

    6.4.2. Weight Safe operational load of the bed: 170 kg (Patient 135 kg, Mattress 20 kg, Accessories 15 kg). Base Lifting Head-end bed Foot-end bed TOTAL system(Csissors) base base XPRESS bed (C) Bed, version manual crank 67,5 kg 15,5 kg 17,4 kg 17,6 kg 17 kg...

  • Page 15: Remote Control

    6.6. Remote control Carry out a test cycle when the bed is empty to familiarise yourself with the bed functions. Lifting and lowering of back rest Lifting and lowering of variable height Lifting and lowering of electric folding Simultaneous lifting and lowering of back rest and folding KEY TO LOCK A FUNCTION KEY IN VERTICAL...

  • Page 16: Braking

    6.7. Braking 6.7.1. Separate braking Check that the wheels are locked by trying to move the bed. If this is not done, the patient or another person who leans on the bed may fall. 7. ASSEMBLY AND DISMANTLING 7.1. Assembly 1) Remove the side rails of the small base ...
  • Page 17     2) Loosen the grip , remove the screw , the boards and the lifting pole...

  • Page 22: Dismanthing

    7.2. Dismanthing Repeat the operations in the reverse order 9 ; 8 ; 7 ; 6 ; 5 and 4. 3 DISMANTLING Finish by repeating operations 2 and 1 in the reverse order If necessary, replace the panels, side rails and lifting pole in their intended locations for transportation.

  • Page 23: Dismantling The Lifting System (Scissors)

    7.3. Dismantling the lifting system (Scissors)

  • Page 24: Assembly Of The Lifting System (Scissors)

    7.4. Assembly of the lifting system (Scissors) Repeating operations 3, 2 and 1 in the reverse order...

  • Page 25: Operation Of The Sleeping Surface

    8. OPERATION OF THE SLEEPING SURFACE 8.1. Back rest 8.1.1. Standard back rest In the event of a power cut or failure, flatten the back rest as follows : a) Disconnect the power supply. b) Dismantle the headboard . c) Stand at the head of the bed and take hold of the back rest handle  with one hand. Push or lift to compensate the pressure exerted by the patient and unhook the clip ...

  • Page 26: Emergency Release Of The Back Rest (Cardio Pulmonary Resuscitation)

    8.1.3. Emergency release of the back rest (Cardio Pulmonary Resuscitation) 1) Grasp the back rest with one hand. 2) With the other hand, activate one of the two handles on the back rest while lowering. If the handle is released, the back rest will stop moving. Release handles To reactivate the cardiopulmonary resuscitation system of high-load beds (270Kg), actuate the backrest electric actuator to its minimum position by pressing the...
  • Page 27 Removing a bed board :  Assemble the highest board on the head side. 9.2. Metal side rails  To positionning the side rail : Feet side Head side  Insert amount of the side rail folded in the grip jaw on the head side of the bed to hear “CLIC”. ...
  • Page 28  To lower the side rail : Feet side Head side  To raise the side rail : Check that the side rail is locked by trying to fold it without using the release pin 9.3. Wooden barriers See the attached instructions for fitting the wooden side rail. ...
  • Page 29 9.4. Aluminum half side rails See the attached instructions for fitting the aluminum half side rails.  To raise the side rail. 1-In intermediate position :  Raise the top side rail with both hands until it locks.  Check that it is properly slot in by trying to get it down without using the unlocking buttons. 2-In high position : ...
  • Page 30  To lower the side rail.  Raise the top side rail.  Press on the two unlocking buttons with both hands.  Support the rail as it lowers. 9.5. Angled lifting pole and IV stand In case of psycho-behavioral problems of the patient, it is necessary to fix the stem to the bed with the screw and the washer provided.
  • Page 31 10. USE OF SPECIFIC ITEMS 10.1. Installation of the A626-00 loading kit 10.2. Installation of the A627-00 loading kit The boards, side rails and lifting pole must be removed from the bed before installing the loading kit.   Insert the weights of the kit on the sleeves of the head half-base and tighten the rondos Use the kit to tip the bed and load it into a vehicle.
  • Page 32 No maintenance should be done in the presence of a patient on the bed. 11.1. Identification Warning Manufacturer’s address WINNCARE MEDICATLANTIC 4 LE PAS DU CHATEAU ST PAUL MT PENIT. Complies with the 85670 . FRANCE. +33(0)2 51 98 55 64...
  • Page 33 11.3. Maintenance Quality control of medical beds will be made by technical staff or trained biomedical and taking into account the normal conditions of use specified in the user guide, on a bed equipped with its accessories, including its barriers if necessary. The bed must be available to perform all quality control at least once a year, but also on special request and corrective maintenance on the performance that could be affected by the intervention.
  • Page 34 11.4. Quality inspection of medical beds ANNUAL MAINTENANCE OF MEDICAL BEDS IDENTIFICATION ESTABLISHMENT Type model / Trademark : Date of manufacture : Serial or park number : Application Environment VISUAL CONTROL Congruent Improper applicable Identification - label General cleanliness Condition and attachment of head and footboards Lifting pole (fastening, strap, winder, …) Sleeping surface (bedspring) Verification of tightenings, diverse nuts and bolts, pins, pivot...
  • Page 35 11.5. Cleaning and disinfection High pressure cleaning, machine cleaning, washing tunnel or jet cleaning is prohibited. Unplug the mains lead. Check that all the electrical parts are connected together. All the sockets of the supply box must be used or filled, otherwise its watertightness is not guaranteed.
  • Page 36 Do not rinse or wipe. Check the operation of all the bed functions Repair if necessary Pack in thermoplastic film Warning In the event of additional precautions (Contact precautions, Droplets or Air), apply the measures recommended by the hospital hygiene department The use of a Javel water solution of more than 5000ppm (0.5% of active chlorine) should be justified by a microbiological risk and only applied for the required time (Risk of ageing of some materials, especially their colour).
  • Page 37 11.8. Troubleshooting Guide DEFAULT POSSIBLE CASE HELP The whole bed is not working The bed is not electrically powered Check the electrical connection (Green power LED on controlbox) The remote control is fully locked Unlock the remote control The infrared remote control is not powered or is not Remove the rear cover connected to the receiver.
  • Page 38 Winncare products must therefore be separately sorted in the countries of the European Union. For France and Dom Tom, Winncare provides you with suitable recycling solutions for these Electrical and Electronic Equipment (EEE), information is available on the website http://www.winncare.fr or by contacting...
