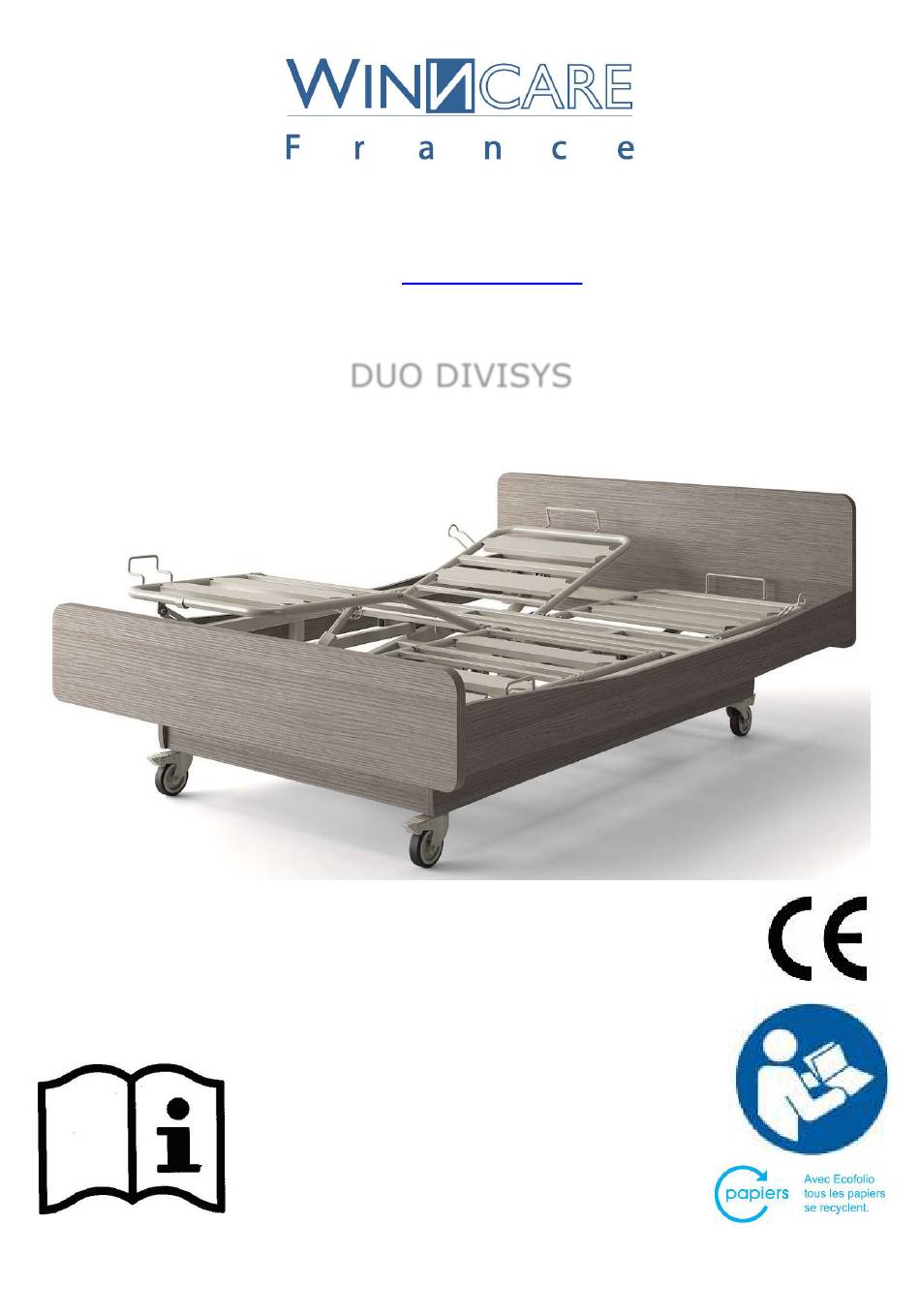

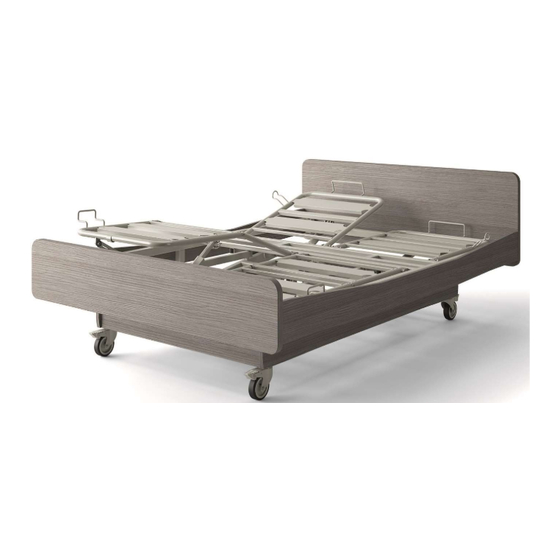

- Page 1 4 Le Pas du Château 85670 SAINT PAUL MONT PENIT TEL : +33 (0)2 51 98 55 64 FAX : +33 (0)2 51 98 59 07 Email : info@medicatlantic.fr Site Internet : http://www.winncare.fr DUO DIVISYS DO8C/P-8/9 2019_04_01 580046 Anglais...
-
Page 2: Table Of Contents
1. TRANSPORT AND STORAGE 2. BED ENVIRONMENT CONDITIONS 3. GENERAL USE 3.1. P RECAUTIONS FOR USE 3.2. E LECTRICAL CHARACTERISTICS 3.2.1. E LECTRICAL DATA 3.2.2. P ROTECTION LEVEL AGAINST DUST AND LIQUID PENETRATION 3.2.3. E LECTROMAGNETIC COMPATIBILITY 3.2.4. E QUIPOTENTIALITY 4. - Page 3 9.2. M ETAL SIDE RAILS 9.3. W OODEN BARRIERS 9.4. A LUMINUM HALF SIDE RAILS 9.5. A NGLED LIFTING POLE AND STAND 10. MAINTENANCE 10.1. I DENTIFICATION 10.2. I NSTRUCTIONS FOR DISMANTLING THE MOTORS 10.3. M AINTENANCE 10.4. Q UALITY INSPECTION OF MEDICAL BEDS 10.5.
-
Page 4: Transport And Storage
Dear Sir/Madam, You have acquired a WINNCARE medical bed equipped with its accessories, and we thank you for your custom. Our beds and their accessories are designed and manufactured in compliance with the essential requirements of the European Directive 93/42/EEC and 2007/47/EEC. - Page 5 The wired control must be hooked to the headboard when not in use. In the case of the use of infrared remote control(s), WINNCARE allows the establishment of a single bed in the same room (or in a close environment) or a second bed only if the infrared options of 2 beds concerned are different (I and I1).
-
Page 6: Electrical Characteristics
Only use original parts and accessories supplied by WINNCARE to guarantee safety and maintain product conformity. The bed must not be modified. Abnormal use of the bed may damage it or cause accidents to users, in which case the warranty shall be annulled. -
Page 7: Protection Level Against Dust And Liquid Penetration
PROTECTION TYPE VOLTAGE FREQUENCY INDEX LA27 / LA24 / LINAK actuator IP 66 24V DC LA34 / LA40 CA40 / CB6 / Supply box IP 66 230V AC 50 Hz CB16 / CO61 / CO41 Connection box IP 66 24V DC Operator’s side control IP 66 24V DC... -
Page 8: Electromagnetic Compatibility
3.2.3. Electromagnetic compatibility The bed will not move automatically when subject to electromagnetic disturbances within the limit of the values indicated below. Manufacturer’s declaration and guide – electromagnetic emissions The medical bed (see references in contents) has been designed for use in the electromagnetic environment specified below. The user should ensure that it is used in such an environment. -
Page 9: Equipotentiality
Radiated RF 3 V/m 3 V/m EN 61000-4-3 80 MHz to 800 MHz 80 to 800 MHz 80 MHz to 2.5 GHz 800 MHz to 2.5 GHz 2 to 2.5 GHz where is the maximum output power rating of the transmitter in watts (W) according to 10 V/m the transmitter manufacturer and d the recommended separation distance in meters (m). -
Page 10: Bed Boards 120/140/160Cm Width Compatible
4. BED BOARDS 120/140/160cm WIDTH COMPATIBLE Item Width 120 Width 140 Width 160 MEDIDOM II (2) P319-00 P320-00 P321-00 WINNEA P322-00 MEDIDOM II ELEGANT (2) P324-00 P325-00 Louis Philippe (1)(2) P416-00 P417-00 P418-00 Auzence II P612-00 P613-00 P614-00 Abélia II P617-00 P618-00 P619-00... -
Page 11: Compatible Accessories
Lifting pole on U shaped base, fixed height 1 incompatible with bed base extension Only accessories and boards supplied by WINNCARE guarantee you a compatibility with our products. Incompatible accessories and boards can pose RISKS... -
Page 12: Use
6. USE 6.1. Purpose of bed Depending on their configuration, the beds DUO Divisys are intended for home care. The beds DUO Divisys are intended for persons whose size is greater than or equal to 146 cm, with a weight greater than or equal to 40 kg and a body mass index (BMI) greater than or equal to 17. -
Page 13: General Description
Left leg rest Base and cross lifting pole slots braces. slots 6.4. Technical characteristicstechniques 6.4.1. Dimensional 23° 16° à -4° 14° WINNCARE recommends the use of a patient lift or a dining table bases with less than 13,5 cm high. -
Page 14: Weight
Version (C) Version (P) Dimensional (mm) 140 DUO Bed 160 DUO Bed 160 DUO Bed (option V) 6.4.2. Weight Normal load in use: 315 kg (Patient 270 kg, Mattress 30kg, Accessories 15kg) Base and Head-end bed Foot-end bed TOTAL brace base base Bed 140 DUO (C) -
Page 15: Electrical Connection Diagram
6.5. Electrical connection diagram 6.5.1. Double Electric statements Folder, Double statements electric folding legs with knees Control box CA 40 Variable height Left back rest Plugs Remote control Right back rest 6.5.2. Double Electric statements Folder, Double statements electric folding legs with knees Control box Electrical connection Remote control or right side if cap infrared option... -
Page 16: Electrical System Initialization
6.6. Electrical system initialization The control box can put itself in default (bad connection, cable fault, actuator fault ...). In this case the movements are impossible and the control box makes short and discontinuous beeps at the push of a button the remote control It is necessary to reset the electrical assembly. -
Page 17: Remote Control
6.7. Remote control Carry out a test cycle when the bed is empty to familiarise yourself with the bed functions Lifting and lowering of back rest Lifting and lowering of variable height Lifting and lowering of electric folding Simultaneous lifting and lowering of back rest and folding... -
Page 18: Bracking
6.8. Bracking 6.8.1. Individual bracking Check that the wheels are locked by trying to move the bed. If this is not done, the patient or another person who leans on the bed may fall. 7. ASSEMBLING AND DISMANTLING 7.1. Assembling 1) Brake the wheels 2) Place the foot-halt of the base on the base/cross brace ensemble to lock it With the 2 clips. -
Page 19: Dismantling
3) Place the head-half of the base on the cross brace and slot it into the foot-half. 4) Tighten the rondo screws 5) Connect the variable height jack, leg rest jack (depending on option) and plug into the mains 7.2. Dismantling 1) Brake the wheels and place the bed base in low position. -
Page 20: Operation Of The Sleeping Surface
8. OPERATION OF THE SLEEPING SURFACE 8.1. Back rest 8.1.1. Standard back rest In the event of a power cut or failure, flatten the back rest as follows : a) Disconnect the power supply. b) Dismantle the headboard . c) Stand at the head of the bed and take hold of the back rest handle with one hand. Push or lift to compensate the pressure exerted by the patient and unhook the clip ... -
Page 21: Emergency Release Of The Back Rest (Cardio Pulmonary Resuscitation)
8.1.3. Emergency release of the back rest (Cardio Pulmonary Resuscitation) 1) Grasp the back rest with one hand. 2) With the other hand, activate one of the two handles on the back rest while lowering. If the handle is released, the back rest will stop moving. Release handles To reactivate the cardiopulmonary resuscitation system of high-load beds (270Kg), actuate the backrest electric actuator to its minimum position by pressing the... -
Page 22: Metal Side Rails
Removing a bed board : Assemble the highest board on the head side. 9.2. Metal side rails To positionning the side rail : Feet side Head side Insert amount of the side rail folded in the grip jaw on the head side of the bed to hear “CLIC”. ... -
Page 23: Wooden Barriers
To lower the side rail : Feet side Head side To raise the side rail : Check that the side rail is locked by trying to fold it without using the release pin 9.3. Wooden barriers See the attached instructions for fitting the wooden side rail. ... -
Page 24: Aluminum Half Side Rails
9.4. Aluminum half side rails See the attached instructions for fitting the aluminum half side rails. To raise the side rail. 1-In intermediate position : Raise the top side rail with both hands until it locks. Check that it is properly slot in by trying to get it down without using the unlocking buttons. 2-In high position : ... -
Page 25: Angled Lifting Pole And Iv Stand
To lower the side rail. Raise the top side rail. Press on the two unlocking buttons with both hands. Support the rail as it lowers. 9.5. Angled lifting pole and IV stand In case of psycho-behavioral problems of the patient, it is necessary to fix the stem to the bed with the screw and the washer provided. -
Page 26: Maintenance
No maintenance should be done in the presence of a patient on the bed. 10.1. Identification Warning Manufacturer’s address WINNCARE MEDICATLANTIC 4 LE PAS DU CHATEAU ST PAUL MT PENIT. Complies with the 85670 . FRANCE. +33(0)2 51 98 55 64... -
Page 27: Maintenance
10.3. Maintenance Quality control of medical beds will be made by technical staff or trained biomedical and taking into account the normal conditions of use specified in the user guide, on a bed equipped with its accessories, including its barriers if necessary. The bed must be available to perform all quality control at least once a year, but also on special request and corrective maintenance on the performance that could be affected by the intervention. -
Page 28: Quality Inspection Of Medical Beds
10.4. Quality inspection of medical beds ANNUAL MAINTENANCE OF MEDICAL BEDS IDENTIFICATION ESTABLISHMENT Type model / Trademark : Date of manufacture : Serial or park number : Application Environment VISUAL CONTROL Congruent Improper applicable Identification - label General cleanliness Condition and attachment of head and footboards Lifting pole (fastening, strap, winder, …) Sleeping surface (bedspring) Verification of tightenings, diverse nuts and bolts, pins, pivot... -
Page 29: Cleaning And Disinfection
10.5. Cleaning and disinfection High pressure cleaning, machine cleaning, washing tunnel or jet cleaning is prohibited. Unplug the mains lead. Check that all the electrical parts are connected together. All the sockets of the supply box must be used or filled, otherwise its watertightness is not guaranteed. -
Page 30: Lifetime
Do not rinse or wipe. Check the operation of all the bed functions Repair if necessary Pack in thermoplastic film Warning In the event of additional precautions (Contact precautions, Droplets or Air), apply the measures recommended by the hospital hygiene department The use of a Javel water solution of more than 5000ppm (0.5% of active chlorine) should be justified by a microbiological risk and only applied for the required time (Risk of ageing of some materials, especially their colour). -
Page 31: Troubleshooting Guide
10.8. Troubleshooting Guide DEFAULT POSSIBLE CASE HELP The whole bed is not working The bed is not electrically powered Check the electrical connection (Green power LED on controlbox) The remote control is fully locked Unlock the remote control The infrared remote control is not powered or is not Remove the rear cover connected to the receiver. -
Page 32: Scrapping
Environment Department of Winncare at n ° +33 (0)2.51.98.55.64 Winncare also encourages you to limit the possible effects of waste on the environment and public health in all other countries, by complying with local selective sorting laws, separating waste from Electrical and Electronic...
