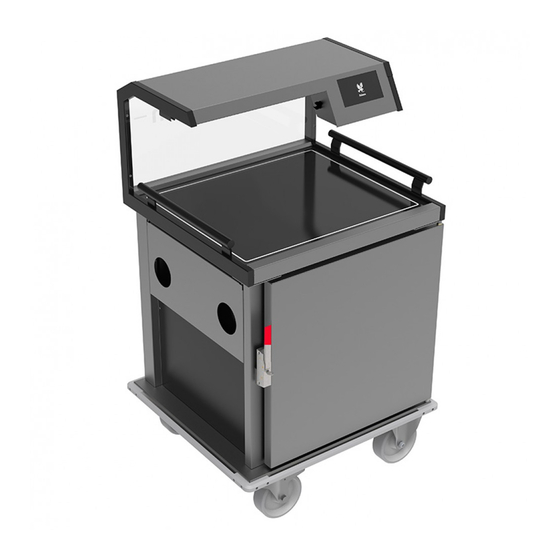

Falcon VARIO-THERM F1H Install Instructions Manual
Hide thumbs Also See for VARIO-THERM F1H:

Advertisement

Quick Links

Install Instructions
F1H, F1V, F2HH, F2HR, F2VR, F2HRP
Read these instructions before install.
DATE PURCHASED:
MODEL NUMBER:
SERIAL NUMBER:
DEALER:
SERVICE PROVIDER:
T101066
Rev No 6
Published: 2/2/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VARIO-THERM F1H and is the answer not in the manual?

Questions and answers

Summary of Contents for Falcon VARIO-THERM F1H

  • Page 1 Install Instructions F1H, F1V, F2HH, F2HR, F2VR, F2HRP Read these instructions before install. DATE PURCHASED: MODEL NUMBER: SERIAL NUMBER: DEALER: SERVICE PROVIDER: T101066 Rev No 6 Published: 2/2/24...
  • Page 2 Dear Customer Thank you for choosing Falcon Foodservice Equipment. This manual can be downloaded from www.falconfoodservice.com or scan here: IMPORTANT: Please keep this manual for future reference. Falcon Foodservice Equipment HEAD OFFICE Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
  • Page 3 SYMBOLS SCREWDRIVER SPANNER ALLEN KEY GREASE FLAMMABLE WARNING MATERIAL...
  • Page 4 • This appliance may be discoloured due to testing. • These instructions are only valid if the country code appears on the appliance. If the code does not appear on the appliance, refer to the technical instructions for adapting the appliance to the conditions for use in that country. •...
  • Page 5 REFRIGERANT R290 (CARE 40, PROPANE). ONLY ENGINEERS WHO HAVE BEEN TRAINED IN THE SAFE HANDLING AND USE OF HYDROCARBON (HC) REFRIGERANTS SHOULD WORK ON THIS SYSTEM • Work on this system in a well-ventilated area or outside. • Use a local leak detector to indicate if there is hydrocarbon in the air around the system before and during work on the system (place at a low level - HC’s are heavier than air.
  • Page 6 Electrical Safety and Advice Regarding Supplementary Electrical Protection Commercial kitchens and foodservice areas are environments where electrical appliances may be located close to liquids or operate in and around damp conditions or where restricted movement for installation and service is evident. The installation and periodic inspection of the appliance should only be undertaken by a qualified, skilled, and competent electrician;...
  • Page 7: Table Of Contents

    Contents APPLIANCE INFORMATION ..................8 DIMENSIONS / CONNECTION LOCATIONS ............9 APPLIANCE WEIGHT TABLE ................9 TECHNICAL DATA TABLE ................... 10 WHEN PLUGGING IN ....................11 DUAL SUPPLY & RCD REQUIREMENTS ............11 16A SUPPLY ......................12 MANOEUVRING THE TROLLEY ................12 COMMISSIONING ....................
  • Page 8: Appliance Information

    1.0 APPLIANCE INFORMATION A - Serial No B - Model No C – Refrigerant Gas D – CO2 Equivalent E – Gas Weight F – Global Warming Potential G - Electrical Rating H - Total Electrical Power I - Electrical Phase Loading J –...
  • Page 9: Dimensions / Connection Locations

    1.1 DIMENSIONS / CONNECTION LOCATIONS 1.2 APPLIANCE WEIGHT TABLE APPLIANCE UNIT WEIGHT (kg) PACKED WEIGHT (kg) F2HH F2HR F2HRP F2VR...
  • Page 10: Technical Data Table

    1.3 TECHNICAL DATA TABLE SINGLE PHASE 13AMP SINGLE SUPPLY CURRENT POWER (kW) @ MODEL PHASE ACTUAL (A) @ 230V 230V F2HR F2HRP F2VR SINGLE PHASE 13AMP DUAL SUPPLY CURRENT POWER (kW) @ MODEL PHASE ACTUAL (A) @ 230V 230V F2HH SINGLE PHASE 16AMP SINGLE SUPPLY CURRENT POWER...
  • Page 11: When Plugging In

    Always ensure both supplies are separate. Do not plug any other appliance along with this appliance into a double socket. Only use Falcon-approved spare parts, including the 13A plug. For more information on maintaining your appliance scan the QR code below.
  • Page 12: Supply

    2.2 16A SUPPLY When a trolley with a 16A commando plug fitted needs to be plugged into a 13A supply, use the 16A to 13A adaptor lead, as shown below. NOTE: ONLY USE THE ADAPTOR LEAD WHEN THETROLLEY IS IN HOLD MODE.
  • Page 13: Commissioning

    2.4 COMMISSIONING Before plugging in: Ensure all packaging has been removed and disposed of responsibly. If required wipe clean the unit as per section 5 in the user manual. iii. Check the appliance is free from damage. Ensure the appliance is on a flat surface and the brakes have been applied. Ensure all shelves and dividers are in position.
  • Page 14: Self-Test

    2.5 SELF-TEST To run the self-test function follow the steps in this section. 2.5.1 To access configuration on main screen above, touch the cogs icon on the trolley controller screen. 2.5.2 Screen will be displayed as below, touch the self-test Icon 2.5.3 Enter Self-Test Pin <2555>...
  • Page 15 2.5.5 The self-test diagnostics will start to run and the display will return to the home screen showing the tests being carried out on the message bar. As shown below. On completion ‘Self-test finished’ appears on the message bar. If any test fails, the screen below will be shown and a buzzer will sound. To cancel the buzzer, press the bell icon.
  • Page 16 2.5.6 To view the results, repeat steps 2.5.1 to 2.5.3. The screen below will be shown. Failed results will be shown in red text. Passed in green. If any “Results” are highlighted in red (see image below) consult the fault finding. section in the Service manual.
  • Page 17: Set Appliance To Manual Mode

    2.6 SET APPLIANCE TO MANUAL MODE 2.6.1 Ensure the appliance is in manual mode. (As below text circled in yellow): 2.6.1 To set the appliance to manual mode touch the cogs icon on the appliance controller screen. 2.6.2 Access oven mode (manual/automatic) settings, touch the icon on the configuration screen.
  • Page 18: Check The Oven

    F1H, F1V, F2HR, F2VR & F2HRP Models shown F2HH Model Shown The screen will be displayed either of the above depending on model. 2.6.4 To set the appliance to operate in manual mode change the top right-hand or left-hand box to “manual” as shown. 2.7 CHECK THE OVEN 2.7.1 Using an oven thermometer with a probe place the probe in the centre of the...
  • Page 19: When Commissioning Complete

    2.7.3 Set oven time by touching top value, circled yellow as below, to the right of the oven temperature to 25mins. 2.7.4 Touching the COOK icon will heat the oven to the set temperatures. The timer will countdown and the message bar will indicate actual food removal in real-time.
  • Page 20: Servicing And Maintenance Information

    2. Serial number – Found on the data plate. (Refer to page 8). 3. Brief description of the issue. To contact Falcon for a warranty issue dial (UK only) 01786 455 200 and select Warranty Issues from the menu. MAINTENANCE CHECK Regular servicing of the appliance should be undertaken to ensure correct operation, it is functioning as intended, and safe to use.
