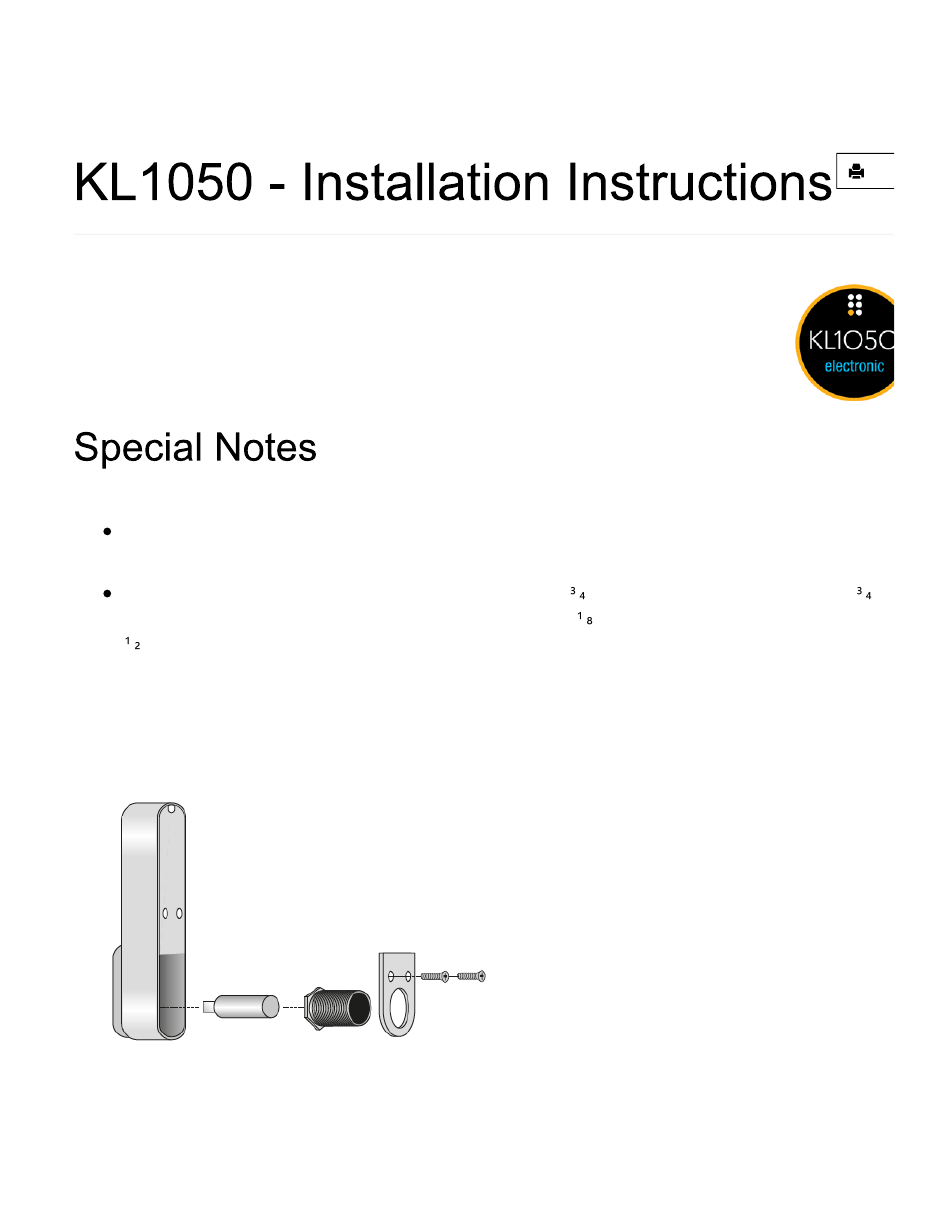

CODELOCKS KitLock KL 1050 Installation Instructions

Hide thumbs
1
2
3

Advertisement

Quick Links

Download this manual
KA-01087 ꞏ Customer Self-Service
Home (/) > Knowledge Base - Home (/knowledgebase/) > KA-01087
Please read carefully:
Before installing the lock, familiarise yourself with the operation and programming instructions. Your
lock will require battery load and installation.
Your KitLock is supplied ready to fit to doors up to 19mm ( ⁄ ") thick. For doors between 19mm ( ⁄ ")
and 25mm (1") thick, you will need to install the 28.5mm (1 ⁄ ") spare spindle (see below). A 12mm
( ⁄ ") spindle is also included for sheet metal doors (see below).
1.
Remove the lower 2 fixing screws
2.
Remove cover plate, spindle and threaded shaft
3.
Replace with spare spindle and threaded shaft
4.
Replace cover plate

1 of 3
