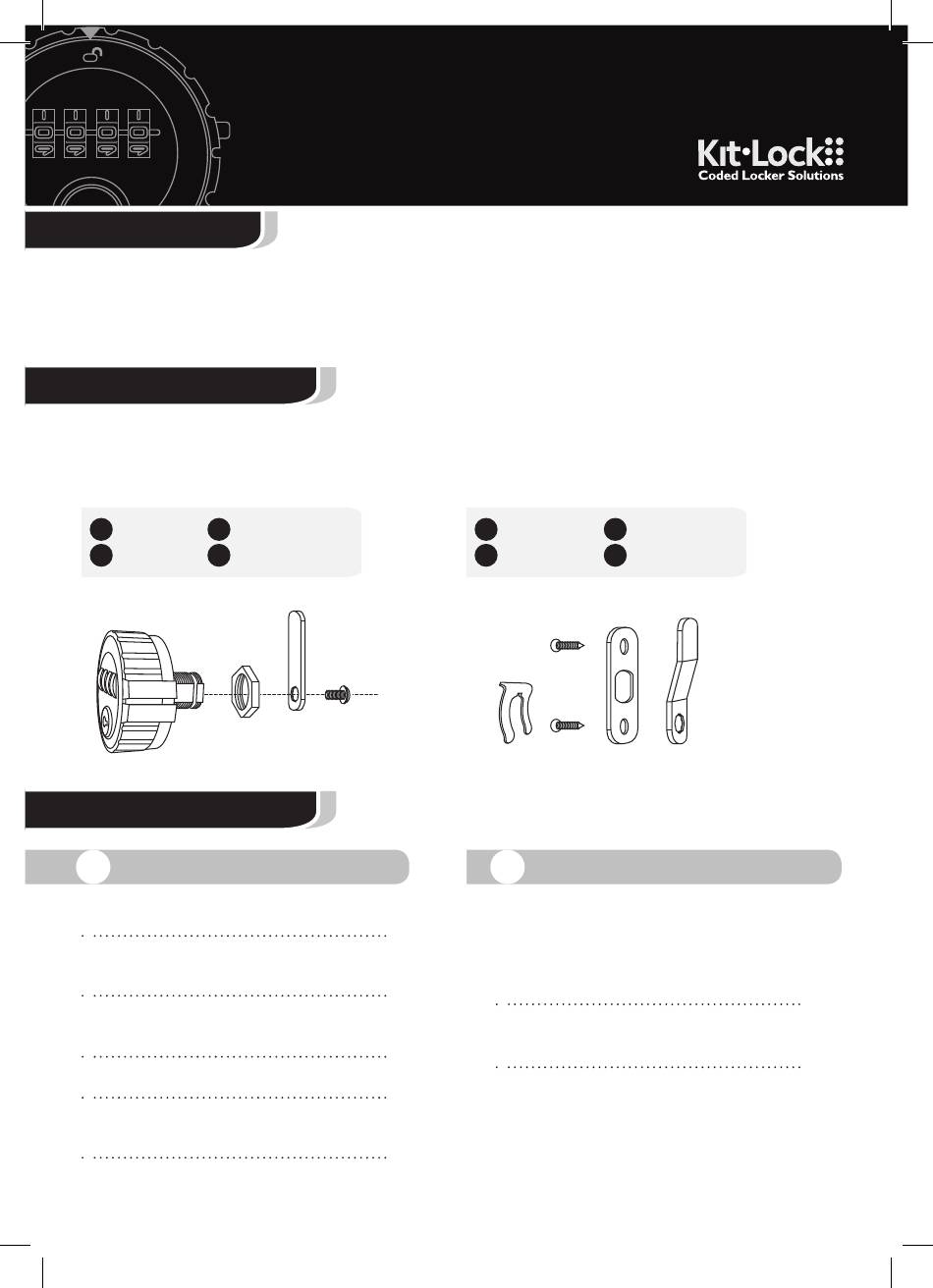

CODELOCKS KitLock KL1O Installation And Operating Instructions

SPECIAL NOTES
Please read carefully:
•
Before installing the lock, familiarise yourself with the installation and operating instructions.
•
The factory preset combination is 0-0-0-0.
•
Your KitLock is supplied ready to fit to doors up to 19mm (
FITTING INSTRUCTIONS
The KitLock can be fitted to cabinets, cupboards and lockers etc. as a direct replacement for existing cam locks.
It can also be fitted easily to cupboards and cabinets that do not have an existing locking device.
Fixing Pack A Default Supply
1 3
KitLock
Straight cam x 1
2 4
Hex nut x 1 Screw x 1
1.
2.
INSTALLATION GUIDE
A
Replace existing cam lock with KitLock
Step 1 Remove existing cam lock.
Step 2 Fit the KitLock to the door, passing the
spindle through the existing hole.
Step 3 Now secure the lock by threading the hex nut
onto the spindle.
Step 4 Fit cam and secure with screw.
Step 5 Now check the operation of the lock using the
factory preset combination 0-0-0-0.
Step 6 If the lock is functioning correctly, change the
code using the instructions overleaf.
KL1O
Installation and Operating Instructions
3.
4.
3 / ") thick.
4
Fixing Pack B Optional Additional Fixings
1 3
Metal Clip x 1
Washer x 1
2 4
Screws x 2 Crank Cam x 1
3.
2.
1.
B
New Installation
N.B. Optional Fixing Pack B (above) may be required.
Step 1 Mark a position at a suitable distance from
the door edge, ensuring enough clearance
for the cam to work.
Step 2 Using the 'Typical Door Prep.' dimensions
(see overleaf), drill a hole to suit..
Step 3 Continue installation from step 2 to 6, left.
4.
