8/14/23, 11:49 AM
Codelocks Support Portal

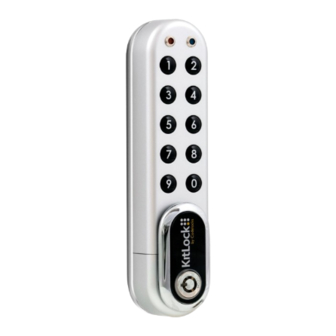

KL1000 G3 NetCode - Programming and
Operating Instructions
Receiving the same improved design as our KL1000 G3, the KL1000 G3 NetCode also
introduces new features including NetCode Public, auto-unlock at a set time and dual
authorisation becoming the most flexible lock in the KL1000 range.
20 User Codes
Auto-unlock after set period
Key-override
On-door battery change
Auto-unlock at set time
NetCode
Features
Operating
Finishes
IP Rating
Refer to fitting instructions. Gasket required.
Key Override
Lock Type
Operations
Orientations
Temperature Range
Power
about:blank
KL1000 G3 NetCode - Programming and Operating Instructions
Black Chrome, Silver Chrome
IP55
Yes
Cam*
100,000
Vertical, Left and Right
0°C - 55°C
1/12
Advertisement
Related Manuals for CODELOCKS KL1000 G3 NetCode
Summary of Contents for CODELOCKS KL1000 G3 NetCode
- Page 1 KL1000 G3 NetCode - Programming and Operating Instructions Receiving the same improved design as our KL1000 G3, the KL1000 G3 NetCode also introduces new features including NetCode Public, auto-unlock at a set time and dual authorisation becoming the most flexible lock in the KL1000 range.
-
Page 2: Standard Features
8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions Batteries 2x AAA Battery Override On-door Battery Change *Slam latch accessory available separately. The slam latch is fitted in-lieu of the cam. Management Master Code Management and administration of the lock. In Public Function, the Master Code will also clear an active User Code. - Page 3 Generated codes can be sent by email or SMS to any email account or mobile phone via a password protected Codelocks Portal account. NetCodes are 7 digits in length. Important: To initialise your KL1000 G3 NetCode, visit our Codelocks Connect Portal. After initialisation, you must chose the NetCode operating mode using Program 21.
-
Page 4: Master User
8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions NetCode Private Locked by default. Allows repeated access within a set time period. Lock will re-lock automatically. NetCode Public Unlocked by default. Allows repeated access within a set time period. NetCode required to lock and unlock. - Page 5 8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions Delete a User Code #(Sub)Master Code • • User Position •• Example : #11335577 • • •• Result : The User Code in position 06 has been deleted Note : Entering 00 as position will delete all User Codes...
-
Page 6: Operating Functions
8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions Result : The Technician Code 555777 has been added Delete Technician Code #(Sub)Master Code • • 000000 • 000000 •• Example : #11335577 • • 000000 • 000000 ••... - Page 7 •• Result : The lock will remain locked until a User, Technician, Sub-Master or Master Code is entered. NetCode Time sensitive codes can be created via the Codelocks Portal or API and a valid subscription is required. #Master Code •...
- Page 8 8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions #Master Code • • Enable/Disable <00|01> • • Enable Example : #11335577 • • • • Result : Dual authorisation has been enabled. Any two active User Codes must be entered to unlock.
- Page 9 8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions Restrict Operating Time Restricts locking within the set hours. In Private Function, no locking or unlocking will be possible. In Public Function, no locking will be possible. Master and Sub-Master will always allow access.
- Page 10 8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions Note : The user will have to enter their NetCode followed by a 4-digit Private User Code (PUC). Thereafter, the user will only be able to use their PUC to unlock the lock. The validity period will be as per the original NetCode.
- Page 11 8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions Enable Example : #11335577 • • • • Result : The previously used NetCode will be blocked whenever a new NetCode is entered. Disable Example : #11335577 • •...
-
Page 12: Factory Reset
8/14/23, 11:49 AM KL1000 G3 NetCode - Programming and Operating Instructions • • • • • • • • • • • • • • • • • • • • Factory Reset Via Keypad #Master Code • • • •...
