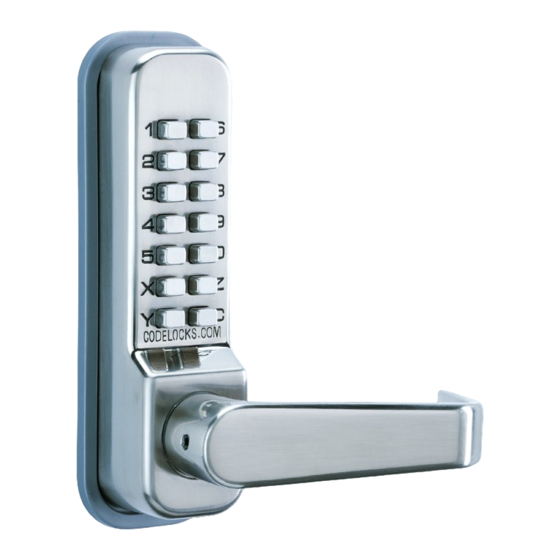

CODELOCKS 400 mechanical Code Change Manual

CODELOCKS 400 mechanical Code Change Manual

Advertisement

Quick Links

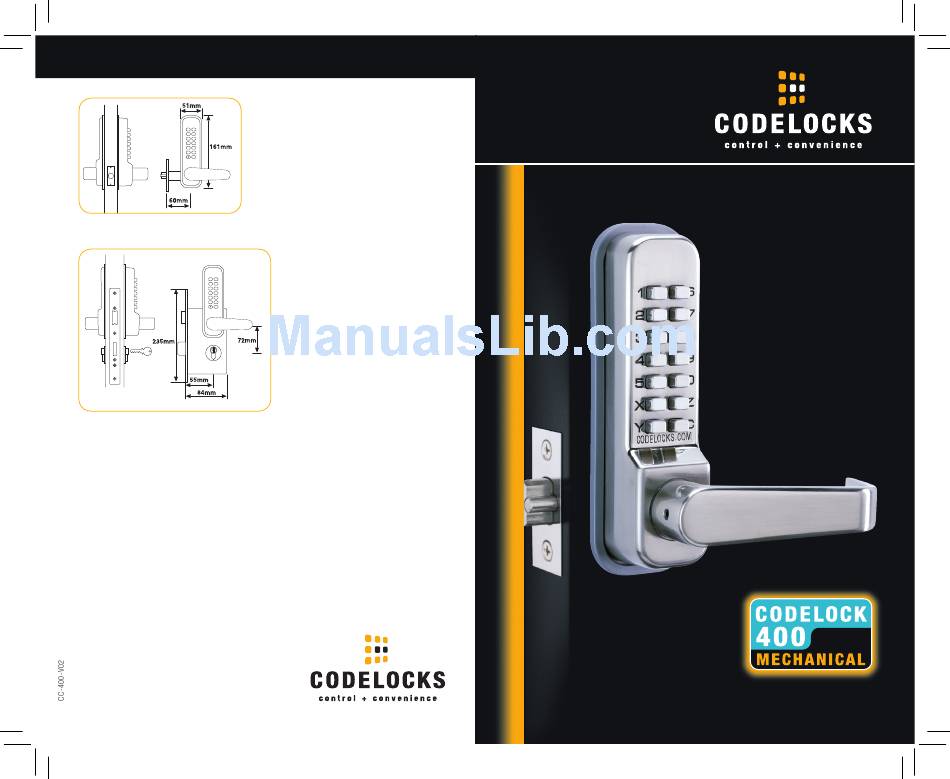

DIMENSIONS
Model 410/415
With deadlocking tubular latchbolt
Model 420/425
With full 'Panic Function'
mortice lock & cylinder
CODELOCKS LTD UK
Tel: +44 (0) 1635 239645
Fax: +44 (0) 1635 239644
sales@codelocks.co.uk
Helpline, service & spares
FREEPHONE 0800 393 405
CODELOCKS US
Tel: +1 714 979 2900
Fax: +1 714 979 2902
Help:1.877.CODELOCK
sales@codelocks.us
www.codelocks.com
400 code change.indd 1-2
FEATURES
Code Free Entry Mode by
pressing the 'Y' passage set
button after entering the code
(415 and 425 only). Reset by
pressing the 'Y' button and
then the 'C' button
Inside handle always retracts the
latch for exit
Weather resistant
PVD lifetime finishes – stainless
steel and polished brass
Vandal resistant, with stainless
steel buttons, and clutch
protection if the outside handle is
forced
Reversible handles
Easy code change as often as
required
Fits doors between 35mm and
65mm thick without modification
FEATURES - MODEL 420/425 ONLY
Split follower lock enables inside
handle to retract latch and
deadbolt simultaneously. Prevents
accidental lock-ins
Deadbolt thrown by key to lock
out code users after work hours
Key will retract the latchbolt
giving access for admin functions
Double Euro-profile cylinder with
3 keys. Any Euro-profile cylinder
may be used excluding thumb
turn versions
On multiple door installations
consideration should be given to
having all cylinders keyed alike,
with restricted key issue, for ease
of management
CODE
CHANGE
GUIDE
9/6/06 12:42:15 pm

Advertisement

loading
Need help?

Need help?

Do you have a question about the 400 mechanical and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CODELOCKS 400 mechanical

  • Page 1 Double Euro-profile cylinder with ■ 3 keys. Any Euro-profile cylinder may be used excluding thumb turn versions CODELOCKS LTD UK On multiple door installations ■ consideration should be given to Tel: +44 (0) 1635 239645 having all cylinders keyed alike,...
  • Page 2 MANY CODES TO CHOOSE FROM CODE CHANGE INSTRUCTIONS The CL400 code chamber (models 410 and 420) consists of 13 buttons from which the NOTE: On models 415 and 425: a) press the ‘Y’ button and the ‘C’ button to code is selected, and a ‘C’ button which is used to re-set the chamber after an incorrect ensure that the lock is not in passage set mode, b) when changing code do not entry, and which must always be used as the first digit of a code.
