Gira 5363 Series Operating Instructions

System 3000
Operating top unit Memory
Operating top unit Memory
Order no.: 5363 ..
Operating instructions
1

Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
These instructions are an integral part of the product, and must remain with the end customer.
2

Device components

(1) Insert
(2) Frame
(3) Insert operation button
ƞ = Blind/shutter up / light on, brighter
Ɵ = Blind/shutter down / light off, darker
(4) Disabling function
Ɨ = Disabling function
Ɯ = Memory function
(5) Function LED
Red = Disabling function active
Green = Memory function active
(6) Status LED, green
On = Blind/shutter activated / light switched on
3

Function

Intended use
– Manual and time-controlled operation of Venetian blinds, shutters, awnings or lighting
– Operation switching, dimming or Venetian blind insert or 3-wire extension of System 3000
32595312 10865950

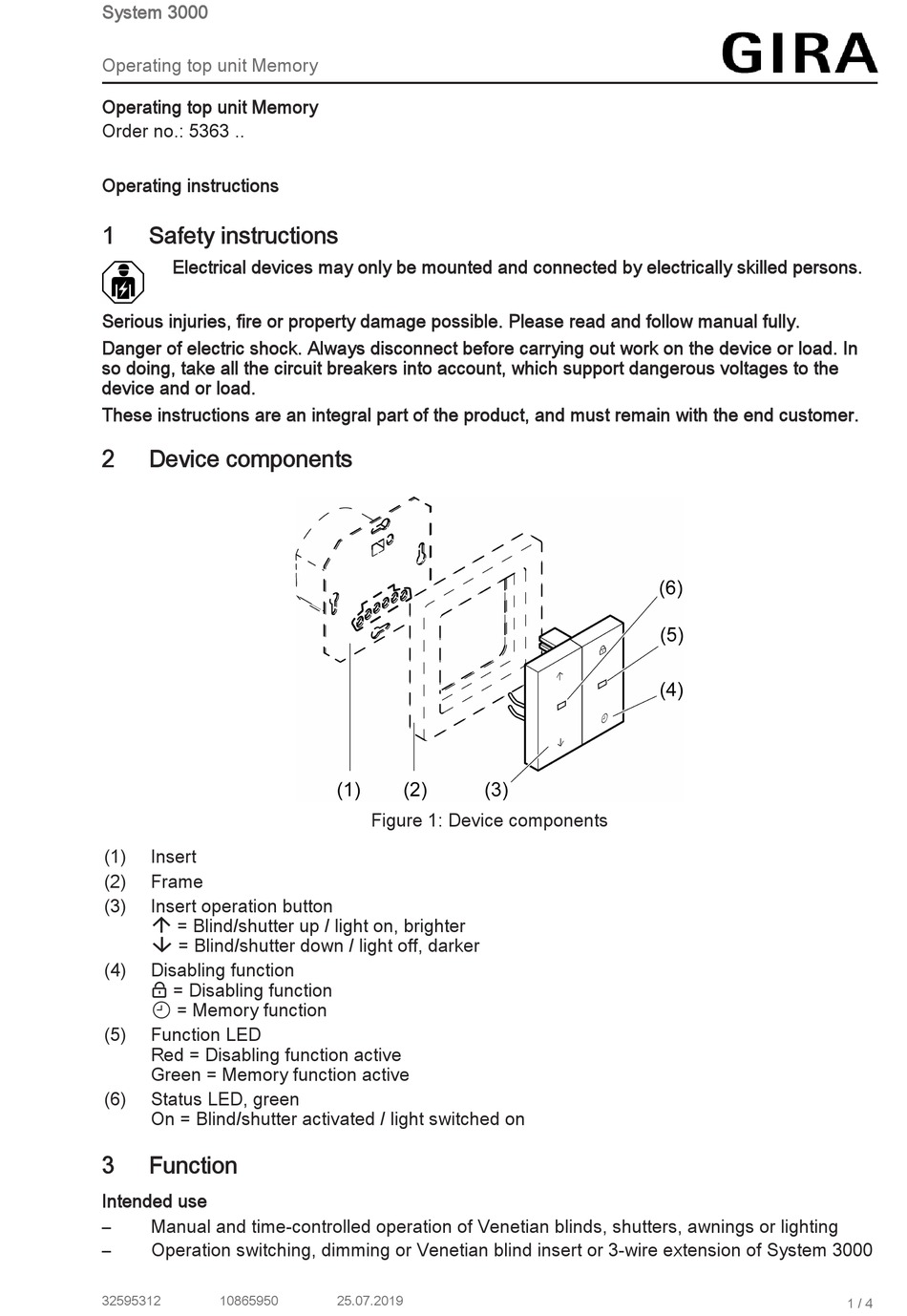

Figure 1: Device components
25.07.2019
1 / 4
