Control 9 Client
Control 9 Client
Order-No. : 2078 00
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect device before working on it. At the same
time, take into account all circuit breakers that supply dangerous voltage to the device.
Do not operate the device with sharp or pointed objects. The touch-sensitive surface
could be damaged.
Do not use any sharp objects, acids or organic solvents for cleaning. Device can be
damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

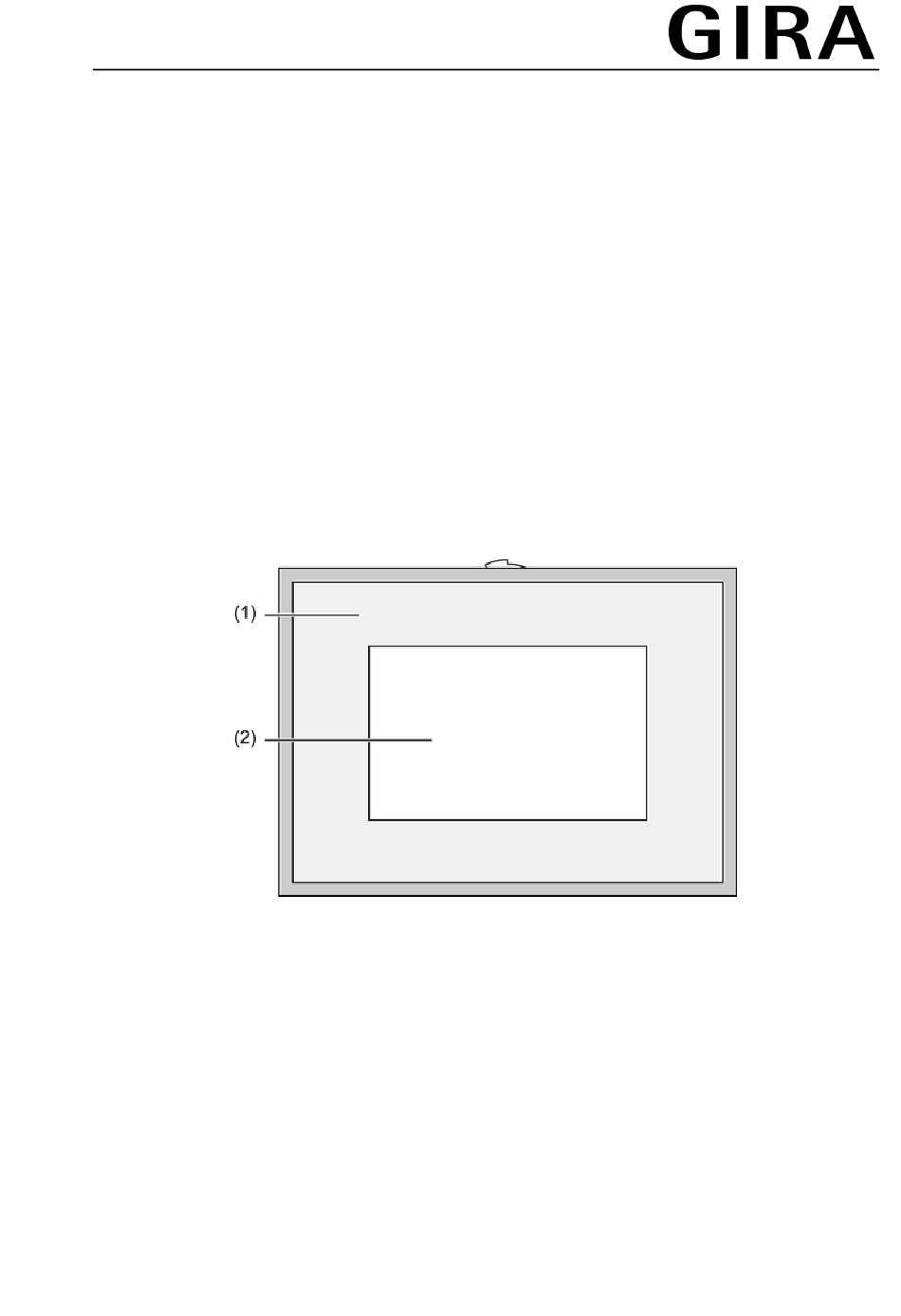

Figure 1: Front view
1/10
82576702
15.11.2010
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gira Control 9 Client
Summary of Contents for Gira Control 9 Client
- Page 1 Control 9 Client Control 9 Client Order-No. : 2078 00 Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Control 9 Client Figure 2: Front view without Design frame (1) Design frame (2) Touchscreen surface (3) Bracket for Design frame (4) Holes for wall fastening (5) Slot for SD memory card (6) On/off push-button (7) Programming interface - for future applications (8) Prog.
-
Page 3: Operation
When delivered, the device logs in automatically with the username Control and the password Gira . Additional users can be added to the system at any time and the settings changed. Carrying out a reset If the panel can no longer be operated, e.g. - Page 4 Control 9 Client Graphical user interface Figure 3: Monitor elements (21) Windows desktop (22) Start menu (23) Mouse pointer (24) On-screen keyboard (25) Windows taskbar (26) Icon for mouse button switch (27) Preinstalled programs for screen control Operation is carried out using a mouse pointer (23), which follows the operations of the touchscreen.
- Page 5 Control 9 Client Screen settings In the information area of the taskbar, it is possible to open service programs for screen settings, e.g. for screen brightness and the calibration of the touchscreen. Figure 4: Icons for service programs Settings for screen brightness, screen alignment or changing write-protection: Select the icon (28) with the mouse pointer.
- Page 6 Control 9 Client 5 Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before working on the device, disconnect all the corresponding miniature circuit breakers. Cover up live parts in the working environment.
- Page 7 Control 9 Client Figure 6: Ventilation openings, front side Ensure sufficient cooling. Do not cover the ventilation openings on the front and rear side of the appliance box (Figure 6). Install the panel-mounted housing in the correct position - horizontally or vertically aligned in the wall.
- Page 8 Control 9 Client Labelling Function Audio R in Input, audio signal, right Audio L in Input, audio signal, left Audio GND GND audio inputs Audio R out Output, audio signal, right Audio L out Output, audio signal, left Audio GND...
-
Page 9: Warranty
Control 9 Client Relative humidity 15 ... 85 % (No moisture condensation) Safety class System Processor type Intel Atom Z510 Clock speed 1.1 GHz L2 cache 512 kB System chipset Intel System-Controller Hub US15W Mass storage 2 GB SSD 1 GB RAM... - Page 10 Control 9 Client Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-399 www.gira.de info@gira.de 10/10 82576702 15.11.2010...
