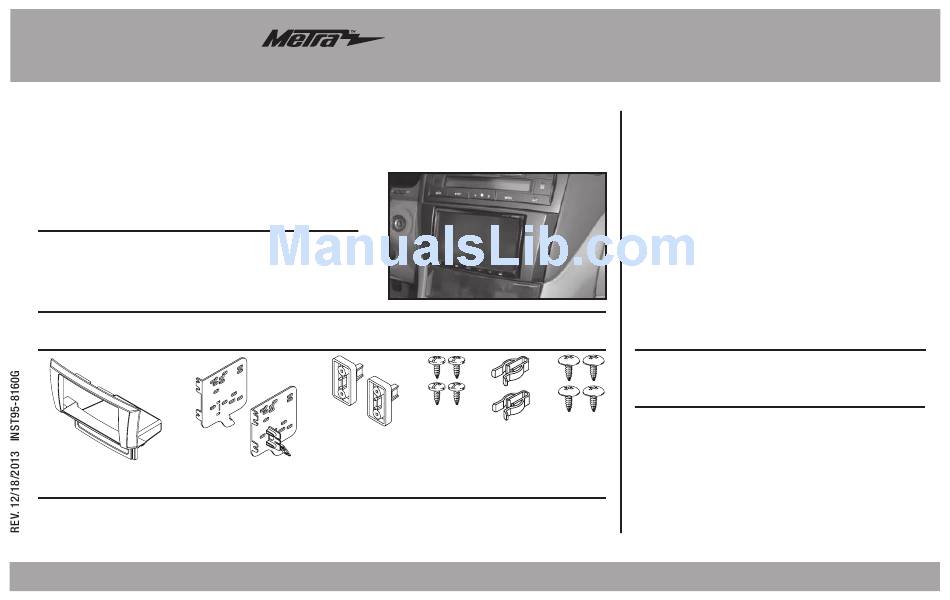

INSTALLATION INSTRUCTIONS FOR PART 95-8160G
Lexus LS430 2001-2006
KIT FEATURES
• Double DIN radio provision
• Painted gray to match factory color and finish
KIT COMPONENTS
• A) Radio Housing • B) Brackets • C) Panel Clip brackets (2) • D) Panel clip bracket screws (4) #4 x 3/8"
• E) Panel clips (2) • F) (4) #8 x 3/8" truss-head Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • TYTO-01 Axxess Interface
Antenna Adapter: • 40-LX11 antenna adapter and 44-EC204 antenna extension
METRA. The World's best kits.
APPLICATIONS
(without factory NAV)
95-8160G
C
D
™
1-800-221-0932
Dash Disassembly
– Lexus LS430 2001-2006 ..................................... 2
Kit Assembly
– Double DIN radio provision ................................... 3
TOOLS REQUIRED
E
F
• Panel removal tool • Phillips screwdriver
• Socket Wrench
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
metraonline.com
